Martin D12BTB22

B00452UW7A

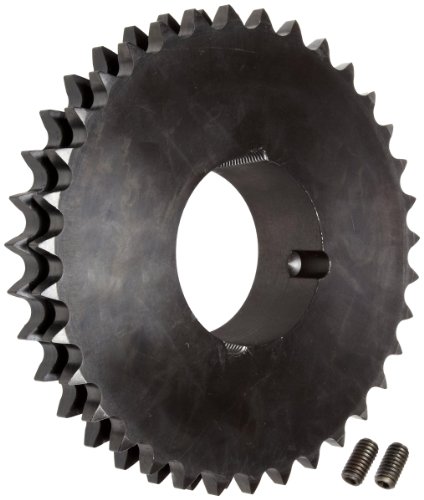

Martin Roller Chain Sprocket, Taper Bushed, Type B Hub, Double Strand, 12B Chain Size, For 2517 Bushing, 19.05mm Pitch, 22 Teeth, 63.5mm Max Bore Dia., 143.93mm OD, 107.95mm Hub Dia., 30.33mm Width

Martin Roller Chain Sprocket, Taper Bushed, Type B Hub, Double Strand, 12B Chain Size, For 2517 Bushing, 19.05mm Pitch, 22 Teeth, 63.5mm Max Bore Dia., 143.93mm OD, 107.95mm Hub Dia., 30.33mm Widthzoom

Attributes

Key Value
Bore Dia. - Sprockets4.7950056374992
bore diameter:12.70 mm
Bore TypeBushed
bore type:Bushed
bushing bore range:1/2 to 2-1/2 in
bushing size:2517
bushing type:Taper Lock Bushing
Caliper Diameter121.79314319248
caliper diameter:121.8 mm
chain / sprocket type:Metric Roller Chain
chain number & pitch:12B / 3/4 in
Chain Roller Dia.12.065
chain roller diameter:12 mm
chain roller width:12 mm
hardened teeth:Non-Hardened Teeth
Hub Dia.107.95
Hub Dia. (In.)4.25
hub outside diameter:108 mm
hub projection:14 mm
hub style:TB
hub type:B Hub
Length through Bore44.45
Length through Bore (In.1.75
length through bore:44.45 mm
manufacturer upc number:697950410517
MaterialSteel
material:Steel
maximum bore diameter:57.2 mm
Min. Bore12.7
number of hubs:1
Number of Rows2
number of strands acros.2
Number of Teeth22
Number Of Teeth22
number of teeth:22
Outside Dia145.610 mm
Outside Dia.30.3276
Outside Dia. (In.)1.194
outside diameter:145.6 mm
Pitch19.05, 19.050 mm
Pitch Dia.0.75
Pitch Dia. (In.)5.2700056374992
Pitch Diameter133.860 mm
pitch diameter:133.9 mm
pitch type:Single
Roller Width11.68
Sprocket Hub TypeTB
storage dimension heigh.1.75 mm
storage dimension lengt.5.75 mm
storage dimension width:5.75 mm
Storage Height1.75
Storage Length5.7450056374992
Storage Width5.7450056374992
surface treatment:Protective Coating
tooth thickness:11 mm
tooth width:30 mm
TypeMetric Roller Chain
Weight4.51
weight:4.51 lbs
width across tooth sets:1.194 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomapexindustrialautomation.comD12BTB22162.9311Martin Sprocket162.93 @ 1
thumbzoommotionindustries.com02301412164.221In StockMartin164.22 @ 1
thumbzoomZoroG2442751235.321In Stock14Martin Sprocket & Gear4.51235.32 @ 1
thumbzoomcbtcompany.comD12BTB22243.741In StockMartin Sprocket & Gear243.74 @ 1
thumbzoomMRO Supply256144244.791In StockMartin Sprocket244.79 @ 1
thumbzoomPurvisD12BTB22271.781In StockMartin271.78 @ 1
