MEAN WELL MPD-65B

B00XAPAY6W

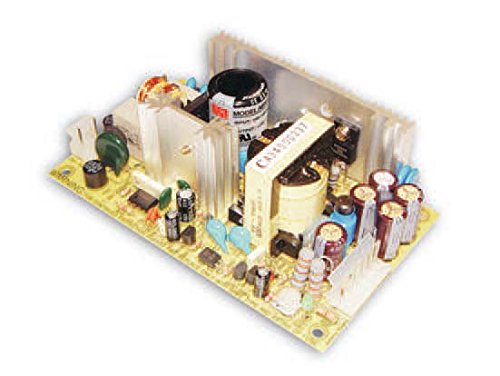

MPD-65B Mean Well Power Supply

MPD-65B Mean Well Power Supplyzoom

Attributes

Key Value
AC inrush currentCold start 20A
ConfigurationOpen Frame
Dimension (LxWxH)127x76x42
Dimensions127 x 76 x 42 mm
EMC EmissionCompliance to EN55011 (.
EMC ImmunityCompliance to EN61000-4.
EMC standardsEN55032 class B, EN6100.
Industry Aliasesnew
Input Voltage90 ~ 264 VAC Universal
Isolation ResistanceI/P - O/P, I/P-FG, O/P-.
MTBF291.3K hrs min. MIL-HDB.
Number of Outputs2
Output Rated Current3.5A and 2A
Output Voltage5V, 24V
Overload protectionAbove 119% rated output.
Primary TypeAC-DC
SeriesMPD Series
Setup, rise, hold up ti.800ms, 20ms, 60ms
TypeMedical
Vibration10~500Hz, 2G 10min./1cy.
Wattage65
Withstand VoltageI/P - O/P : 4KVAC-----I.
Working temperature-10~+60?C

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comMPD-65B24.7117MEAN WELL24.71 @ 1
Future Electronics888866132.77254In StockMEAN WELL32.772 @ 54
thumbzoompeaktopeakpower.comMPD-65B38.361In StockMean Well38.36 @ 1
AmazonTPB07M6M1FCX38.841In Stock1Mean Well USA38.84 @ 1
AmazonSCB07M6M1FCX38.851In StockMean Well USA38.85 @ 1
thumbzoompowersupplymall.comMPD-65B47.26115Mean Well47.26 @ 1
us.rs-online.com7023502853.162003MEAN WELL53.16 @ 200
thumbzoomRadwellMPD-65B60.01In StockMEAN WELL60.0 @ 1
