MEAN WELL PLM-40-700

B00LS9LUWO

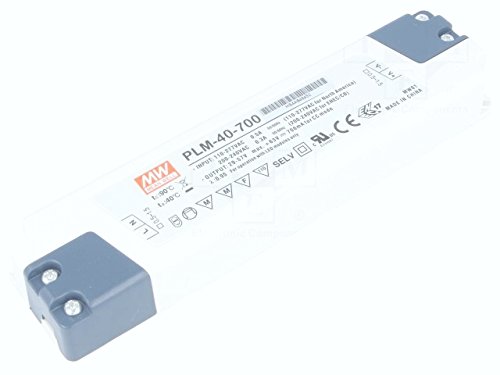

MEAN WELL PLM-40-700 PLM-40 Series 40 W 700 mA 57 Vdc Out Max AC Dimmable LED Power Supply - 1 item(s)

MEAN WELL PLM-40-700 PLM-40 Series 40 W 700 mA 57 Vdc Out Max AC Dimmable LED Power Supply - 1 item(s)zoom

Attributes

Key Value
Alternate Part No.709-PLM40-700
BrandMean Well
Commercial/MedicalCommercial
ConfigurationEnclosed
Dimension175 x 42 x 24mm (LxWxH)
Dimensions175 x 42 x 24mm, 175 mm.
EMC EMISSIONCompliance to EN55015, .
EMC IMMUNITYCompliance to EN61000-4.
Industry Aliasesnew
Input Voltage115 VAC ; 120 VAC ; 127.
Input Voltage Range110-295 VAC
Inrush Current (Typ.)Cold Start 15A (twidth=.
Isolation ResistanceI/P - O/P, 100M Ohms / .
Leakage Current0.5mA / 240VAC
ManufacturerMean Well
Manufacturer Part No.PLM-40-700
Mounting TypePanel Mount
Number of Outputs1
Open Frame/EnclosedEnclosed
OperationSwitching
Operation ModeConstant Current (CC)
Output Current0.7 A
Output Current-Channel 1700 mA
Output Power39.9 W
Output Power Rating38.5 W
Output Rated Current700mA
Output Voltage63V, 57 VDC
Output Voltage-Channel 129 V to 57 V
Over Temperature115?C?5?C (TSW1)
Primary TypeAC-DC
ProductSwitching Supplies
SeriesPLM-40, PLM-40 Series
Short CircuitHiccup mode, recovers a.
Special FeaturesConstant Current Operat.
Storage Temp., Humidity-40 ~ +80?C, 10 ~ 95% RH
Temp. Coefficient?0.03%/?C (0 ~ 50?C)
TypeLED Driver
Vibration10 ~ 500Hz, 2G 10min. /.
Wattage40
Withstand VoltageI/P - O/P : 3.75KVAC
Working Humidity20 ~ 95% RH non-condens.
Working Temp.-30 ~ +45?C (Refer to ".

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comPLM-40-70014.41184MEAN WELL14.4 @ 1
thumbzoompeaktopeakpower.comPLM-40-70014.41In StockMean Well14.4 @ 1
electricautomationnetwork.comPLM-40-70019.111In StockMEANWELL19.11 @ 1
AmazonTPB00LS9LUWO19.191In Stock2MEAN WELL19.19 @ 1
Future Electronics904070820.3521In StockMEAN WELL20.352 @ 1
us.rs-online.com7037736821.1611MEAN WELL21.16 @ 1
AmazonSCB00MEICCMU25.681In StockMean Well25.68 @ 1
thumbzoomswatee.comPLM-40-70038.1519Mean Well38.15 @ 1
