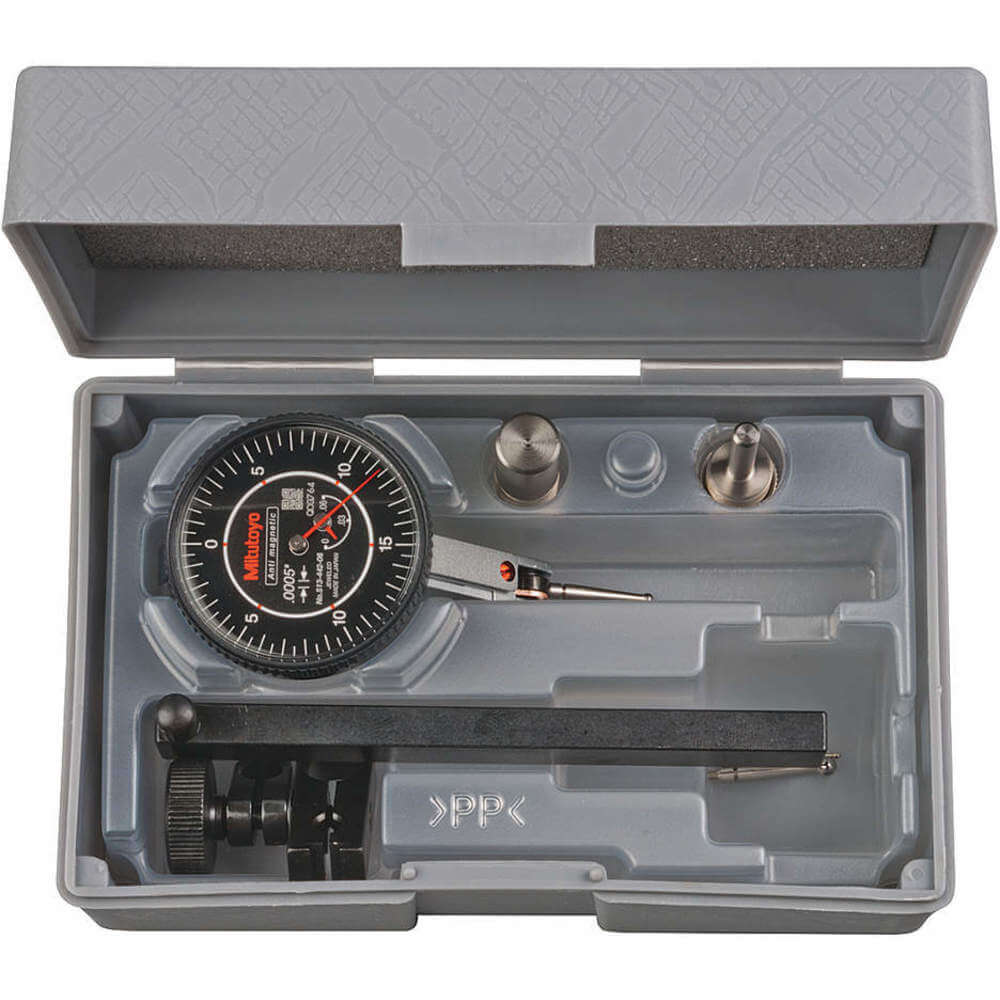

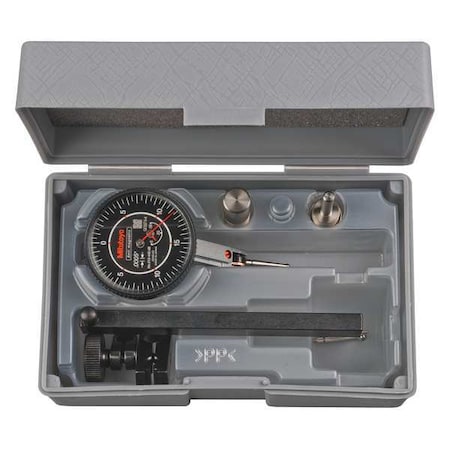

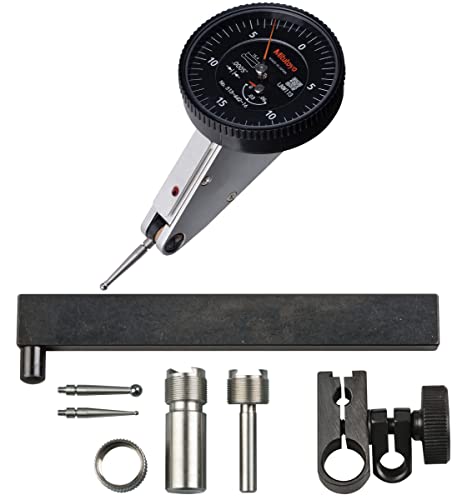

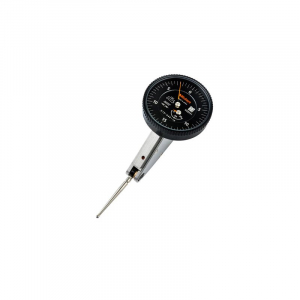

Mitutoyo 513-442-16T

B073H67VBM

Dial Test Indicator,Hori,0" to 0.060"

Dial Test Indicator,Hori,0" to 0.060"zoom

Attributes

Key Value
Accuracy+/-0.0005 in, ?.0005"
accuracy0.0005"
Bearing TypeJeweled
BrandMitutoyo
Contact Point Dia.0.039 in, 0.118 in
Contact point length0.65"
Contact Point MaterialCarbide
Contact Point ShapeBall
Contact Point StyleCarbide
Current Stock3
DescriptionsBalanced Dial, Revoluti.
Dial ColorWhite, Black
Dial ColourWhite
Dial Reading0-15-0
Dial reading0-15-0
Dial Size40 mm
Dimension TypeInch
FeaturesSmooth Spindle Movement.
Full setYes
Graduation0.0005", .0005"
Graduations0.0005 in
Included CertificationInspection Certificate
Includes0.157 in Stems, Clamp a.
Includes Dovetail Mount.Yes
Indicator StyleHorizontal 20? Tilted F.
International ShippingNo
ItemTilted-Face Dial Test I.
Item Weight0.55 lbs per EA
Lead TimeExpected to ship in 1-2.
Long Form Calibration C.No
Max Range0.06"
Max. Measuring Force0.3 N
Maximum Measurement - I.0.06 in
Measurement TypeInch
Measuring Force0.3 or lessN
Min Range0"
Minimum Measurement - I.0 in
Model No513-442-16T
Model Number513-442-16T
Mounting StyleDovetail
Mpn513-442-16T
Non-Conductive TipNo
Non-Magnetic TipYes
Number of Indicators1
Operation TypeLever-Style
Point Diameter.079"
Point Length19.9mm
Range.06", 0 in to 0.06 in
Range per Revolution0.03 in
ReadingBalanced
resolution graduation0.0005"
SeriesMitutoyo 513 Tilted Face
SKUZO-G8907735
StandardsAGD
Stem Thread SizeM6
Stylus Length19.9 mm
SubCategoryMachining
Test Indicator StyleTilted Face
Total Range0.060"
UnitsInch
unspsc41111621
UPC603908220497

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG8907735191.99117Mitutoyo0.2191.99 @ 1
thumbzoomprimebuy.com513-442-16T200.61In StockMitutoyo200.6 @ 1
thumbzoomfreertool.comFTS-MT80513-442-16T203.51In StockMitutoyo203.5 @ 1
thumbzoomNational Supply Network06385462208.511In StockMitutoyo208.51 @ 1
thumbzoomjensentools.com10139796226.01In StockMitutoyo226.0 @ 1
tmttoolbox.com513-442-16T226.01In Stockmitutoyo226.0 @ 1
thumbzoomKBC Tools1-808-513442T06226.01In StockMITUTOYO0.55226.0 @ 1
thumbzoomsimsupply.comZO-G8907735227.313Mitutoyo227.3 @ 1
Newark12AC5343235.01In StockMITUTOYO235.0 @ 1
Grainger33RK32240.51140MITUTOYO240.5 @ 1
grainger.caWWG33RK32243.892590181In StockMITUTOYO0.2243.89259018 @ 1
thumbzoombscsource.com51344216T261.591In StockMitutoyo261.59 @ 1
thumbzoomRaptor SuppliesAH3XNB303.01414651In StockMITUTOYO303.0141465 @ 1
