Omron ZE-Q21-2

B008L5SUT4

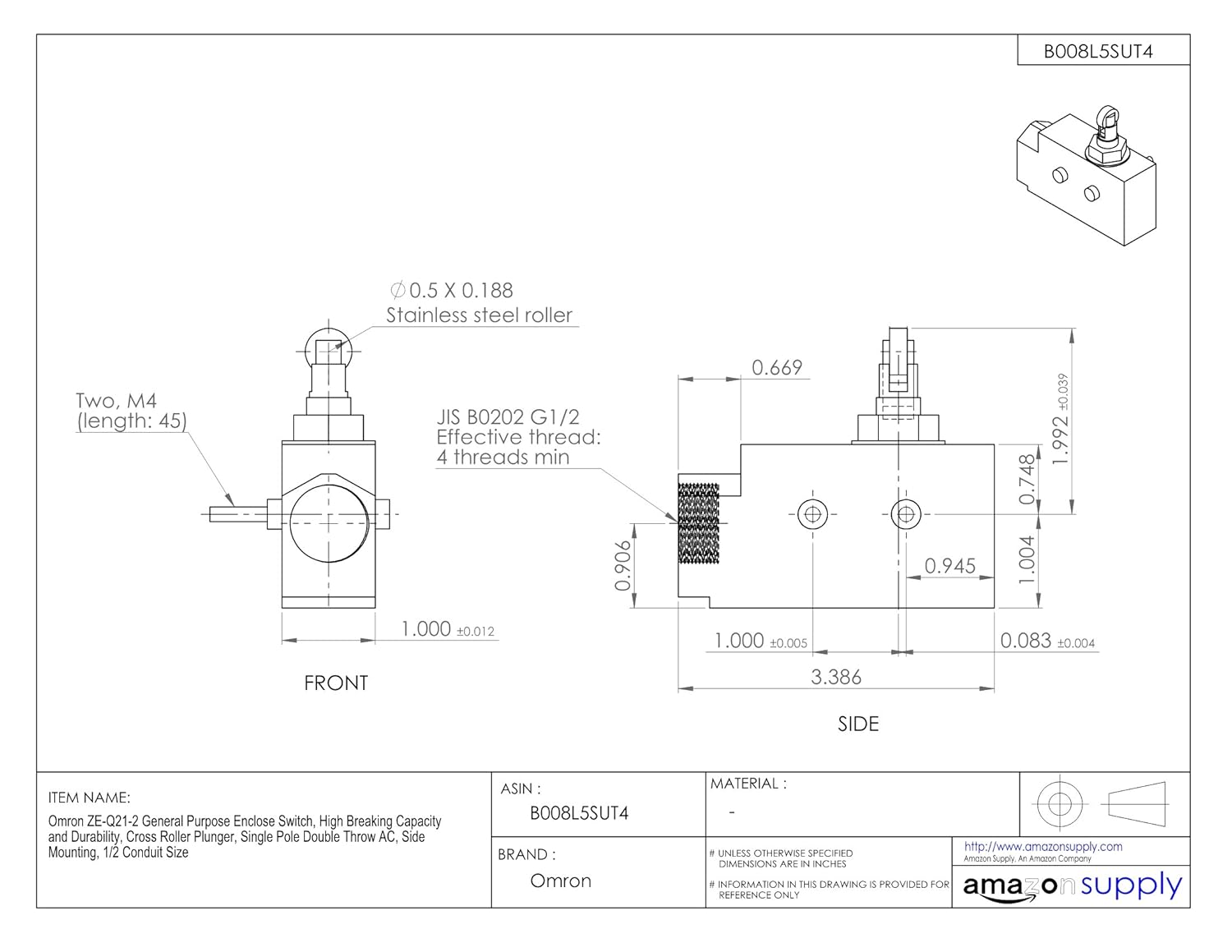

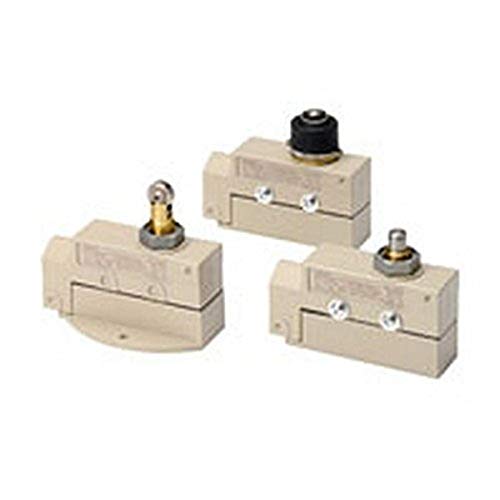

Omron ZE-Q21-2 General Purpose Enclose Switch, High Breaking Capacity and Durability, Cross Roller Plunger, Single Pole Double Throw AC, Side Mounting, 1/2 Conduit Size

Omron ZE-Q21-2 General Purpose Enclose Switch, High Breaking Capacity and Durability, Cross Roller Plunger, Single Pole Double Throw AC, Side Mounting, 1/2 Conduit Sizezoom

Attributes

Key Value
Acquired StandardsUL / GB (CCC) / CSA
Actuator TypeCross Roller Plunger
Alternate Mfr Part Numb.ZEQ212
Base Product NumberZE-Q21
CategorySwitches
CircuitSPDT
Current Rating (Amps)15A (AC), 500mA (DC)
DescriptionSWITCH SNAP ACTION SPDT.
Detailed DescriptionSwitch SPDT Chassis Mou.
Differential Travel0.002" (0.05mm)
Digi-Key Part NumberZ10663-ND
Electrical Life500,000 Cycles
Features-
Ingress ProtectionIP60 - Dust Tight
Main Body External Dime.44.5
Main Body SizeStandard
ManufacturerOmron Automation and Sa.
Manufacturer Product Nu.ZE-Q21-2
Manufacturer Standard L.11 Weeks
Mechanical Life10,000,000 Cycles
Mechanical Operation Fr.120
MfrOmron Automation and Sa.
Mounting TypeChassis Mount
Operating Force250 ~ 350gf
Operating Position1.957" (49.7mm)
Operating Temperature-10?C ~ 80?C
Overtravel0.141" (3.6mm)
PackageBulk
Pretravel0.020" (0.5mm)
Product StatusActive
Release Force114gf
SeriesZE
Switch FunctionOn-Mom
Termination StyleScrew Terminal
Voltage Rating - AC125 V
Voltage Rating - DC125 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomAmazonB008L5SUT416.021In StockOmron16.02 @ 1
thumbzoomMisumi USAZE-Q21-249.01In Stock15OMRON49.0 @ 1
thumbzoomDigi-Key1843346100.411Omron Automation and Safety100.4 @ 1
us.rs-online.com71152647110.8812Omron Automation110.88 @ 1
