Omron MJN2CFAC120

B0105J2YTA

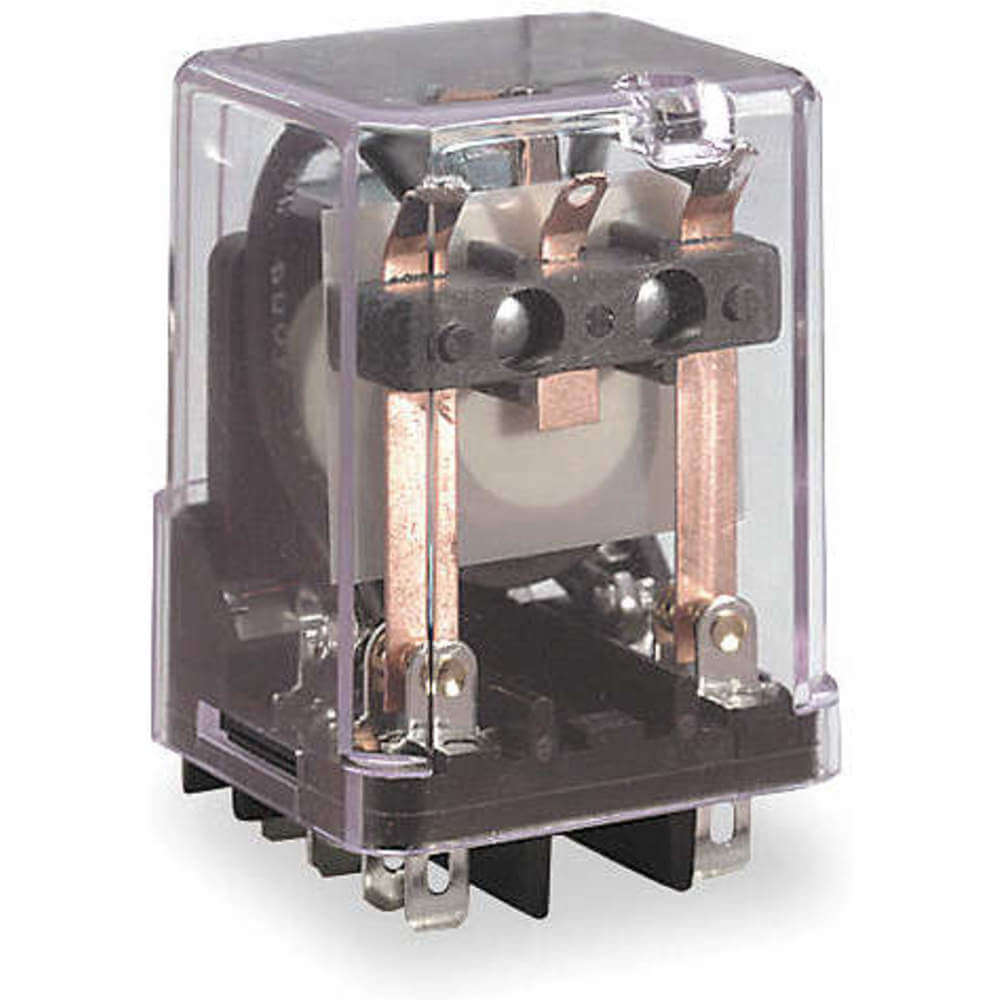

Omron Industrial MJN2CFAC120 Medium Power Relays (3 Amps to 19.9 Amps)

Omron Industrial MJN2CFAC120 Medium Power Relays (3 Amps to 19.9 Amps)zoom

Attributes

Key Value
AC Contact Rating - Rel.10A @ 240V
Alternate Mfr Part Numb.MJN2CFAC120
Alternate Part No.653-MJN2CF-AC1
Body Depth1.9 in
Body Depth - Relay1.4 in
Body Height1.52 in
Body Height - Relay1.9 in
Body Width1.4 in
Body Width - Relay1.53 in
BrandOmron Automation and Sa.
Coil Current1.7 A
Coil Resistance2250 Ohms, 50 mOhms
Coil TerminationQuick Connect Terminal
Coil TypeNon-Latching
Coil Voltage120 VAC ; 110/115/120/1.
Coil Volts120V AC
Contact Current Rating10 A
Contact FormDPDT, DPDT (2 Form C)
Contact Form - RelayDPDT
Contact Material3?16 in. Dia. Ag-Alloy,.
Contact Rating10A @ 240VAC/28VDC
Contact TerminationPlug
Contact Voltage Rating300 VAC
Control Voltage120
Current Rating10 A
DC Contact Rating - Rel.10A @ 28V
Dielectric Rating750 VAC
FeaturesGeneral Purpose Relays,.
FunctionGeneral Purpose
HP @ 120V1/3 hp
HP @ 240V1/2 hp
ItemFlange Mount Relay
Item - RelayFlange Mount Relay
Length38.73 mm
ManufacturerOmron
Manufacturer Part No.MJN2CF-AC120
Maximum Operating Tempe.60 ?C
Minimum Operating Tempe.-45 ?C
Mounting - RelaySide Flange
Mounting StyleSocket
Mounting TypePanel Mount
Number of Pins - Relay8
Overall Depth2.9 in
Overall Height - Relay2.9 in
Power Consumption1.7 VA
Power Consumption - Rel.1.7 VA
Power Rating2400 VA ; 280 W
Primary TypePower Relays
ProductPower Relays
Product CategoryGeneral Purpose Relays
Relay TypeElectromechanical
SeriesMJN, MJN Series
StandardsUL ; CSA
Status IndicatorNone
TerminationQC Tabs
Termination StyleQuick Connect Terminal
TypeStandard
Voltage Rating240 V
Width48.38 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomswatee.comMJN2CF-AC12015.314Omron15.3 @ 1
Onlinecomponents.comMJN2CFAC12016.21358OMRON INDUSTRIAL16.2 @ 1
thumbzoomZoroG309171519.191In StockOmron0.119.19 @ 1
AmazonTPB00DWIGZWE23.491In Stock2Omron23.49 @ 1
thumbzoomsustainablesupply.comC120765228.371In StockOmron0.128.37 @ 1
us.rs-online.com7017888628.7214Omron Automation28.72 @ 1
Airline HydraulicsOMRON MJN2CF-AC12035.021In StockOmron35.02 @ 1
thumbzoomRaptor SuppliesAE7MMN44.8727761In StockOMRON44.872776 @ 1
Master ElectronicsMJN2CFAC12048.18157Omron Automation48.18 @ 1
