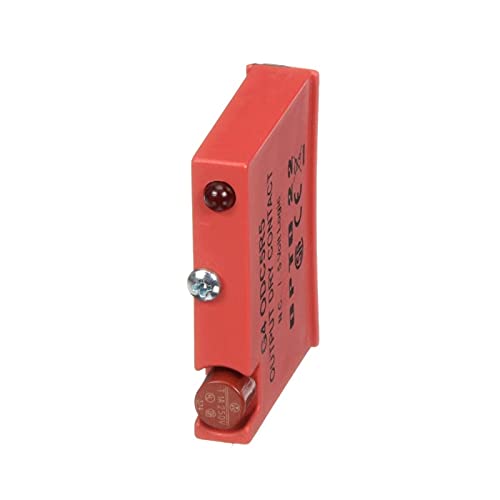

Opto 22 G4ODC5R5

mpnG4ODC5R5
brandname: Opto 22
manufacturername: Opto 22

Opto 22 G4ODC5R5 (6PACK) 40007012595

Opto 22 G4ODC5R5 (6PACK) 40007012595

zoom

Brand: Opto 22
PartNumber: G4ODC5R5
Model: G4ODC5R5
PackageQuantity: 6
Manufacturer: OPTO 22
Label: OPTO 22

Attributes

Key	Value
Application	Data Acquisition ; Ener.
Color	Orange
Connection to Host	Backplane
Contact Form	Reed
Depth	0.157 in
Dimensions	48.8 x 12.2 x 41.1 mm
Family Series	Opto 22 I/O Modules, G4.
For Use With	SNAP PAC System
Gross Weight	0.065 lbs
Input Current	14 mA
Input Resistance	200 Milliohms (Contact)
Isolation Voltage	1500 VDC
Item Number	G4ODC5R5
Length	1.921 in
Manufacturer	Opto 22
Manufacturer Part Number	G4ODC5R5
Maximum Operating Tempe.	70 ?C
Minimum Operating Tempe.	-30 ?C
Module Type	DC Output
Mounting Type	5 Pin I/O Mounting Board
Net Weight	0.065 lbs
Number of Channels	1
Number of IO Ports	1
Operating Temperature	-30 to +70 ?C
Operating Voltage	0 to 130 V
Output	100 VDC
Output Type	Digital
Primary Type	Data Acquisition
Product Header	G4 Digital Dry Contact .
Product Series	G4
Range Output	100 VDC
Series	G4 Series
Special Features	Mechanical Life of 5 Mi.
Standards	CE Approved
Supply Voltage	5 VDC
Temperature Operating R.	-30 to +70 ?C
Turn Off Time	500 ?S
Turn On Time	500 ?S
Turn-Off Time	0.0005 s
Turn-On Time	0.0005 s
Type	Output
Width	0 in
