Panasonic Industrial Devices EEE-TG1K330UP

mpnEEE-TG1K330UP
brandname: Panasonic Electronic Components
manufacturername: Panasonic Electronic Components

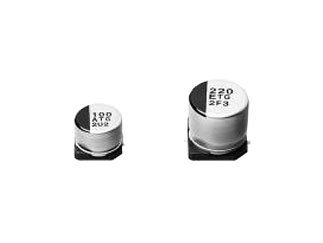

PANASONIC INDUSTRIAL DEVICES EEE-TG1K330UP TG-V Series 80V 33 uF 125?C 2 KHrs 8x10.2 mm SMT Aluminum Electrolytic Capacitor - 500 item(s)

PANASONIC INDUSTRIAL DEVICES EEE-TG1K330UP TG-V Series 80V 33 uF 125?C 2 KHrs 8x10.2 mm SMT Aluminum Electrolytic Capacitor - 500 item(s)

zoom

Brand: Panasonic Industrial Devices
PartNumber: EEE-TG1K330UP
Model: EEE-TG1K330UP
PackageQuantity: 1
Manufacturer: PANASONIC INDUSTRIAL DEVICES
Label: PANASONIC INDUSTRIAL DEVICES

Attributes

Key	Value
Alternate Part No.	667-EEE-TG1K330UP
Applications	Automotive
Base Product Number	EEE-TG
Body dimensions	?8x10.2mm
Brand	PANASONIC
Capacitance	33?F, 33 ?F, 33 uF
Capacitors series	TG
Case Diameter	8 mm
Case Height	10 mm
Case Length	10.5 mm
Category	Capacitors
Dissipation Factor DF	0.12
ESR	1.3 Ohms
ESR (Equivalent Series .	1.3Ohm @ 100kHz
Height - Seated (Max)	0.402" (10.20mm)
Impedance	1.3?
Lead Spacing	-
Lifetime @ Temp.	2000 Hrs @ 125?C
Load Life	2000 h
Manufacturer	PANASONIC
Manufacturer Part No.	EEE-TG1K330UP
Maximum Operating Tempe.	+ 125 C
Mfr	Panasonic Electronic Co.
Minimum Operating Tempe.	- 40 C
Mounting	SMD
Mounting Type	Surface Mount
Operating current	70mA
Operating Temperature	-40?C ~ 125?C
Operating temperature	-40...125?C
Operating voltage	80V DC
Package	Tape & Reel (TR)
Package / Case	Radial, Can - SMD
Packaging	Reel
Polarization	Polar
Product	Low ESR Electrolytic Ca.
Product Category	Aluminium Electrolytic .
Product Status	Active
Ratings	AEC-Q200
Ripple Current	70 mA
Ripple Current @ High F.	70 mA @ 100 kHz
Ripple Current @ Low Fr.	45.5 mA @ 120 Hz
Series	TG
Service life	2000h
Size / Dimension	0.315" Dia (8.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8..
Termination Style	SMD/SMT
Tolerance	?20%, 20 %
Type	SMT Aluminum Electrolyt.
Type of capacitor	electrolytic
Voltage - Rated	80 V
Voltage Rating DC	80 V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Onlinecomponents.com	EEE-TG1K330UP	0.26	1	1000		PANASONIC		0.26 @ 500
	Allied Electronics	E4303522	0.3954545	1000	500		Panasonic		0.3954545 @ 1000
	Newark	01X1033	0.399	500	500		PANASONIC		0.399 @ 500
	TME	EEETG1K330UP	0.501	500	500		PANASONIC		0.501 @ 500
	Digi-Key	1838774	0.51008	1	500		Panasonic Electronic Components		0.51008 @ 500
	swatee.com	EEE-TG1K330UP	1.97	1	500		Panasonic		1.97 @ 500
