- mpnLCAF8-14-L
- brandname: Panduit
- manufacturername: Panduit

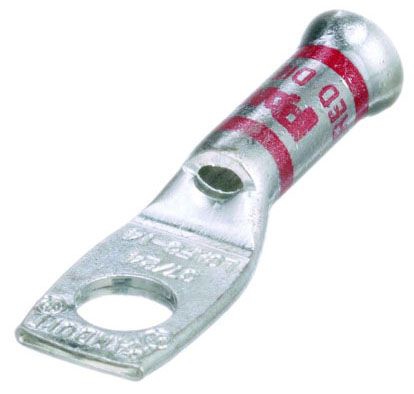

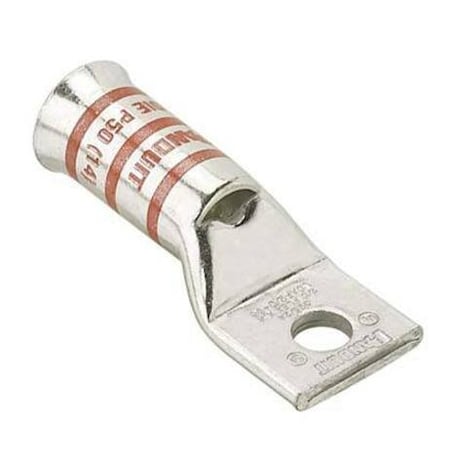

Panduit LCAF8-14-L Copper Compression Lug, 1 Hole, #8 AWG, Flared Barrel, 1/4-Inch Stud
- Brand: Panduit
- PartNumber: LCAF8-14-L
- Model: LCAF8-14-L
- Color: Red
- Size: Conductor Size/Range 1 #6 AWG Class K, M & DLO Flex Wire ,1.54 inches Item leng.
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 8 |
| Alternate Part No. | 644-LCAF8-14-L |
| Approvals | CSA, UL |
| Base Product Number | LCAF |
| Brand | Panduit |
| Cable Size | 8 AWG |
| Catalog Number | LCAF8-14-L |
| Category | Connectors, Interconnec. |
| Color | Red |
| Color Code | Red |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Connector Type | Flared Barrel |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Country of Origin | Mexico |
| Country of Origin (subj. | Mexico |
| Description | CONN TERM RECT TONG 8 A. |
| Detailed Description | Terminal Connector Rect. |
| Diameter - Barrel ID | 0.180" (4.57mm) |
| Diameter - Barrel OD | 0.320" (8.13mm) |
| Diameter - Ring ID | 0.270" (6.86mm) |
| Digi-Key Part Number | 298-14704-ND |
| Family Series | Panduit Terminals, Pan-. |
| Features | - |
| Gender | Female |
| Gross Weight | 0.835 lbs |
| GTIN | 00074983557097 |
| Insulation | Non-Insulated |
| Item | Lug Compression Connect. |
| Item Number | LCAF8-14-L |
| Item Type | Copper Compression Conn. |
| Length | 1.54" |
| Length - Overall | 1.540" (39.12mm) |
| Made in USA | No |
| Manufacturer | Panduit Corp, Panduit |
| Manufacturer Part No. | LCAF8-14-L |
| Manufacturer Part Number | LCAF8-14-L |
| Manufacturer Product Nu. | LCAF8-14-L |
| Manufacturer Standard L. | 7 Weeks |
| Material | Copper, Tin-Plated Copp. |
| Material/Composition | Copper |
| Max Conductor Range | 8 AWG |
| Mfr | Panduit Corp |
| Min Conductor Range | 8 AWG |
| Mounting | 1-Hole |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Number of Conductors | 1 |
| Number of Holes | 1 |
| Package | Bulk |
| Product | Lug Terminals |
| Product Category | Terminals |
| Product Series | Pan-Lug Compression |
| Product Status | Active |
| RoHS Compliant | Yes |
| Series | Pan-Lug?, LCAF |
| Size | #8 AWG DLO |
| Special Features | Consult cable manufactu. |
| Stud Size | 42.826, 1/4 in |
| Stud/Tab Size | 1/4 Stud, 1/4 in |
| Sub Brand | Pan-Lug |
| Tab Thickness | 0.070" (1.78mm) |
| Terminal Style | Single Stud Hole |
| Terminal Type | Rectangular Tongue |
| Termination | Crimp, Barrel |
| Termination Style | Solder Lug |
| Unit Weight | 378.750 g |
| UPC | 074983557097 |
| Width | 0.48" |
| Width - Outer Edges | 0.480" (12.19mm) |
| Wire Gauge | 8, 8 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | cbtcompany.com | LCAF8-14-L | 1.4 | 1 | 71 | | PANDUIT | | 1.4 @ 1 |
 | Digi-Key | 4564640 | 2.53 | 1 | 50 | | Panduit Corp | | 2.53 @ 1 |
| Onlinecomponents.com | LCAF8-14-L | 2.57 | 1 | 71 | | Panduit | | 2.57 @ 1 |
 | alldataresource.com | 600773 | 2.67 | 1 | 71 | | Panduit | | 2.67 @ 1 |
 | Newark | 52AH0735 | 2.71 | 1 | 36 | | PANDUIT | | 2.71 @ 1 |
 | Zoro | G0772821 | 3.04 | 3 | 71 | 58 | Panduit | 0.84 | 3.04 @ 3 |
 | Galco | LCAF8-14-L-PNDT | 3.11 | 50 | 36 | | Panduit | 0.835 | 3.11 @ 50 |
 | Platt.com | 0684273 | 3.32 | 1 | 71 | | Panduit | | 3.32 @ 1 |
 | crescentelectric.com | 307622 | 3.55 | 1 | 91 | | Panduit | | 3.55 @ 1 |
| Airline Hydraulics | PANDUIT LCAF8-14-L | 3.76 | 1 | 71 | | Panduit Corp | | 3.76 @ 1 |
 | swatee.com | LCAF8-14-L | 4.66 | 1 | 6 | | Panduit | | 4.66 @ 1 |
 | Carlton Bates Company | 07498355709 | 133.5 | 1 | 71 | | PANDUIT | | 133.5 @ 1 |
 | gordonelectricsupply.com | LCAF8-14-L | 165.0 | 1 | 71 | 12 | PANDUIT | | 165.0 @ 1 |
 | turtle.com | PAN LCAF8-14-L | 367.52 | 1 | 71 | | Panduit | | 367.52 @ 1 |
