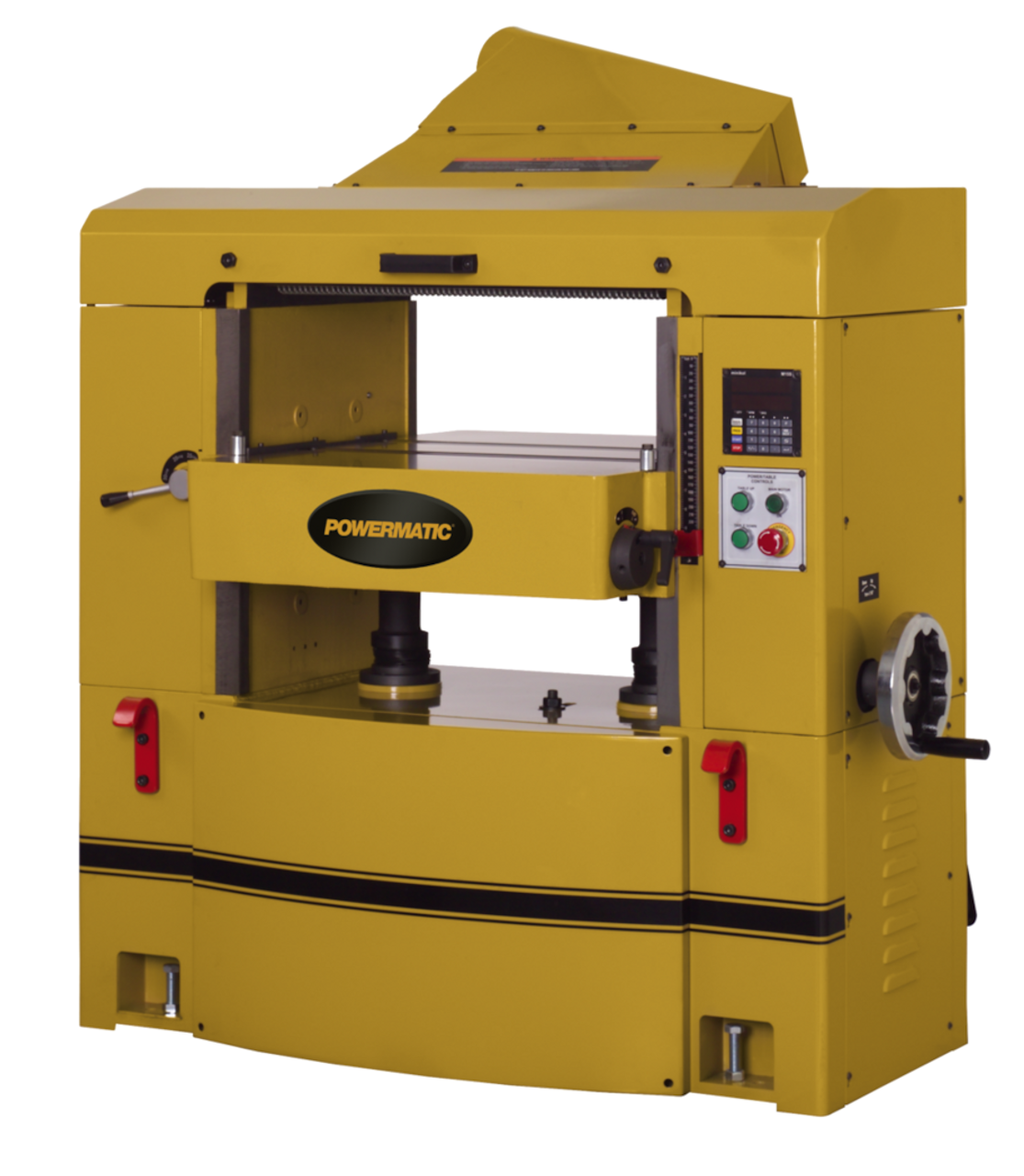

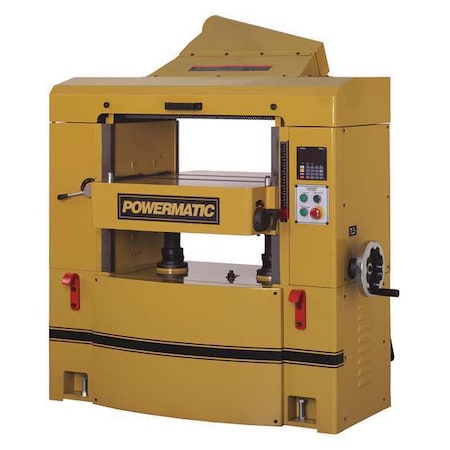

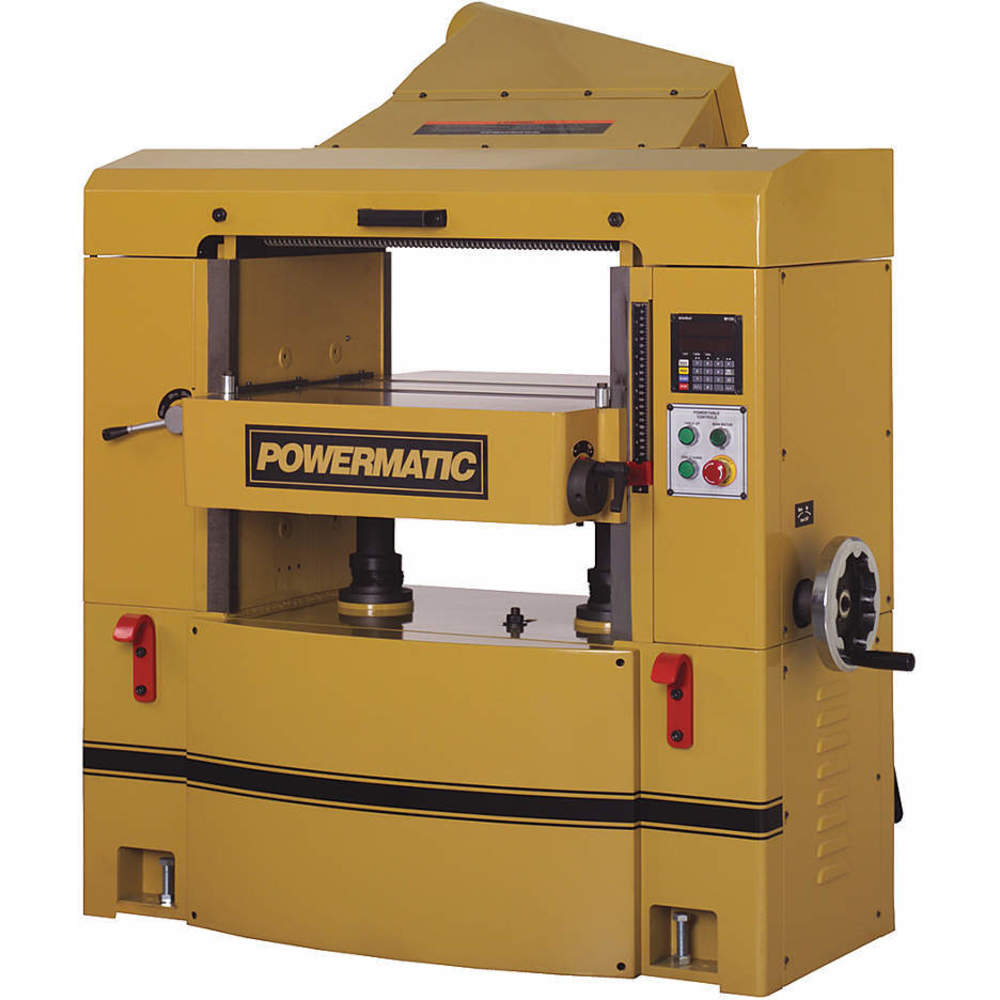

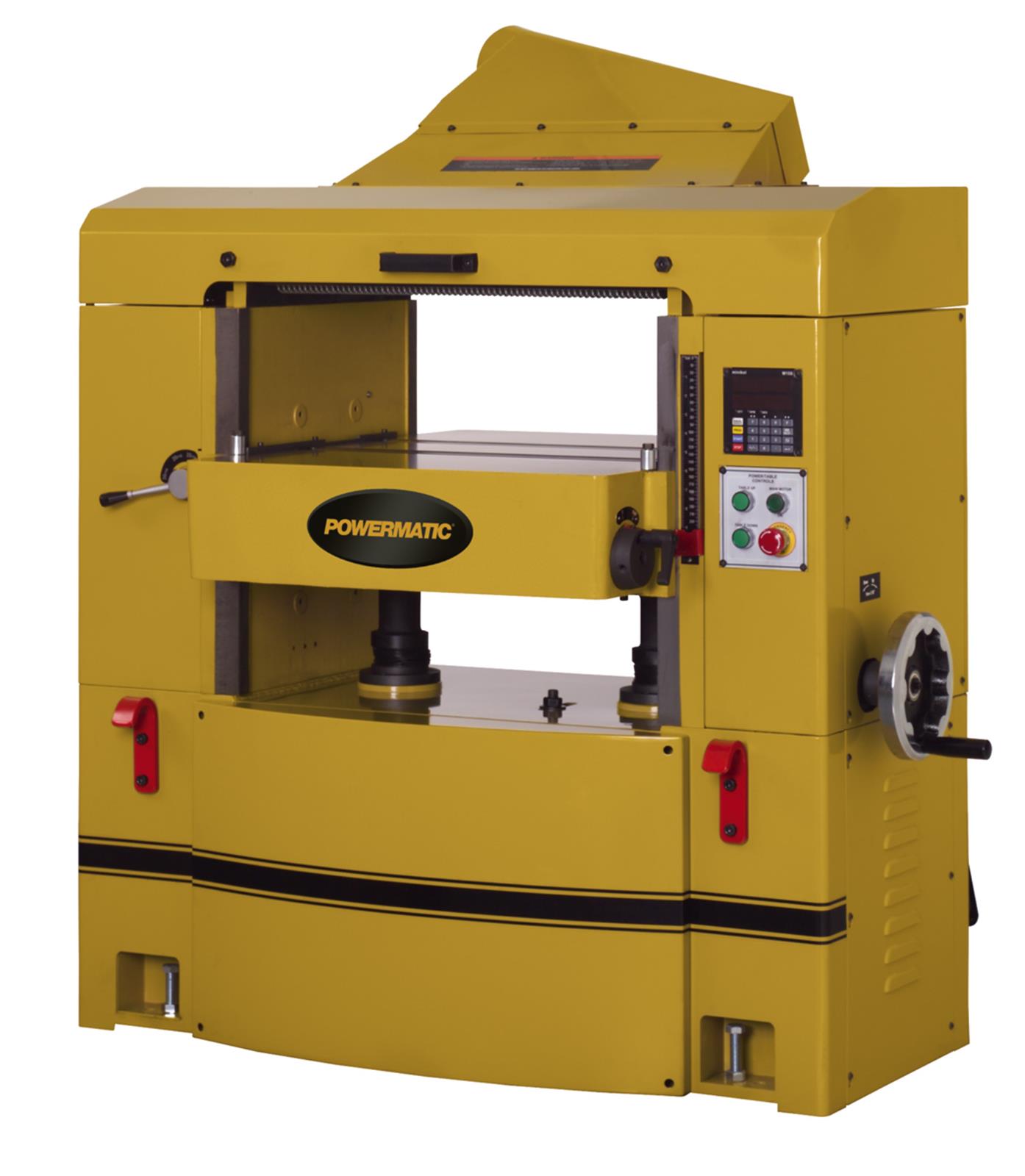

Powermatic WP2510, 25-Inch Planer, Helical Head, 15HP, 3Ph 230/460V (1791303)

Powermatic WP2510, 25-Inch Planer, Helical Head, 15HP, 3Ph 230/460V (1791303)zoom

Attributes

Key Value
Amps18.5
Bed Rollers Adjustable .0 - 0.05
Blade Width25 in
BrandPowermatic
Column Diameter (In.)2-1/2
ConditionNew
ConstructionCast iron
Corded/CordlessCorded
Cuts Per Minute30,000
Cutter Diameter (in.)3.375 in.
Cutterhead Diameter (In.3-3/8
Cutterhead Speed (RPM)5,000
Cutting Thickness (In.)9 1/4 in
Cutting Width (In.)25 in
Depth of Cut (In.)1/4 in
Digital ReadoutInch / Metric
Dust Collection Minimum.600
Dust Port Diameter5 in
Dust Port Outside Diame.5
FeaturesDigital Readout, Helica.
Feed Rate (FPM)20, 25, 30
Head Diameter3 3/8 in
Horse Power (HP)15
Horsepower15 HP
ItemStationary Planer
ManufacturerPowermatic
Manufacturer's Part.1791303
Maximum Depth of Cut (I.1/4
Maximum Full Width Dept.1/8
Maximum Height of Rolle.0.05
Maximum Material Height9 in
Maximum Material Width25 in
Maximum Material Width .25.00 in.
Maximum Planer Depth of.1/8 in
Maximum Planing Thickne.9-1/4
Maximum Planing Width (.25
Minimum Material Thickn.9.00 in.
Minimum Planing Length .10
Model1791303
Motor HP15 HP
Motor Phase3, 3 Ph
Motor Power (HP)15
Motor Voltage (V.)230
Number of Knives174 Four-Sided Inserts
Outfeed Roller Diameter.3
Overall Depth42 in
Overall Depth (In.)54 in
Overall Height60 in
Overall Height (In.)62 in
Overall Width53 1/2 in
Overall Width (In.)35 in
Part TypeJointers and Planers
Planer Working Table Le.32.19 in.
Planer Working Table Wi.26.00 in.
Prewired Voltage (V.)230
Product LinePowermatic WP2510 20 in.
QuantitySold individually.
Segmented Infeed Roller.3
Speed5,000 RPM
Stationary typeFloor
Style (Type)Planer
Summit Racing Part Numb.PMC-1791303
Table Length32 3/16 in
Table Size (L x W) (In.)32-3/16 x 26
Table Support2 Column
Table Width26 in
UPC662755523427
Weight1,725 lbs.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
internationaltool.comPOW-179130318099.991In StockPowermatic18099.99 @ 1
thumbzoomSummit RacingPMC-179130318499.991In StockPowermatic1725.018499.99 @ 1
thumbzoomGlobal IndustrialWBB5793918499.991In StockPowermatic18499.99 @ 1
thumbzoombeavertools.comPM179130318499.991In StockPowermatic18499.99 @ 1
thumbzoomtoolfetch.com179130318499.991In StockPOWERMATIC18499.99 @ 1
thumbzoomJB ToolsJB-DS-WLT-179130318499.9915Powermatic18499.99 @ 1
thumbzoomburnstools.com179130318499.991In StockPowermatic18499.99 @ 1
Woodcraft83382318499.991In StockPowermatic18499.99 @ 1
thumbzoomAceToolJET-179130318499.991In StockPowermatic18499.99 @ 1
thumbzoomFactory Authorized OutletPWC-179130318499.991In StockPowermatic18499.99 @ 1
ToolUp.comPOWERMATIC 179130318499.991In StockPowermatic18499.99 @ 1
elitemetaltools.com177718499.991In StockPowermatic18499.99 @ 1
thumbzoomMRO Supply610610418499.991In StockPowermatic18499.99 @ 1
thumbzoomtoolsplus.comPOW179130318499.991In StockPowermatic18499.99 @ 1
thumbzoomrockler.com100244818499.991In StockPOWERMATIC1837.018499.99 @ 1
thumbzoomZoroG346286819049.991In StockPowermatic1760.019049.99 @ 1
motionindustries.com0584951519387.151In StockPowermatic19387.15 @ 1
thumbzoompaxtonpatterson.shop49-046420800.01In StockPowermatic20800.0 @ 1
thumbzoomsmithtoolsupply.comWMH-179130322728.61In StockPOWERMATIC22728.6 @ 1
thumbzoomRaptor SuppliesAH7KJY32321.86278751In StockPOWERMATIC32321.8627875 @ 1
