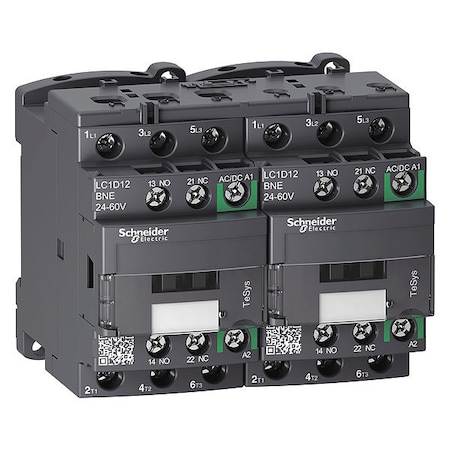

CAI - SCHNEIDER ELECTRIC LC2D12BNE

B07J9MKJ5B

Schneider Electric 24 to 60VAC/DC IEC Magnetic Contactor; No. of Poles 3, Reversing: Yes, 12 Full Load Amps-Inductive

Schneider Electric 24 to 60VAC/DC IEC Magnetic Contactor; No. of Poles 3, Reversing: Yes, 12 Full Load Amps-Inductivezoom

Attributes

Key Value
3-Phase HP Rating (Max.)10 hp
Aux. Contact Configurat.1NO/1NC
Coil Voltage24 - 60 Vac/dc
Coil Volts24 to 60 V AC/DC
Contact Operation3NO
Contactor TypeReversing
Country of Origin00 - Unknown
Depth3.38 in
ECCNEAR99
Enclosure NEMA RatingNo Enclosure
Frame / Series / Class .TeSys
Full Load Amps-Inductive12 A
Full Load Amps-Resistive25 A
Height3.03 in
HP @ 1 Phase - 120V1/2 hp
HP @ 1 Phase - 240V2 hp
HP @ 3 Phase - 208V3 hp
HP @ 3 Phase - 240V3 hp
HP @ 3 Phase - 480V7 1/2 hp
HP @ 3 Phase - 575V10 hp
Hz50/60
ItemIEC Magnetic Contactor
Max. Inductive Amps (AC.12A
Max. Resistive Amps (AC.25A
Number of Poles3
ReversingYes
SeriesTeSys D, LC2D
Single-Phase HP Rating .2 hp
StandardsCSA C22.2, EN 60947-4-1.
Switching Current5 mA (Signalling Circui.
Tightening Torque1.7 Nm
UNSPSC39121529
Width3.54 in
Working HeightUp to 9842.52 ft
