Schneider Electric LC2D25BL

B00CONH266

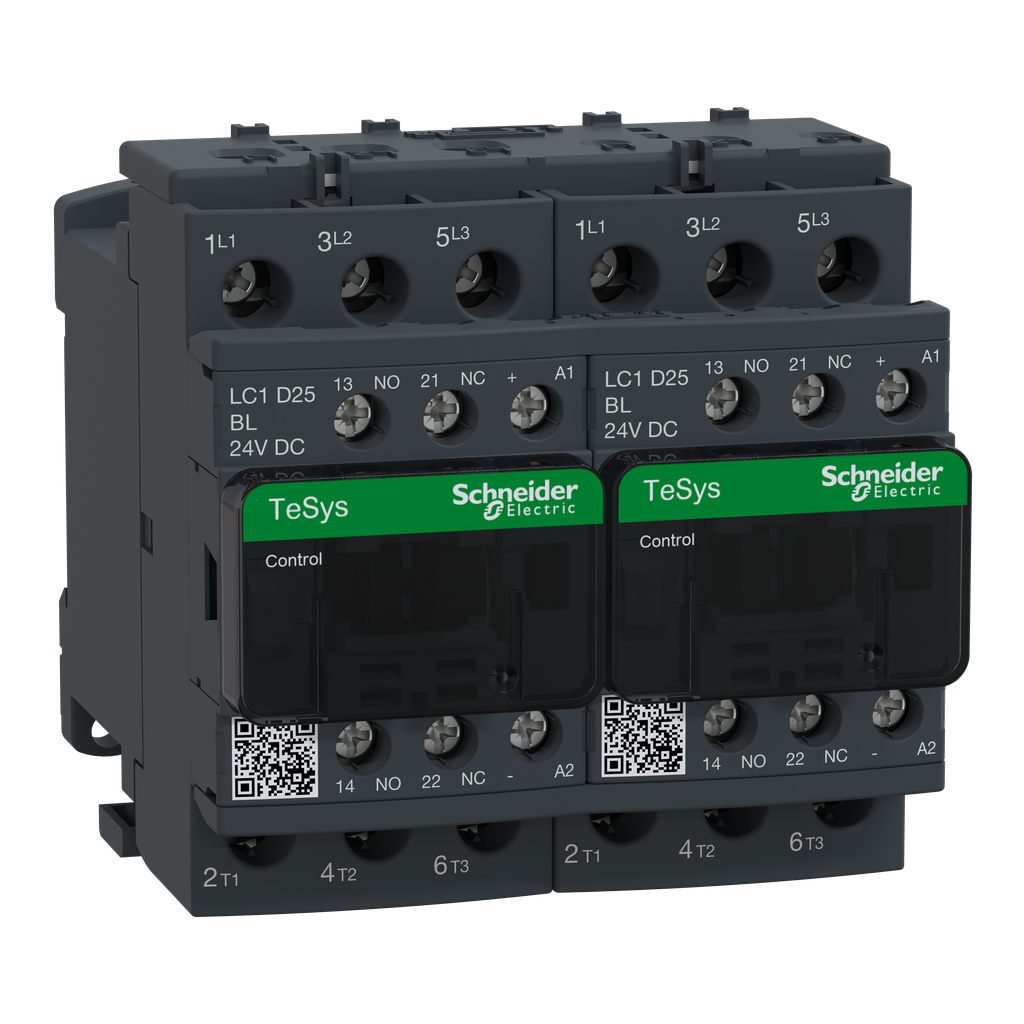

SCHNEIDER ELECTRIC Reversing Contactor 575-Vac 25-Amp Iec LC2D25BL Speeddrive 380-480Vac 25Hp,Atv212 Type12

SCHNEIDER ELECTRIC Reversing Contactor 575-Vac 25-Amp Iec LC2D25BL Speeddrive 380-480Vac 25Hp,Atv212 Type12zoom

Attributes

Key Value
[Icw] Rated Short-Time .50 A 40 ?C - 10 min pow.
[Ith] Conventional Free.10 A 60 ?C signalling c.
[Uc] Control Circuit Vo.24 V DC
[Ui] Rated Insulation V.power circuit 690 V IEC.
[Uimp] Rated Impulse Wi.6 kV IEC 60947
Ambient Air Temperature.-40-60 ?C || 60-70 ?C w.
Ambient Air Temperature.-60-80 ?C
ApplicationResistive load;motor co.
Auxiliary Contact Compo.1 NO + 1 NC
Auxiliary Contacts Typemechanically linked 1 N.
Average Impedance2 mOhm - Ith 40 A 50 Hz.
BrandSchneider Electric
California Proposition .Antimony oxide & Antimo.
Catalog NumberLC2D25BL
China Rohs RegulationPro-active China RoHS d.
Circularity ProfileENVEOLI1102029EN
Climatic WithstandIACS E10 || IEC 60947-1.
Coil Power Rating2.4 W, 2.4-2.4 W 20 A D.
Coil Technologybuilt-in bidirectional .
Coil Voltage24 V DC, 24 VDC
ConnectionCONTROL CIRCUIT SCREW C.
Connection typeScrew
Connections - Terminalscontrol circuit screw c.
Contact Configuration3NO, 1 NO + 1 NC
Contact Rating10/40 A, 10 A 60 A Degr.
Contactor Applicationresistive load || motor.
Control Circuit TypeDC low consumption
Control Circuit Voltage.0.1...0.3 Uc -40-70 ?C .
Country of OriginFR - France, France
Depth101 mm
Device Presentationpreassembled with rever.
Device Short NameLC2D
Dimensions90 mm W x 101 mm D x 85.
ECCNEAR99
Enclosure TypeIP20
Environmental DisclosureENVPEP110229EN
Eu Rohs DirectiveCompliant
Fire Resistance850 ?C IEC 60695-2-1
Flame RetardanceV1 conforming to UL 94
Frequency Rating25 to 400 Hz
Height85 mm
Hold-In Power Consumpti.2.4-2.4 W 20 ?C
Inrush Power In W2.4-2.4 W 20 ?C)
Insulation Resistance> 10 MOhm signalling ci.
Interlocking Typemechanical
Ip Degree Of ProtectionIP20 front face IEC 605.
Irms Rated Making Capac.140 A AC signalling cir.
Item TypeReversing contactor;LC2D
Made in USANo
ManufacturerSchneider Electric
Maximum Horse Power Rat.3 hp 230/240 V at AC 60.
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability30 Mcycles
Mechanical Robustnessvibrations contactor op.
Mercury FreeYes
Minimum Switching Curre.5 mA signalling circuit
Minimum Switching Volta.17 V signalling circuit
Motor Power Kw5.5 kW 220...230 V AC 5.
MountingRail Plate
Mounting Supportrail || plate
Mounting typeSurface
Net Weight1.117 kg
Non-Overlap Time1.5 ms on de-energisati.
Number of Auxiliary Con.1NO-1NC
Number of Poles3
Operating Altitude0...9842.52 ft (0...300.
Operating Cycles25...400 HZ,3600 CYC/H .
Operating Temperature-20 to 60 deg C, -20-60.
Operating Time65.45...88.55 ms closin.
Overvoltage CategoryIII
Pole Contact Composition3 NO
Poles Description3P
Pollution Degree3
Power Dissipation Per P.1.25 W AC-3 || 3.2 W AC.
Product CertificationsDNV || CSA || CCC || UL.
Product NameTeSys D || TeSys Deca
Product Or Component Ty.reversing contactor
Protective Coverwith
Protective TreatmentTH IEC 60068-2-30
Pvc FreeYes
RangeTeSys || TeSys Deca
Rated Breaking Capacity450 A 440 V power circu.
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
SeriesLC2D
Signalling Circuit Freq.25...400 Hz
Size101 MM,85 MM,90 MM
Special Features3 HP 230/240 V AC 60 HZ.
StandardDNV;CSA;CCC;UL;GL;LROS .
StandardsCSA C22.2 No 14 || EN 6.
Sub BrandTESYS D
Sustainable Offer StatusGreen Premium product
Terminal TypeScrew Clamp
Tightening Torquecontrol circuit 1.7 N.m.
Time Constant40 ms
Toxic Heavy Metal FreeYes
TypeReversing
UNSPSC39121529
UPC785901567042
Utilisation CategoryAC-1 || AC-3
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wattage1.25 W, 1.25 W AC-3-3.2.
WeeeThe product must be dis.
Width90 mm
