- mpnZB4BA16
- brandname: Schneider Electric
- manufacturername: Schneider Electric

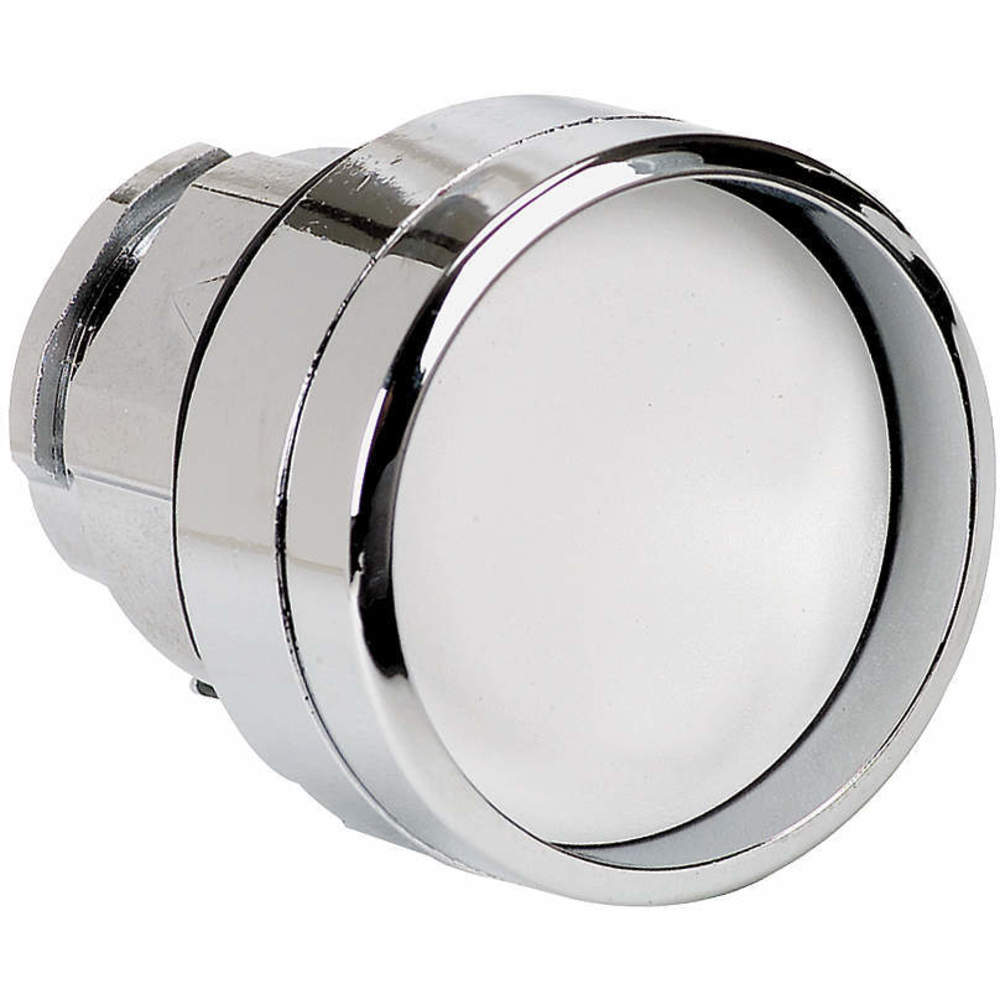

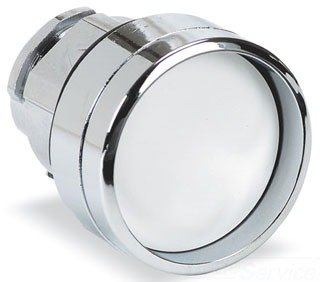

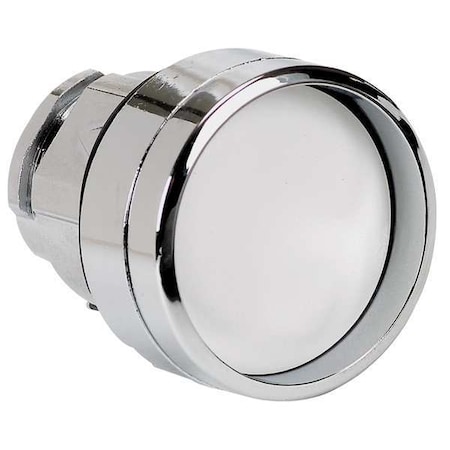

Square D Zb4Ba16 Wht Guard Pb Operator
- Brand: Square D
- PartNumber: ZB4BA16
- Model: ZB4BA16
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Square D
- Label: Square D
Attributes
| Key | Value |
|---|
| (Select First, Then App. | Schneider, Harmony XB4 |
| Accessory Group | B |
| Action | spring return, Momentar. |
| Actuation | spring return |
| Actuator | spring return;White rec. |
| Actuator colour | white |
| Actuator Type | Pushbutton ; Push-Pull,. |
| Ambient Air Temperature. | -40-70 ?C |
| Ambient Air Temperature. | -40-70 ?C |
| Application | push-button |
| Basic Material | Metal |
| Bezel Material | chromium plated metal, . |
| Brand | SCHNEIDER ELECTRIC |
| Button marking | blank |
| Button shape | concave |
| Cad Overall Depth | 31 mm |
| Cad Overall Height | 29 mm |
| Cad Overall Width | 29 mm |
| California Proposition . | Di-isodecyl phthalate (. |
| Catalog Number | ZB4BA16 |
| Category | Switches |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1808008EN |
| Color | white |
| Country of Origin | France |
| Description | HEAD FOR NON ILLUMINATE. |
| Detailed Description | Configurable Switch Bod. |
| Device Presentation | basic element |
| Device Short Name | ZB4 |
| Digi-Key Part Number | 4008-ZB4BA16-ND |
| Electrical Composition . | C1 9 single front mount. |
| Enclosure | NEMA 13-NEMA 4X |
| Environmental Conditions | IP 65 |
| Environmental Disclosure | ENVPEP1808008EN |
| Eu Rohs Directive | Pro-active compliance (. |
| Family Name | Harmony XB4 Family |
| For Use With | Harmony XB4 Family |
| Head Material | Aluminum-Zinc Alloy |
| Head Type | standard |
| Ik Degree Of Protection | IK06 IEC 50102 |
| Illumination | none, Non-Illuminated |
| Indicator | white |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 . |
| IP rating | IP66 |
| IP Rating | IP69, 66 |
| Item | Push Button Operator |
| Item Type | head for non-illuminate. |
| Legend | No Legend |
| Made in USA | No |
| Manufacturer | SCHNEIDER ELECTRIC |
| Manufacturer Product Nu. | ZB4BA16 |
| Manufacturer series | Harmony XB4 |
| Manufacturer Standard L. | 3 Weeks |
| Material | chromium plated metal |
| Mechanical Durability | 10000000 cycles |
| Mercury Free | Yes |
| Mfr | SCHNEIDER ELECTRIC |
| Mounting Diameter | 22 mm |
| Mounting hole diameter | ?22mm |
| Mounting Hole Size | 22 |
| Nema Degree Of Protecti. | NEMA 13 || NEMA 4X |
| NEMA Rating | NEMA 13, 4X, 1, 13, 2, . |
| Number of Operators | 1 |
| Number of positions | 2 |
| Operating temperature | -25...70?C |
| Operating Temperature | -40-70 A Degrees C |
| Operator Additional Inf. | high guard |
| Operator Profile | white recessed, unmarked |
| Overvoltage Category | class I IEC 60536 |
| Package | Box |
| Panel Cutout Dimensions | 22mm (Round) |
| Primary Type | Selector |
| Product Certifications | CSA || UL Listed || LRO. |
| Product Or Component Ty. | head for non-illuminate. |
| Product Status | Active |
| Product Type | Push Button Operator |
| Protective Treatment | TH |
| Range Of Product | Harmony XB4 |
| Reach Free Of Svhc | Yes |
| Reach Regulation | Free of Substances of V. |
| Related items | ZB4BZ009, |
| Requires | Contact Block(s) |
| Rohs Exemption Informat. | Yes |
| Sale Per Indivisible Qu. | 1 |
| Series | Harmony XB4, ZB4 Series |
| Shape Of Signaling Unit. | round |
| Shock Resistance | 30 gn 18 ms) half sine . |
| Size | 22 mm, 22 MM,29 MM,29 M. |
| Special Features | high guard |
| Stable positions number | 1 |
| Standard | 30 GN 18 MS) HALF SINE . |
| Standards | UL 508 || EN/IEC 60947-. |
| Sub Brand | ZB4 |
| Sustainable Offer Status | Green Premium product |
| Switch standard | 22mm |
| Switches features | witout symbol |
| Termination | Screw |
| Toxic Heavy Metal Free | Yes |
| Type | Momentary |
| Type Of Operator | spring return |
| Type of Operator | Recessed Button |
| Type of switch | push-button |
| UPC | 785901381662 |
| UPC Code | 785901381662 |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068. |
| Warranty | 18 months |
| Warranty Description | Contractual Warranty:18. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| TME | ZB4BA16 | 20.48 | 1 | In Stock | | SCHNEIDER ELECTRIC | | 20.48 @ 1 |
 | Zoro | G2326904 | 22.0 | 5 | In Stock | | Schneider Electric | 0.1 | 22.0 @ 5 |
 | mayerelectric.com | SQDZB4BA16 | 30.63 | 1 | In Stock | | SQUARE D | | 30.63 @ 1 |
| Newark | 80C8123 | 37.93 | 5 | In Stock | | SCHNEIDER ELECTRIC | | 37.93 @ 5 |
 | Digi-Key | 16612485 | 39.37 | 5 | In Stock | | Schneider Electric | | 39.37 @ 5 |
 | crescentelectric.com | 299346 | 40.8 | 1 | In Stock | | Schneider Electric | | 40.8 @ 1 |
 | sustainablesupply.com | C1211775 | 43.18 | 1 | In Stock | | Schneider Electric | 0.1 | 43.18 @ 1 |
| us.rs-online.com | 70336688 | 45.98 | 1 | 3 | | Schneider Electric | | 45.98 @ 1 |
 | Raptor Supplies | AG7EWA | 58.1133735 | 1 | In Stock | | SCHNEIDER ELECTRIC | | 58.1133735 @ 1 |
