CAI - SQUARE D DU221RB

B07J2WFHLS

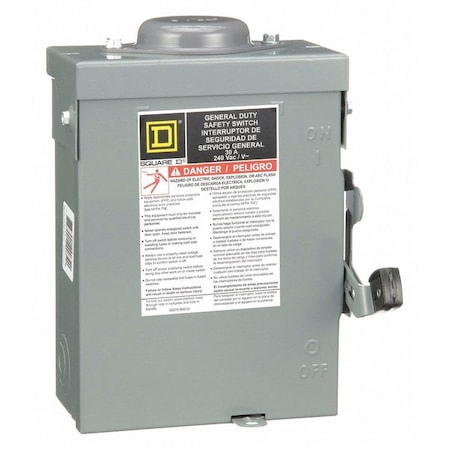

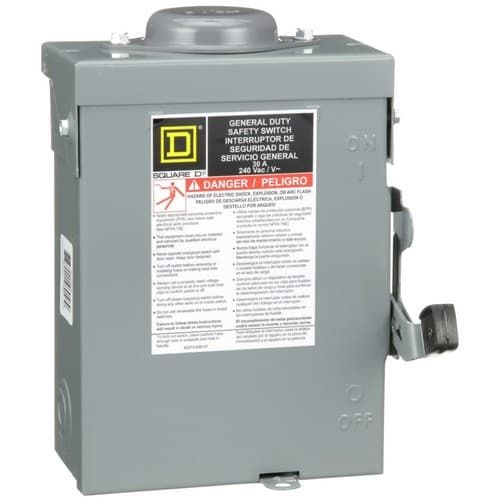

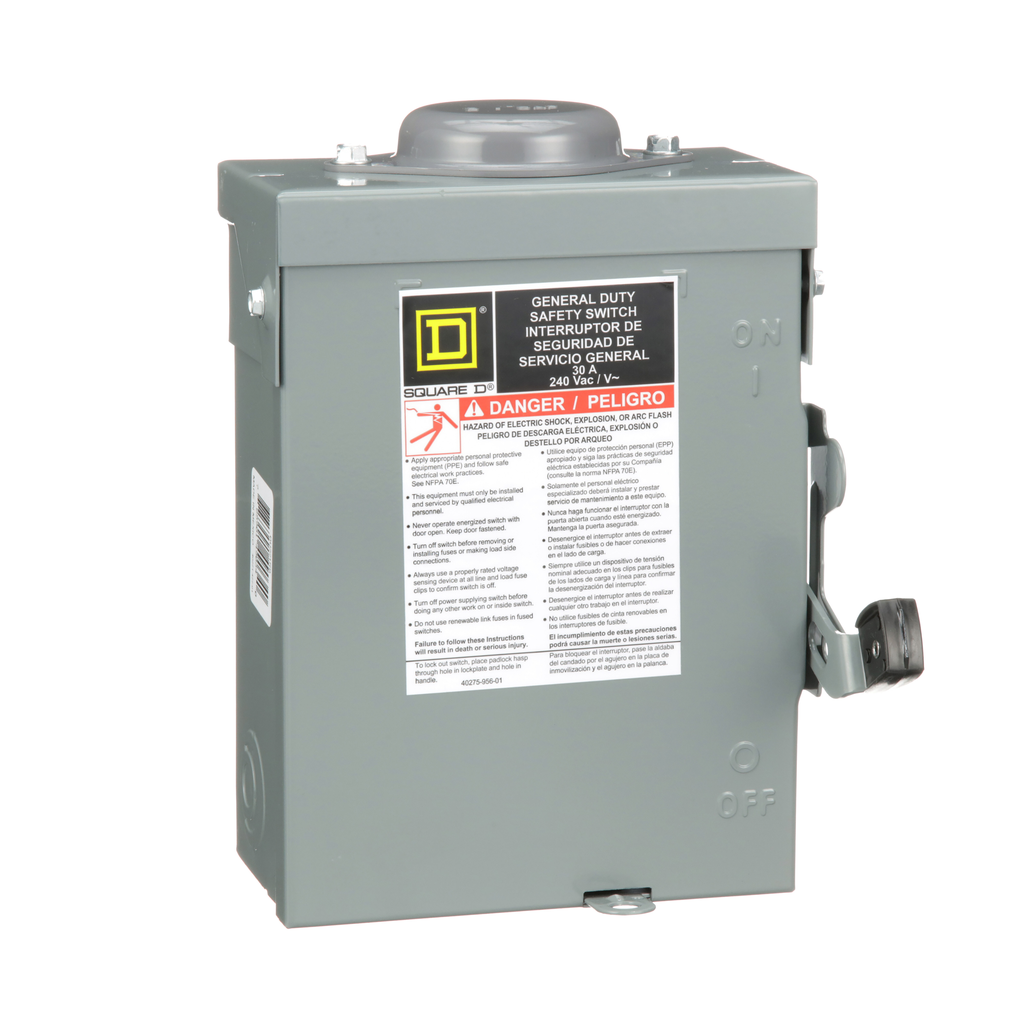

Square D Safety Switch, 3R NEMA Enclosure Type, 30 Amps AC, 3 HP @ 240VAC HP

Square D Safety Switch, 3R NEMA Enclosure Type, 30 Amps AC, 3 HP @ 240VAC HPzoom

Attributes

Key Value
[Ue] Rated Operational .240 V AC
Amperage Rating30A, 30
Amps AC30 A
Applicationresidential
Awg GaugeAWG 14...AWG 6 copper |.
BrandSquare D
California Proposition .Lead and lead compounds.
Catalog NumberDU221RB
China Rohs RegulationPro-active China RoHS d.
Circularity ProfileN/A
ConditionNew
ConnectionLugs;AWG 14...AWG 6 cop.
Contact Form2PST
Country of OriginMX - Mexico, Mexico
Depth3.8 in, 3.75 in
Device Applicationresidential
Device Compositionnone
Device Mountingsurface
Disconnector Device Typenon-fusible disconnect .
DutyGeneral
ECCNEAR99
Electrical Connectionlugs
EnclosureNEMA 3R
Enclosure DepthLess than 6 inches
Enclosure Height0 to 9 3/4 inches
Enclosure RatingNEMA 3R
Enclosure TypeEnclosed
Enclosure Width0 to 9 3/4 inches
Environmental ConditionsRAINPROOF AND SLEET/ICE.
Environmental DisclosureENVPEP1310005EN
Estimated Lead Time (in.4
Eu Rohs DirectiveCompliant
Fusible / NonfusibleNonfusible
GTIN785901490340, 007859014.
Height9.6 in, 9.63 in
HP3 hp @ 240V AC
IP Rating14
ItemSafety Switch
Item TypeNon-fusible disconnect .
Line Rated Current30 A
Made in USANo
ManufacturerSquare D, Schneider Ele.
Material of ConstructionGalvannealed Steel
Maximum Current30 A
Mercury FreeYes
Metallic / Non-MetallicMetallic
Motor Power Hp3 hp at 240 V AC 60 Hz .
Mountingsurface
Mounting TypePanel Mount
Nema Degree Of Protecti.NEMA 3R
NEMA Enclosure Type3R
NEMA Rating3R
Net Weight7.7 kg
Neutral Assembly Includ.No
Number of Poles2
Number Of Poles2
Number of Wires2
Phase1, 3 phase
Product CertificationsUL listed file E2875
Product Or Component Ty.Single Throw Safety Swi.
Protection MethodNonfusible
Pvc FreeYes
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
SeriesDU Series
Series Namegeneral duty
Size3.75 IN,7.75 IN,9.63 IN
Special Featuresgeneral duty
StandardUL listed file E2875
StandardsUL listed
Sub Brandgeneral duty
Sustainable Offer StatusGreen Premium product
Terminal Typelugs
Tightening Torque30-30 lbf.in 2.08-13.3 .
Toxic Heavy Metal FreeYes
UNSPSC39122205
UPC785901490340
UPC Code785901490340
Voltage240V AC
Voltage Rating240 V AC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Weight2.000000
Width7.75 in, 7.7 in
Wiring Configuration2 wires

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoominvertersupply.com19543067.071In StockSquare D67.07 @ 1
thumbzoomindustrialrefrigerationparts.comDU221RB79.01In StockSquare D2.079.0 @ 1
steinerelectric.com3352781.161In StockSquare D?81.16 @ 1
standardelectricsupply.com218772281.321In StockSquare D81.32 @ 1
thumbzoomNewark15B716681.331In StockSQUARE D BY SCHNEIDER ELECTRIC81.33 @ 1
thumbzoommayerelectric.comSQDDU221RB83.71In StockSQUARE D16.9483.7 @ 1
Graybar8823942196.376122Square D (Schneider Electric)96.376 @ 1
thumbzoommidwestapplianceparts.comDU221RB-SQ-P99.181In StockSquared99.18 @ 1
thumbzoomZoroG1447607103.99193Square D4.3103.99 @ 1
thumbzoomAllfusesDU221RB106.74179Square D106.74 @ 1
thumbzoomblackhawksupply.comDU221RB114.51In StockSquare D114.5 @ 1
thumbzoomRaptor SuppliesAG9FZM156.26139751In StockSQUARE D156.2613975 @ 1
us.rs-online.com70921089174.971In StockSquare D174.97 @ 1
thumbzoomUnited Electric42385175.23198SQUARE D175.23 @ 1
thumbzoomNational Supply Network69524973176.331In StockSquare D176.33 @ 1
thumbzoomcrescentelectric.com69718229.461136Square D229.46 @ 1
