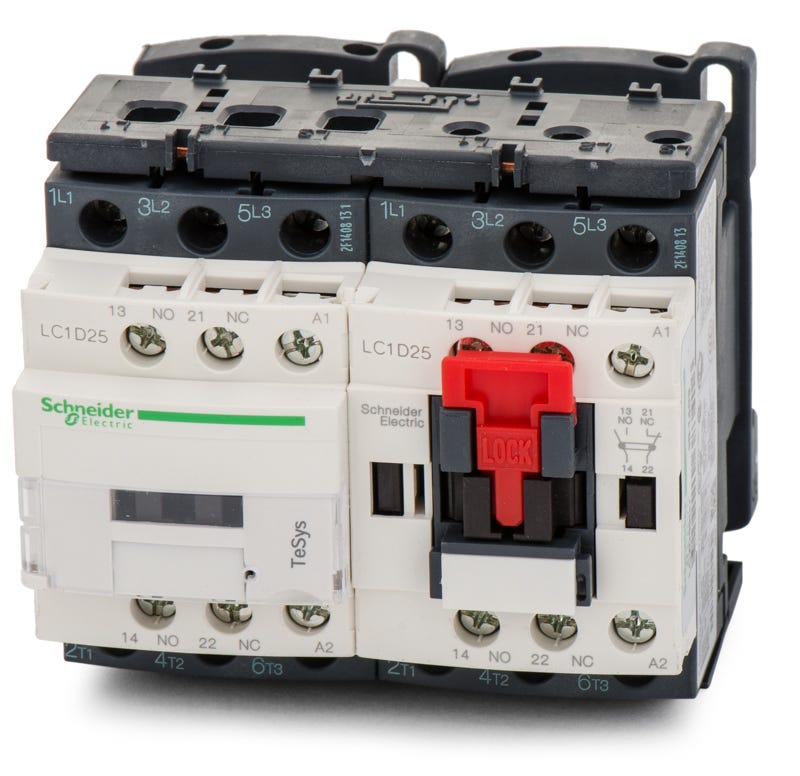

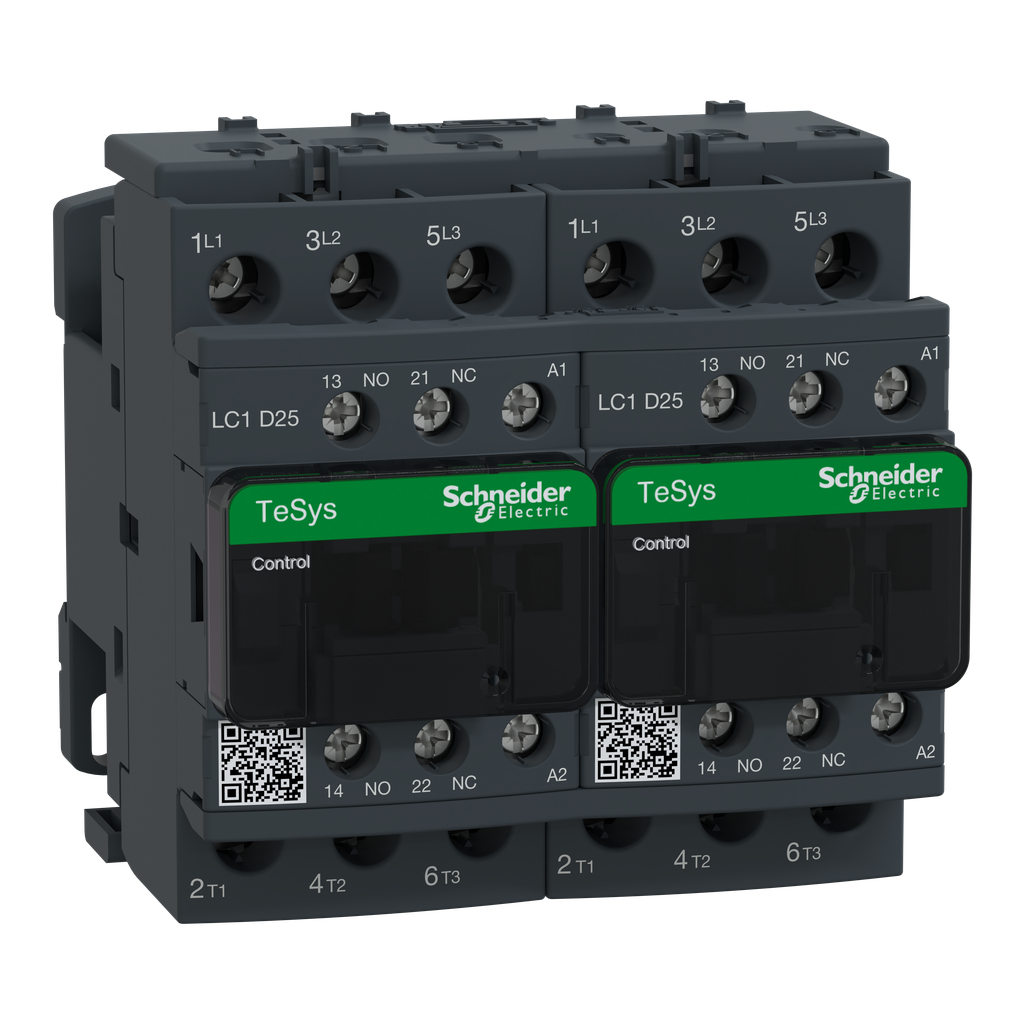

NEW TeSys D AC Contactor LC2D25U7 LC2-D25U7 3P 25A 240VAC Coil

NEW TeSys D AC Contactor LC2D25U7 LC2-D25U7 3P 25A 240VAC Coilzoom

Attributes

Key Value
[Icw] Rated Short-Time .50 A 40 ?C - 10 min pow.
[Ith] Conventional Free.10 A 60 ?C signalling c.
[Uc] Control Circuit Vo.240 V AC 50/60 Hz
[Ui] Rated Insulation V.power circuit 690 V IEC.
[Uimp] Rated Impulse Wi.6 kV IEC 60947
Ambient Air Temperature.-40-60 ?C || 60-70 ?C w.
Ambient Air Temperature.-60-80 ?C
Amperage25A
ApplicationMotor control;resistive.
Auxiliary Contact Compo.1 NO + 1 NC
Auxiliary Contacts Typemechanically linked 1 N.
Average Impedance2 mOhm - Ith 40 A 50 Hz.
BrandSchneider Electric
California Proposition .Antimony oxide & Antimo.
Catalog NumberLC2D25U7
China Rohs RegulationPro-active China RoHS d.
Circularity ProfileENVEOLI1102029EN
Climatic WithstandIACS E10 || IEC 60947-1.
Coil Power Rating20 hp at 575 to 600 VAC.
Coil Technologywithout built-in suppre.
Coil Voltage240 V AC 50/60 Hz, 240,.
ConnectionCONTROL CIRCUIT SCREW C.
Connections - Terminalscontrol circuit screw c.
Contact Configuration3NO, 1 NO + 1 NC
Contact Rating10 A 60 A Degrees C SIG.
Contactor Applicationmotor control || resist.
Contactor TypeIEC
Control Circuit TypeAC 50/60 Hz
Control Circuit Voltage.0.3...0.6 Uc -40-70 ?C .
Country of OriginFrance
Depth92 mm
Device Presentationpreassembled with rever.
Device Short NameLC2D
Dimensions85 mm H x 90 mm W x 92 .
Enclosure TypeOpen
Environmental DisclosureENVPEP110229EN
Eu Rohs DirectiveCompliant
Fire Resistance850 ?C IEC 60695-2-1
Flame RetardanceV1 conforming to UL 94
Frequency Rating50/60, 50/60 Hz
Gtin785901207535
Heat Dissipation2-3 W 50/60 Hz
Height85 mm
Hold-In Power Consumpti.7.5-7.5 VA 60 Hz 0.3 20.
Inrush Power In Va70-70 VA 60 Hz 0.75 20 .
Insulation Resistance> 10 MOhm signalling ci.
Interlocking Typemechanical
Ip Degree Of ProtectionIP20 front face IEC 605.
Irms Rated Making Capac.140 A AC signalling cir.
Item TypeReversing contactor;LC2D
Made in USANo
ManufacturerSchneider Electric
Maximum Horse Power Rat.3 hp 230/240 V at AC 60.
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability15 Mcycles
Mechanical Robustnessvibrations contactor op.
Mercury FreeYes
Minimum Switching Curre.5 mA signalling circuit
Minimum Switching Volta.17 V signalling circuit
Motor Power Kw5.5 kW 220...230 V AC 5.
MountingRail Plate
Mounting Supportrail || plate
Mounting typePlate/Rail
Mounting TypeDin Rail
MpnLC2D25U7
Net Weight0.787 kg
Non-Overlap Time1.5 ms on de-energisati.
Number of Auxiliary Con.1NO-1NC
Number of Poles3
Operating Altitude0...9842.52 ft (0...300.
Operating Cycles25...400 HZ,3600 CYC/H .
Operating Temperature-20 to 60, -20 to 60 de.
Operating Time12...22 ms closing || 4.
Overvoltage CategoryIII
Phase3
Pole Contact Composition3 NO
Poles3
Poles Description3P
Pollution Degree3
Power Dissipation Per P.1.25 W AC-3 || 3.2 W AC.
Product CertificationsUL || CSA || RINA || GO.
Product NameTeSys D || TeSys Deca
Product Or Component Ty.reversing contactor
Protective Coverwith
Protective TreatmentTH IEC 60068-2-30
Pvc FreeYes
RangeTeSys || TeSys Deca
Rated Breaking Capacity450 A 440 V power circu.
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
SeriesTeSys? D LC2D, LC2D
Signalling Circuit Freq.25...400 Hz
Size85 MM,90 MM,92 MM
Special Features3 HP 230/240 V AC 60 HZ.
StandardUL;CSA;RINA;GOST;CCC;DN.
StandardsCSA C22.2 No 14 || EN 6.
Sub BrandTESYS D
Sustainable Offer StatusGreen Premium product
Terminal TypeScrew Clamp, Screw/Clamp
Tightening Torquecontrol circuit 1.7 N.m.
Toxic Heavy Metal FreeYes
TypeReversing
Upc785901207535
UPC785901207535
Utilisation CategoryAC-1 || AC-3
Voltage240V
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wattage1.25 W AC-3-3.2 W AC-1
WeeeThe product must be dis.
Width90 mm
