TB Woods W6014M65

mpnW6014M65
brandname: T.B. Woods
manufacturername: T.B. Woods

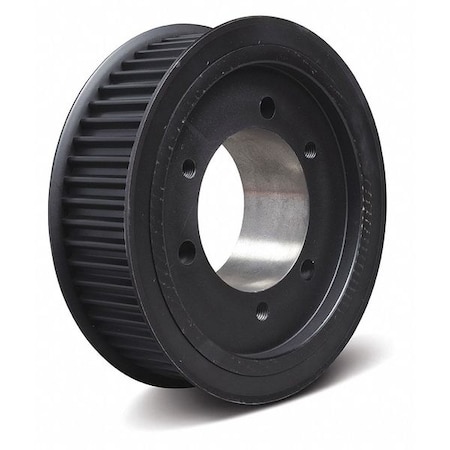

QT PowerChain I,W60-14M-65-F

QT PowerChain I,W60-14M-65-F

zoom

Brand: TB Woods
PartNumber: W6014M65
Size: One Size
PackageQuantity: 1
Manufacturer: TB WOOD'S
Label: TB WOOD'S

Attributes

Key	Value
Belt width	65 mm
Bore type	Quick disconnect bushing
Bushing	F
Bushing bore range	1 - 3 15/16
Dimension	3.63
Face width	3.03
Flanges	2
Groove profile	14M
Hub length	2.5
Hub location	0.53
I.D.	8.5
Inertia WR2 (lbs ft2)	5.03
Inertia WR?	5.03
Inside hub projection	0
Item	QT PowerChain I,W60-14M.
Material type	Cast iron
Number of grooves	60
Number of hubs	0
Number of teeth	60
O.D.	10.42
O.D. (in)	10.417
Outside hub projection	0
Pitch	14
Pitch diameter	10.53
Rim face	3.0315
RPM upper limit	2400
Tooth pitch	14

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	351556	803.85	1	In Stock		TB Woods		803.85 @ 1
	Zoro	G1542359	862.99	1	In Stock		Tb Woods	46.0	862.99 @ 1
	motionindustries.com	00754490	1205.71	1	In Stock		TB Woods (Altra)		1205.71 @ 1
