TE Connectivity 6-1393114-9

B010IJ1010

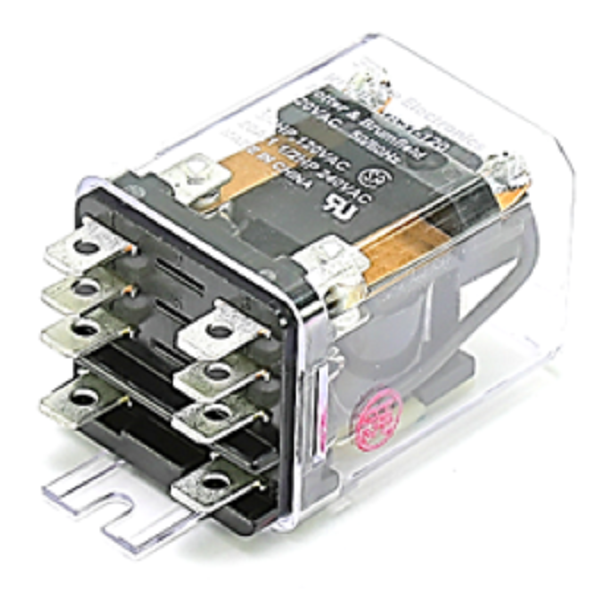

TE Connectivity Part Number 6-1393114-9

TE Connectivity Part Number 6-1393114-9zoom

Attributes

Key Value
Actuating SystemAC
Alternate Mfr Part Numb.6-1393114-9
Alternate Part No.655-KUHP-11A51-120
Base Product NumberKUHP-11
BrandTE Connectivity / P&B
carry current20 a
carry voltage240 v
CategoryRelays
Coil Current24 mA
Coil InsulationClass B
Coil Magnetic SystemMonostable, AC
Coil Power Rating Class2 to 3 VA
Coil Resistance1700 Ohms, 1.7 kOhms, 1.
Coil Special FeaturesUL Coil Insulation Clas.
Coil TerminationQuick Connect Terminal
Coil TypeNon-Latching, Non Latch.
Coil Voltage120VAC, 120 VAC ; 110/1.
coil voltage ac120 v
Contact Current Rating20 a
Contact Current Rating .20 a
Contact Formdpdt, DPDT (2 Form C)
Contact MaterialAgCdO, Silver Cadmium O.
Contact Number of Poles2
Contact Rating (Current)20 a
Contact TerminationQuick Connect
Contact Voltage Rating300 VAC, 240 VAC
Control Voltage120
Current Rating20 a
Dimensions1.532 L x 1.406 W x 1.9.
Environmental Ambient T.45?C
Environmental Ambient T.0 to 50?C
Features-
FunctionGeneral Purpose
Height48.4 mm
Height Class (Mechanica.30 to 40 mm
Insulation Initial Diel.3750 Vrms
Insulation Initial Diel.3500 to 4000 V
Insulation Initial Diel.1200 Vrms
Insulation Initial Resi.100 M?
item per pack1
Length38.9 mm
Length Class (Mechanica.40 to 50 mm
ManufacturerTE Connectivity
Manufacturer Part No.KUHP-11A51-120
MfrTE Connectivity Potter .
Mounting StyleSocket
Mounting TypePanel Mount, Chassis Mo.
Must Operate Voltage102 VAC
Must Release Voltage-
Number of Pins8
Operate Time20 ms
Operating Temperature-45?C ~ 45?C
Operating Temperature R.-45 to 45?C
PackageBULK
packageBULK
Part # Aliases6-1393114-9
Part StatusActive
Power Consumption2.9 VA
Power Relay TypeIndustrial Panel Plug-In
Primary TypePower Relays
ProductPower Relays
Product CategoryGeneral Purpose Relays
Product HeaderKUHP Series Enclosed AC.
Product Height1.405 in
Product Length1.97 in
Product Width1.531 in
Relay Mounting TypePanel Mount, Bracket
Relay TypeElectromechanical, Gene.
Release Time20 ms
Seal Rating-
SeriesKUHP, KUHP Series
StandardsUL ; CSA ; VDE
switch functiondpdt
Switching Voltage240VAC - Max
TerminationQC Tabs
Termination StyleQuick Connect Terminal,.
TypeCube Style
Voltage Rating240 v
Width35.7 mm
Width Class (Mechanical)30 to 40 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com6-1393114-914.391906TE Connectivity / AMP Brand14.39 @ 1
Sager Electronics6-1393114-916.931351TE Connectivity16.93 @ 1
thumbzoomTedss203400117416.991In StockTE CONNECTIVITY16.99 @ 1
Allied Electronics7121073318.18125TE Connectivity18.18 @ 1

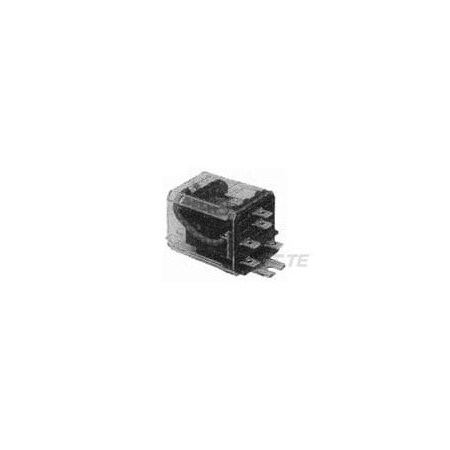

WaldomTE CONNECTIVITY AMP BRAND 6-1393114-920.25390TE CONNECTIVITY/AMP BRAND20.25 @ 3
AmazonTPB00HPLP8DG23.111In Stock2TE CONNECTIVITY / POTTER & BRUMFIELD23.11 @ 1
thumbzoomebay.com_avitarunlimitedKUHP-11A51-12026.211In StockPOTTER&BRUMFIELD - TE CONNECTIVITY26.21 @ 1
thumbzoomswatee.comKUHP-11A51-12028.31125TE Connectivity28.31 @ 1
us.rs-online.com7019920429.091371TE Connectivity29.09 @ 1
Digi-Key67825330.6595006406TE Connectivity Potter & Brumfield Relays30.659 @ 1
Newark36AC634839.351In StockAMP - TE CONNECTIVITY39.35 @ 1
thumbzoomgsistore.comKUHP-11A51-12045.3314TE Connectivity45.33 @ 1
thumbzoommidwestapplianceparts.comKUHP-11A51-120-TV-P46.6711TE Connectivity46.67 @ 1
thumbzoomVoomi SupplyKUHP-11A51-12050.561In StockTE Connectivity50.56 @ 1
thumbzoomebay.com_cswholesalellc_indyKUHP-11A51-12079.951In StockTE Connectivity Potter & Brumfield Relays79.95 @ 1
thumbzoomZoroG20097575488.651In StockTe Connectivity88.65 @ 1
thumbzoomebay.com_954alw113KUHP11A51120129.991In StockTE Connectivity129.99 @ 1
thumbzoomebay.com_online_componentsKUHP11A51120136.761In StockTE Connectivity136.76 @ 1
thumbzoomebay.com_yago9567KUHP11A51120224.991In StockTE Connectivity224.99 @ 1
