TE Connectivity / AMP 2-1586491-0

B00FRC1MXU

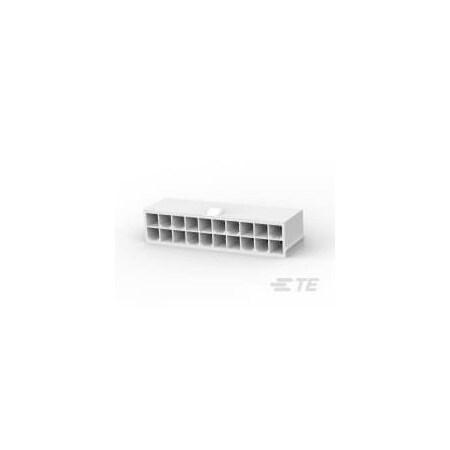

T-E Connectivity 2-1586491-0 (2 pcs) 20P DUAC 94V2 W0/PEG WO/DH LF

T-E Connectivity 2-1586491-0 (2 pcs) 20P DUAC 94V2 W0/PEG WO/DH LFzoom

Attributes

Key Value
Applications-
Base Product Number1586491
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.118.1?in (3.00?m)
Contact Finish Thicknes.-
Contact Length - Mating-
Contact Length - Post0.138" (3.50mm)
Contact MaterialCopper Alloy
Contact ShapeSquare
Contact TypeMale Pin
Country of Origin (subj.China
Current Rating (Amps)-
DescriptionCONN HEADER VERT 20POS .
Detailed DescriptionConnector Header Throug.
Digi-Key Part Number2-1586491-0-ND
Fastening TypeLocking Ramp
Features-
Ingress Protection-
Insulation ColorNatural
Insulation Height0.504" (12.80mm)
Insulation MaterialPolyamide (PA), Nylon
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.2-1586491-0
Mated Stacking Heights-
Material Flammability R.UL94 V-2
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Positions20
Number of Positions Loa.All
Number of Rows2
Operating Temperature-55?C ~ 105?C
Overall Contact Length-
PackageTray
Pitch - Mating0.165" (4.20mm)
Product StatusActive
Row Spacing - Mating0.165" (4.20mm)
SeriesAMP-DUAC
ShroudingShrouded - 4 Wall
StyleBoard to Board or Cable
TerminationSolder
Voltage Rating600VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 2-1586491-00.86651698TE CONNECTIVITY/AMP BRAND0.86 @ 65
Newark95Y95481.6811598AMP - TE CONNECTIVITY1.68 @ 25
thumbzoomZoroG1010415271.6863025Te Connectivity1.68 @ 630
Onlinecomponents.com2-1586491-01.7411844TE Connectivity / AMP Brand1.74 @ 25
thumbzoomDigi-Key11219431.932501698TE Connectivity AMP Connectors1.932 @ 50
