TE Raychem 1-1747994-1

B07NQRQGZG

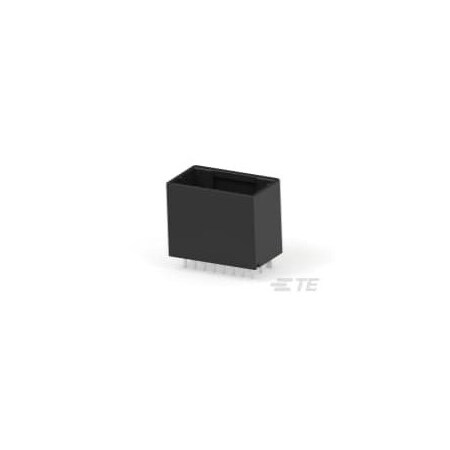

TE Raychem Connector

TE Raychem Connectorzoom

Attributes

Key Value
ApplicationsGeneral Purpose, Indust.
Base Product Number1747994
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.15.0?in (0.38?m)
Contact Finish Thicknes.-
Contact Length - Mating-
Contact Length - Post0.134" (3.40mm)
Contact MaterialCopper Alloy
Contact ShapeRectangular
Contact TypeTab
Country of Origin (subj.China
Current Rating (Amps)5A
DescriptionCONN HEADER VERT 16POS .
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA119235-ND
Fastening TypeDetent Lock
FeaturesBoard Lock
Ingress Protection-
Insulation ColorBlack
Insulation Height0.700" (17.78mm)
Insulation MaterialThermoplastic, Polyeste.
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1-1747994-1
Manufacturer Standard L.40 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Positions16
Number of Positions Loa.All
Number of Rows2
Operating Temperature-55?C ~ 105?C
Overall Contact Length-
PackageTube
Pitch - Mating0.098" (2.50mm)
Product StatusActive
Row Spacing - Mating0.148" (3.75mm)
SeriesDynamic D-2100
ShroudingShrouded - 4 Wall
StyleBoard to Board or Cable
TerminationSolder
Voltage Rating250V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 1-1747994-12.9In Stock12243TE CONNECTIVITY/AMP BRAND2.9 @ 21
Newark96X72843.63252010TE CONNECTIVITY3.63 @ 2520
thumbzoomZoroG8009376024.63252010Te Connectivity4.63 @ 2520
thumbzoomDigi-Key48978545.21542857143In Stock12243TE Connectivity AMP Connectors5.21542857143 @ 21
