TE Connectivity / AMP 2-1376274-1

B083YVV5SM

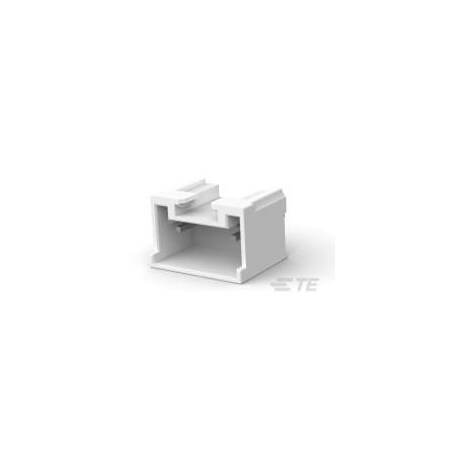

2-1376274-1, 7.5mm Signal DBL Lock 2P Post Header ASS'Y (100 Items)

2-1376274-1, 7.5mm Signal DBL Lock 2P Post Header ASSzoom

Attributes

Key Value
ApplicationsGeneral Purpose
Base Product Number1376274
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.-
Contact Finish Thicknes.-
Contact Length - Mating0.185" (4.70mm)
Contact Length - Post0.126" (3.20mm)
Contact MaterialCopper Alloy
Contact ShapeSquare
Contact TypeMale Pin
Country of Origin (subj.United States
Current Rating (Amps)3A
DescriptionCONN HEADER VERT 4POS 2.
Detailed DescriptionConnector Header Throug.
Digi-Key Part Number2-1376274-1-ND
Fastening TypeLatch Holder
Features-
Ingress Protection-
Insulation ColorRed
Insulation Height0.386" (9.80mm)
Insulation MaterialPolyamide (PA66), Nylon.
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.2-1376274-1
Manufacturer Standard L.13 Weeks
Mated Stacking Heights13.7mm
Material Flammability R.UL94 V-2
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Positions4
Number of Positions Loa.2
Number of Rows1
Operating Temperature-30?C ~ 105?C
Overall Contact Length0.410" (10.41mm)
PackageBulk
Part StatusActive
Pitch - Mating0.098" (2.50mm)
Product StatusActive
Row Spacing - Mating-
SeriesSignal Double Lock
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationKinked Pin, Solder
Voltage Rating50V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 2-1376274-10.412001596TE CONNECTIVITY/AMP BRAND0.41 @ 200
thumbzoomDigi-Key54394280.722001596TE Connectivity AMP Connectors0.72 @ 200
Newark41AJ51881.06194AMP - TE CONNECTIVITY1.06 @ 1
thumbzoomZoroG90093918619000.0500009490Te Connectivity19000.0 @ 50000
