Juried Engineering TL081CP

B07QJYS4ZR

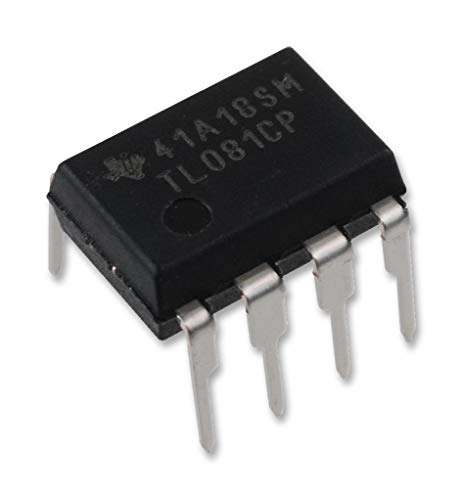

Juried Engineering TL081CP TL081 High Slew Rate JFET-Input Operational Amplifier Op-Amp IC Breadboard-Friendly DIP-8 (Pack of 10)

Juried Engineering TL081CP TL081 High Slew Rate JFET-Input Operational Amplifier Op-Amp IC Breadboard-Friendly DIP-8 (Pack of 10)zoom

Attributes

Key Value
Alternate Part No.595-TL081CP
Amplifier TypeJ-FET, General Purpose .
Base Product NumberTL081
BrandTexas Instruments
CaseDIP8
CategoryIntegrated Circuits (IC.
CMRR - Common Mode Reje.70 dB
Com Mode Inp Range (VIC.12
Current - Input Bias30 pA
Current - Supply1.4mA
DescriptionIC OPAMP JFET 1 CIRCUIT.
Detailed DescriptionJ-FET Amplifier 1 Circu.
device function-
device package typedip
Digi-Key Part Number296-7203-5-ND
Dual Supply Voltage+/- 5 V, +/- 9 V, +/- 1.
en - Input Voltage Nois.18 nV
Family SeriesTexas Instruments Misce.
Gain Bandwidth Product3 MHz
GBP - Gain Bandwidth Pr.3 MHz
Gross Weight0.001 lbs
I(io) Max. (A)1.0n
Ib - Input Bias Current400 pA
Inp Bias Curr. Max. (A)6.0n
Item NumberTL081CP
item per pack1
ManufacturerTexas Instruments
Manufacturer Part No.TL081CP
Manufacturer Part NumberTL081CP
Manufacturer Product Nu.TL081CP
Manufacturer Standard L.6 Weeks
Maximum Dual Supply Vol.+/- 18 V
Maximum Operating Tempe.+ 70 C
MfrTexas Instruments
Minimum Dual Supply Vol.+/- 3.5 V
Minimum Operating Tempe.0 C
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Net Weight0.001 lbs
No. of Pins8
Number of Channels1 Channel
Number of Circuits1
Oper. Temp (?C) Max.70
Oper. Temp (?C) Min0
Operating Supply Voltage7 V to 36 V, +/- 3.5 V .
Operating Temperature0?C ~ 70?C
Output Type-
PackageTube
packageTube
Package / Case8-DIP (0.300", 7.62mm)
Package/CasePDIP-8
PackagingTube
Part StatusActive
PD Max. (W)84m
Pinout Equivalence Numb.8-134
ProductOperational Amplifiers
Product CategoryOperational Amplifiers .
Product StatusActive
PSRR - Power Supply Rej.70 dB
R(in) (?)1.0G
SeriesTL081, -
ShutdownNo Shutdown
Single Supply Voltage7 V to 36 V
SKU76687
Slew Rate13V/?s
SR - Slew Rate13 V/us
Supplier Device Package8-PDIP
Supply Current per Chan.2.8 mA
Supply Voltage - Max36 V
Supply Voltage - Min7 V
Surface Mounted Yes/NoNO
TechnologyBiFET
Temp Coef. of VIO10u
TypeIntegrated Circuit FET
Unit Weight440.400 mg
V(io) Max. (V)20m
Voltage - Input Offset3 mV
Voltage - Supply Span (.36 V
Voltage - Supply Span (.7 V
Voltage - Supply, Singl.7V ~ 36V, ?3.5V ~ 18V
Vos - Input Offset Volt.15 mV

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Freelance ElectronicsTL081CP0.133931145Texas Instruments0.13393 @ 50
Win SourceTL081CP0.31002503Texas Instruments0.3 @ 100
thumbzoomComponent Electronics081CP-TI0.36150Texas Instruments0.36 @ 50
HotendaH25116820.413150Texas Instruments0.413 @ 50
thumbzoomDigi-Key3830300.51921924Texas Instruments0.5192 @ 50
thumbzoomExcessParts.NetTL081CP0.68150TI0.68 @ 50
thumbzoomNewark29AH79540.761150TEXAS INSTRUMENTS0.761 @ 50
RS Delivers304-2230.8411021Texas Instruments0.84 @ 50
thumbzoomswatee.comTL081CP1.0711453Texas Instruments1.07 @ 50
thumbzoomTedss20280162941.25850TI1.25 @ 50
thumbzoomGalcoTL081CP-TII1.8150Texas Instruments0.0011.8 @ 50
Little DiodeTL081CP5.93312851145Texas Instruments5.9331285 @ 50
