Texas Instruments LMH6643MM/NOPB

B00AZVCULG

LMH6643MM/NOPB

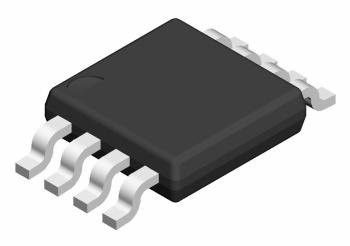

LMH6643MM/NOPBzoom

Attributes

Key Value
-3db Bandwidth130 MHz
Alternate Part No.926-LMH6643MM/NOPB
Amplifier TypeVoltage Feedback
Base Product NumberLMH6643
BrandTexas Instruments
CategoryIntegrated Circuits (IC.
CMRR - Common Mode Reje.74 dB
Current - Input Bias1.6 ?A
Current - Output / Chan.75 mA
Current - Supply2.7mA (x2 Channels)
DescriptionIC OPAMP VFB 2 CIRCUIT .
Detailed DescriptionVoltage Feedback Amplif.
Digi-Key Part NumberLMH6643MM/NOPBTR-ND - T.
Dual Supply Voltage+/- 3 V, +/- 5 V
en - Input Voltage Nois.17 n V/rtHz at 5 V
Ib - Input Bias Current2.6 uA at 5 V
ManufacturerTexas Instruments
Manufacturer Part No.LMH6643MM/NOPB
Manufacturer Product Nu.LMH6643MM/NOPB
Manufacturer Standard L.26 Weeks
Maximum Dual Supply Vol.+/- 6.4 V
Maximum Operating Tempe.+ 85 C
MfrTexas Instruments
Minimum Dual Supply Vol.+/- 1.35 V
Minimum Operating Tempe.- 40 C
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of Channels2 Channel
Number of Circuits2
Operating Supply Voltage3 V, 5 V, 9 V, 12 V
Operating Temperature-40?C ~ 85?C
Output Current per Chan.75 mA
Output TypeRail-to-Rail
PackageTape & Reel (TR)
Package / Case8-TSSOP, 8-MSOP (0.118".
Package/CaseMSOP
PackagingReel
ProductOperational Amplifiers
Product CategoryOperational Amplifiers .
Product StatusActive
PSRR - Power Supply Rej.79 dB
SeriesLMH?, LMH6643
ShutdownNo Shutdown
Slew Rate135V/?s
SR - Slew Rate125 V/us at 5 V
Supplier Device Package8-VSSOP
Supply Current per Chan.8.5 mA at 5 V
Supply Voltage - Max12.8 V
Supply Voltage - Min2.7 V
TechnologyBiCOM
Voltage - Input Offset1 mV
Voltage - Supply Span (.12.8 V
Voltage - Supply Span (.2.7 V
Vos - Input Offset Volt.5 mV at 5 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
RadwellLMH6643MMNOPB1.3100076TEXAS INSTRUMENTS SEMI1.3 @ 1000
thumbzoomDigi-Key4829932.2914933Texas Instruments2.29 @ 1
thumbzoomswatee.comLMH6643MM/NOPB3.015034Texas Instruments3.0 @ 1
