- mpnD1C2J14
- brandname: US Motors
- manufacturername: US Motors

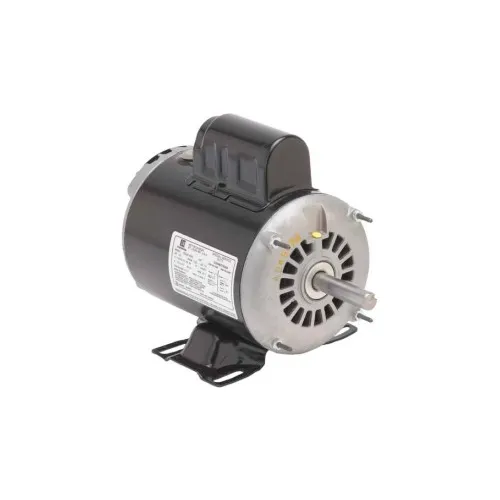

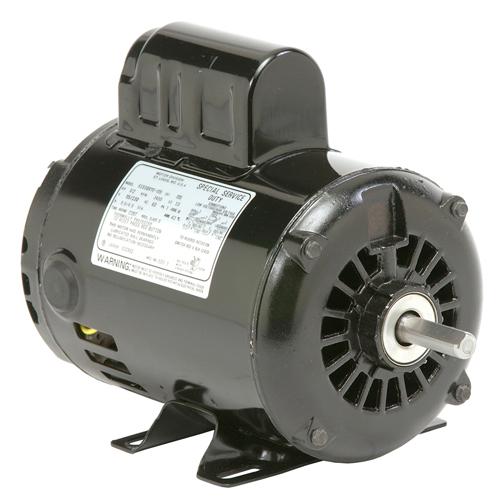

US Motors D1C2J14
- Brand: Emerson
- PartNumber: D1C2J14
- Binding: Kitchen
- Manufacturer: US Motors/Emerson
- Label: US Motors/Emerson
Attributes
| Key | Value |
|---|
| Amps | 14.8/7.5-7.3 |
| Bearings | Ball |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | Standard |
| Efficiency | 70% |
| Enclosure | Open Drip Proof, Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 35.20 |
| Family Series | US Motors Motors |
| FL Amps | 14.8/7.5-7.3 |
| FL Efficiency | 70 |
| Frame | 143T |
| Frequency | 60 Hz |
| Gross Weight | 32 lbs |
| Hertz | 60 |
| Horsepower | 1 hp |
| HP | 1 |
| Hz | 60 |
| Insulation Class | B |
| Item | Motor,1HP,1725RPM,115/2. |
| Item Number | D1C2J14 |
| Kilowatts | 0.8 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | C063JEL5315012B |
| Manufacturer Part Number | D1C2J14 |
| Maximum Ambient Tempera. | 40? C |
| Model Number | C063JEL5315012B |
| Mounting | Foot Mount, Base |
| Mounting Type | Rigid |
| NEMA Frame | 143T |
| Net Weight | 0 lbs |
| Nominal Voltage | 120 VAC, 208 VAC, 240 V. |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overload Protection | None |
| Part Number | D1C2J14 |
| Phase | 1 |
| Product Type | General Purpose, Capaci. |
| Rotation | Reversible |
| RPM | 1725, 1,725 RPM |
| Service Factor | 1.15 |
| Ship Weight | 32 lbs. |
| Speed (RPM) | 1725 |
| Voltage | 110-120V, 208V, 230V |
| Voltage (AC) | 115 VAC, 208-230 VAC |
| Volts | 115, 208, 230 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0918983 | 353.0 | 1 | In Stock | | U.S. Motors | 32.0 | 353.0 @ 1 |
 | motorsandcontrol.com | D1C2J14 | 372.01 | 1 | In Stock | | US Motors (Nidec) | 35.2 | 372.01 @ 1 |
 | Global Industrial | WBB466523 | 445.95 | 1 | In Stock | 17 | US Motors | | 445.95 @ 1 |
 | Galco | D1C2J14-USM | 484.78 | 1 | In Stock | | US Motors | 32.0 | 484.78 @ 1 |
 | emotorpro.com | D1C2J14 | 498.91 | 1 | In Stock | | U.S. Motors | 32.0 | 498.91 @ 1 |
 | National Supply Network | B466523 | 499.44 | 1 | In Stock | | US MOTORS | | 499.44 @ 1 |
| motionindustries.com | 04282868 | 618.98 | 1 | In Stock | | US Motors (Nidec) | | 618.98 @ 1 |
 | Guardian | 76506518 | 676.26 | 1 | In Stock | | US Motors | | 676.26 @ 1 |
 | bscsource.com | D1C2J14 | 810.69 | 1 | In Stock | | US Motors | | 810.69 @ 1 |
