Weg Electric 00336ET3EAL100L-W22

B07BQFRXC1

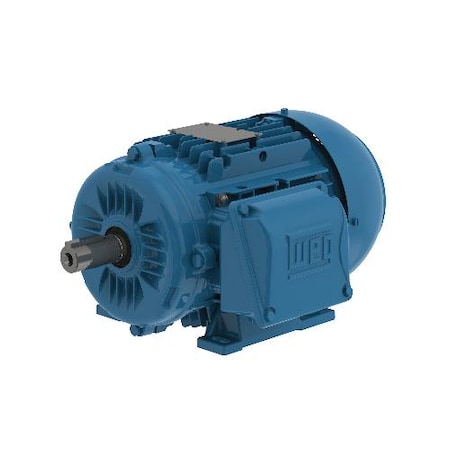

WEG Electric 00336ET3EAL100L-W22, 4HP, 3600 RPM, 3PH, 230V/460V, 100L Frame, Standard Flange, Foot Mount, TEFC, IEC Metric Motor

WEG Electric 00336ET3EAL100L-W22, 4HP, 3600 RPM, 3PH, 230V/460V, 100L Frame, Standard Flange, Foot Mount, TEFC, IEC Metric Motorzoom

Attributes

Key Value
Amperage Rating10/5.01 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
ClassificationIEC-AL
ConditionNew
Constant Torque Speed R.20:1
ConstructionAluminum
Country of Origin (subj.Brazil
Description:MOTOR 4HP 2P 100L WAF1
Dimensions14.803 in L
Drive End Flange TypeStandard
EnclosureTEFC
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight65.00
Family SeriesWEG Electric Miscellane.
FL Amps5.01
FL Efficiency88.5
FRAME100L
Frame100L
Frame MaterialAluminum
Frame RemarksAluminum, W22 Sev Duty
Frequency Rating60 Hz
Full Load Amps5.01
Gross Weight0 lbs
Hertz50, 60
Horsepower4 hp
HP3, 4
Hz60/50
Insulation ClassClass F
Item ConditionFactory New
Item Number00336ET3EAL100L-W22
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number00336ET3EAL100L-W22
MaterialCast Iron
MFG Part #:00336ET3EAL100L-W22
Model13983077
Motor Enclosure DesignTEFC
Motor Mounting TypeFOOT
Motor Service Factor1.25
MountingFoot Mount
Mounting TypeFooted
Nameplate RPM3600//3000
Net Weight0 lbs
Nominal Efficiency88.5
Number of Speeds1
Overall Length14.803
Part Number00336ET3EAL100L-W22
Phase3, 3 ph
Product TypeIEC Metric
Replaces00336ET3EAL100L
RotationCW/CCW
RPM3600
Service Factor1.25
Special FeaturesIEC Metric Motors
Speed3520 rpm
Speed (RPM)3000, 3600
Supplier:WEG ELECTRIC CORP
UPC:7909323280959
VOLTAGE230/460//190/380
Voltage190V, 230V, 380V, 460V,.
Volts208/230/460
WEIGHT65
Weight66.790000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomWalker Industrial00336ET3EAL100L-W22603.751In Stock17WEG603.75 @ 1
thumbzoomMRO Supply5739611635.741In StockWEG635.74 @ 1
thumbzoommotorsandcontrol.com00336ET3EAL100L-W22637.821In StockWEG Electric65.0637.82 @ 1
kscdirect.comWEG 00336ET3EAL100L-W22685.211In StockWEG ELECTRIC CORP685.21 @ 1
thumbzoomindustrialrefrigerationparts.com00336ET3EAL100L-W22704.311In StockWEG66.79704.31 @ 1
thumbzoomZoroG702484419760.01In Stock11Weg65.0760.0 @ 1
thumbzoomGalco00336ET3EAL100L-W22-WEG774.811In StockWEG Electric774.81 @ 1
thumbzoomvfds.com00336ET3EAL100L-W22805.01In StockWEG805.0 @ 1
thumbzoomDealers Electric00336ET3EAL100L-W22911.451In StockWeg65.0911.45 @ 1
