WEG CFW700A03P6T4DBN1

B007PB4LPW

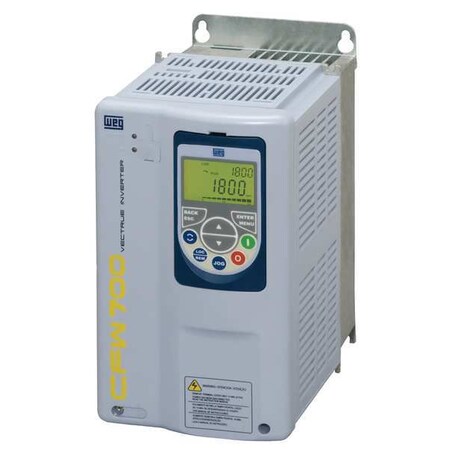

WEG CFW700A03P6T4DBN1 CFW700 Series Variable Frequency Drive, 2 HP, 3 A, 460 V, 3 Phase Input, 3 Phase Output

WEG CFW700A03P6T4DBN1 CFW700 Series Variable Frequency Drive, 2 HP, 3 A, 460 V, 3 Phase Input, 3 Phase Outputzoom

Attributes

Key Value
Accepts Input Control S.Yes
Adjustable Acceleration.0 to 999 sec.
Adjustable Deceleration.0 to 999 sec.
Amps (Constant Torque R.3.6 A
Amps (Max Load)3.6
Amps (Variable Torque R.3.6 A
Braking Resistor Includ.1
Braking TypeDynamic Braking
Closed LoopOptional
ConditionNew
Control MethodLinear and Adjustable V.
Control TypeKeypad/Remote
Country of Origin (subj.Brazil
Depth8.94"
Description:DRIVE CFW700A03P6T4DBN1
Digital ReadoutYes
Dimensions12.1 x 5.8 x 9.0
Display TypeLCD
DisplaysLCD
Drive SeriesCFW700
Dynamic BrakingYes
Dynamic Braking TransIncluded
EnclosureA, NEMA 1
Estimated Weight13.90
Family SeriesWEG Electric Drives, CF.
For Use With3-Phase Induction Motor
FrameA
Frame SizeA
Gross Weight0 lbs
Height12.04"
HP2
HP (Constant Torque Rat.2 hp
HP (Max)2
HP (Variable Torque Rat.2 hp
Input Frequency50/60 Hz
Input Phase3
Input Phase AC3
Input Range Voltage (AC)380-480 VAC
Input Voltage480VAC, 460, 380-480V
ItemVariable Frequency Drive
Item ConditionFactory New
Item NumberCFW700A03P6T4DBN1
Key Pad LockoutYes
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part NumberCFW700A03P6T4DBN1
Max Frequency300 Hz
Max. HP2
Max. Output Amps3.6
MFG Part #:CFW700A03P6T4DBN1
ModelCFW700 Series (T4), CFW.
Motor Control-Max LevelClosed Loop Vector (Sen.
MountingPanel
Net Weight13.9 lbs
Operator ControlsKeypad Included
Output Frequency Range0 to 300 Hz
Output Phase3
Output Phase AC3
Output Voltage480VAC, 460, 380-480V
Part NumberCFW700A03P6T4DBN1
Product SeriesCFW700
ProtectionOvercurrent/Short Circu.
StandardsUL, cUL, CE
Start/Stop ControlProgrammable
Starting Torque100%
Supplier:WEG ELECTRIC CORP
Torque @ 1 Hz100%
UPC:7891327780323
Weight14.800000
Width5.71"
With Bypass / No BypassNo Bypass
With Line Contactor / N.No Line Contactor

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomWalker IndustrialCFW700A03P6T4DBN1688.51In Stock17WEG688.5 @ 1
thumbzoomGalcoCFW700A03P6T4DBN1-WEG691.21In StockWEG Electric13.9691.2 @ 1
thumbzoomDealers ElectricCFW700A03P6T4DBN1699.251In StockWeg13.9699.25 @ 1
thumbzoommotorsandcontrol.comCFW700A03P6T4DBN1864.021In StockWEG Electric13.9864.02 @ 1
thumbzoomZoroG3887396967.821In Stock15Weg967.82 @ 1
thumbzoomindustrialrefrigerationparts.comCFW700A03P6T4DBN1995.61In StockWEG14.8995.6 @ 1
kscdirect.comWEG CFW700A03P6T4DBN11005.231In StockWEG ELECTRIC CORP1005.23 @ 1
thumbzoomRadwellCFW700A03P6T4DBN11250.01In StockWEG1250.0 @ 1
