WEG .5082OS1DEC56

mpn.5082OS1DEC56
brandname: WEG
manufacturername: WEG

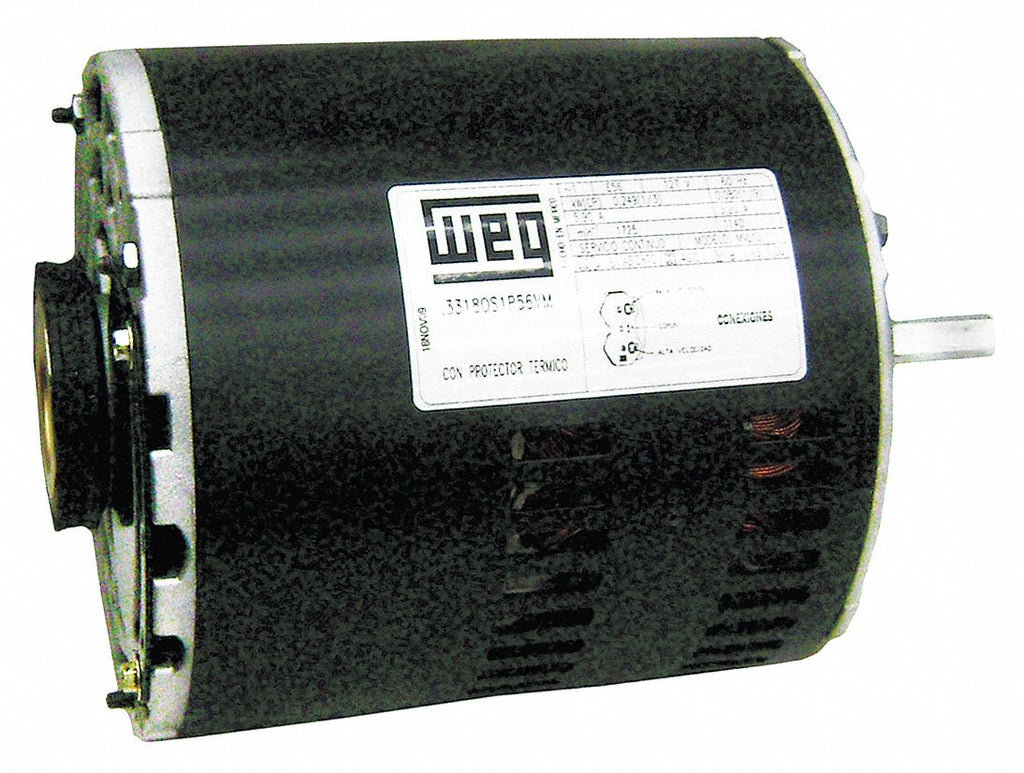

Weg 1/2, 1/6 HP Evaporative Cooler MotorSplit-Phase 1725/1140 Nameplate RPM 230 Voltage 56Z Frame - .5082OS1DEC56

Brand: WEG
PartNumber: .5082OS1DEC56
Manufacturer: Weg
Label: Weg

Attributes

Key	Value
Ambient Temperature	40 Degrees C
Amperage Rating	4.8/2.1 A
Application Type	Air Handling Motors, Ge.
Bearing Type	Ball
Body Dia.	6 7/16 in
Classification	HVAC
Condition	New
Construction	Rolled Steel
Country of Origin (subj.	Multiple
Description:	MOTOR 0.5/0.16HP 6/4P E.
Dimensions	9.53 in L
Drive End Flange Type	Standard
Enclosure	ODP, Open
Enclosure Type	Open Drip-Proof
Estimated Weight	20.00
Family Series	WEG Electric Miscellane.
Features	Epoxy Paint Over a Laye.
FL Amps	4.80/2.10
FL Efficiency	54.0/39.6
Frame	56
Frame Remarks	Evaporative Cooler
Frequency Rating	60 Hz
Full Load Amps	4.8/2.1
Gross Weight	0 lbs
Hertz	60
Horsepower	0.5/0.16 hp
HP	1/2-1/6, 1/2, 1/6, .50/.
Hz	60
Ins. Class	B
Item	Evaporative Cooler Motor
Item Condition	Factory New
Item Number	.5082OS1DEC56
Length Less Shaft	7 7/8 in
Manufacturer	WEG Electric, WEG, WEG .
Manufacturer Part Number	.5082OS1DEC56
Max. Ambient Temp.	40 Degrees C
MFG Part #:	.5082OS1DEC56
Model	12831180
Motor Application	HVAC/R
Motor Bearings	Ball
Motor Design	Split-Phase
Motor Enclosure Design	Open Dripproof
Motor Mounting Position	All Angle
Motor Mounting Type	Ring
Motor Service Factor	1
Motor Shaft Rotation	CWSE
Motor Sub Application	Evaporator Cooler
Motor Thermal Protection	Auto
Mounting	Footless
Nameplate RPM	1,800/1,200
Net Weight	0 lbs
No. of Speeds	2
Number of Speeds	1, 2
Overall Length	9 9/16 in
Part Number	.5082OS1DEC56
Phase	1, Single, 1 ph
Product Type	General Purpose
Resilient Ring Dia.	2 1/2 in
Ring Dia.	2 1/2 in
Ring to Ring Center	7 7/16 in
Rotation	CWSE
RPM	1800/1200
RPM Range	1,701-1,800
Service Factor	1
Shaft Dia.	5/8 in
Shaft Length	1 7/8 in
Shaft Size	1/2 in Dia x 1-11/16 in.
Speed	1800/1200 rpm
Speed (RPM)	1200, 1800
Standards	UL Recognized for US an.
Supplier:	WEG ELECTRIC CORP
Temperature Rating	40 deg C
UPC:	7909158859801
Usable @ 200V	No
Usable @ 208V	No
Voltage	230V AC, 240, 230V
Voltage Compatibility	115/200-230V AC, 115/20.
Voltage Rating	240 VAC
Volts	240
Weight	23.800000, 24 lb

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Walker Industrial	5082OS1DEC56	165.0	1	In Stock	17	WEG		165.0 @ 1
kscdirect.com	WEG .5082OS1DEC56	165.0	1	In Stock		WEG ELECTRIC CORP		165.0 @ 1
Zoro	G3546313	165.0	1	In Stock	26	Weg	17.18	165.0 @ 1
motorsandcontrol.com	.5082OS1DEC56	165.0	1	In Stock		WEG Electric	20.0	165.0 @ 1
Galco	.5082OS1DEC56-WEG	180.69	1	In Stock		WEG Electric		180.69 @ 1
MRO Supply	1310967	185.64	1	In Stock		WEG		185.64 @ 1
industrialrefrigerationparts.com	.5082OS1DEC56	192.48	1	In Stock		WEG	23.8	192.48 @ 1
Radwell	.5082OS1DEC56	210.0	1	In Stock		WEG		210.0 @ 1
Dealers Electric	.5082OS1DEC56	210.87	1	In Stock		Weg	25.0	210.87 @ 1
sustainablesupply.com	C1492803	228.22	1	In Stock		WEG	17.18	228.22 @ 1
National Supply Network	B888087	302.85	1	In Stock		Weg Electric Motors		302.85 @ 1
Raptor Supplies	AE7WTB	331.0596315	1	In Stock		WEG		331.0596315 @ 1
