- mpnLFV14-8Q
- brandname: 3-M
- manufacturername: 3-M

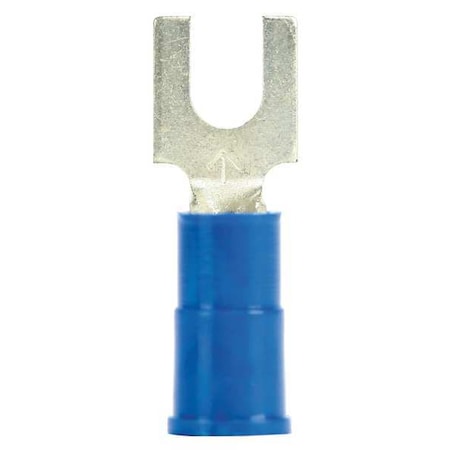

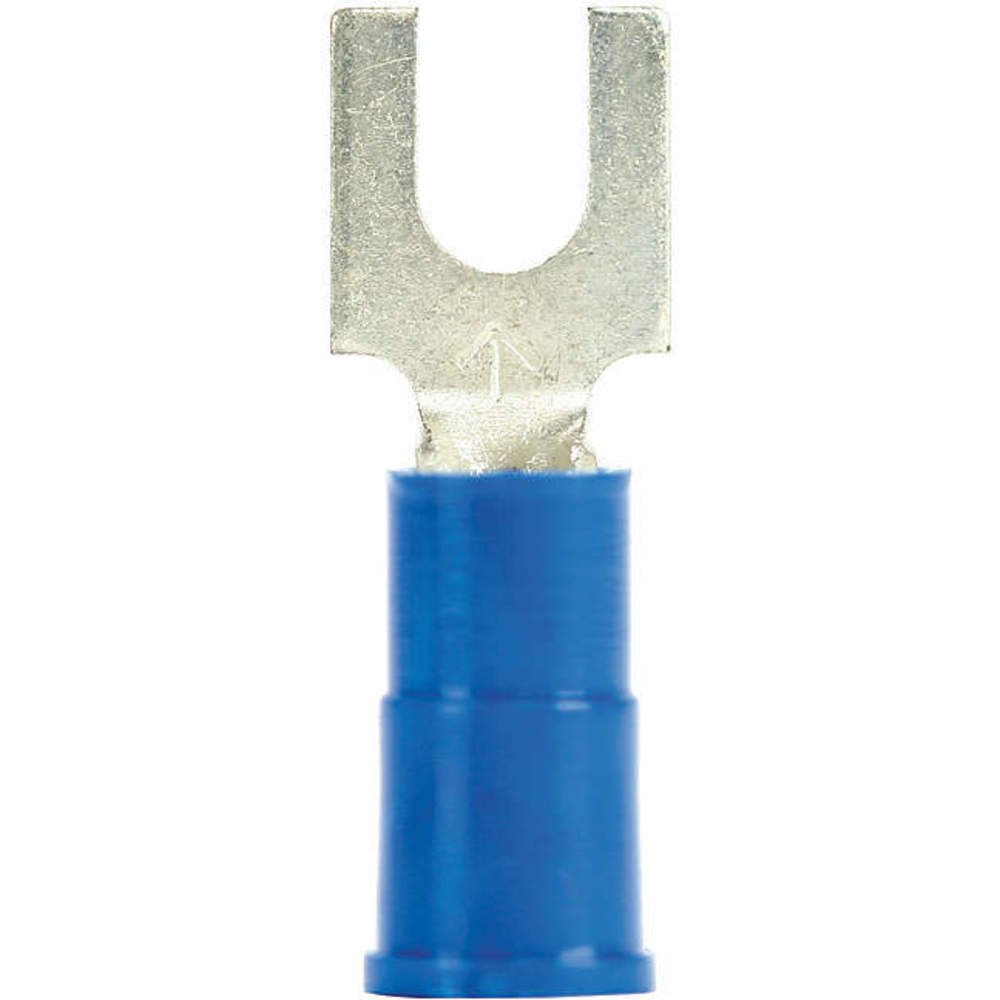

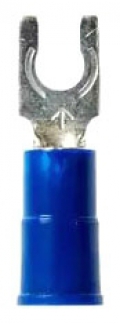

3M Lfv14-8Q 16-14Awg Vin Insd Term
- Brand: 3M
- PartNumber: LFV14-8Q
- PackageQuantity: 1
- Manufacturer: 3M
- Label: 3M
Attributes
| Key | Value |
|---|
| 3M Number | LFV14-8Q |
| Allowable Gauge Range | 16 - 14 |
| Alternate Mfr Part Numb. | 51128600191 |
| Angle | Straight |
| Barrel Length | 0.25 in |
| Barrel Length Type | Butted |
| Base Product Number | LFV14 |
| Brand | 3M |
| Category | Electrical Terminals, C. |
| Clearance | 0.25 in |
| Color | Blue |
| Color Family | Blue |
| Color: | Blue |
| Colour | Blue |
| Connection Material | Tin-Plated Copper |
| Connection Type | Crimp |
| Connection: | Fork |
| Connector Type | Locking Fork |
| Contact Finish | Tin |
| Contact Material | ETP Copper, Copper, ETP |
| Contact Plating | Tin |
| Country of Origin | US - United States, USA |
| Country of Origin (subj. | United States |
| ECCN | EAR99 |
| Fastening Mechanism | Locking |
| Features | Butted Seam |
| Finish | Tin |
| Fork Width | 0.3 in |
| Inside Diameter | 0.09 in |
| Insulation | Insulated |
| Insulation Color | Blue |
| Insulation Diameter | 0.170" (4.32mm) |
| Insulation Length | 0.7 in |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Item | Fork Terminal |

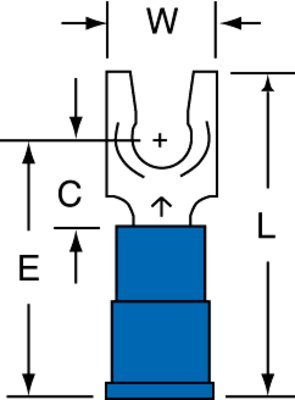

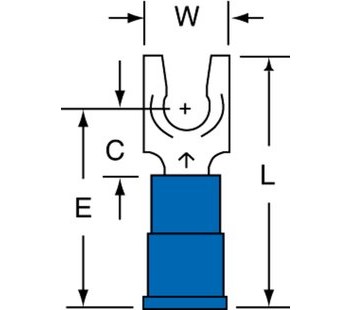

| Length - Overall | 0.880" (22.35mm) |
| Length - Ring Center to. | 0.250" (6.35mm) |
| Length - Termination | 0.450" (11.43mm) |
| Manufacturer | 3M |
| Material | Vinyl, Plastic |
| Material - Insulation | Vinyl |
| Material: | PVC |
| Max. Temp. | 221 Degrees F |
| Max. Voltage | 1,000 V |
| Maximum Insulation Outs. | 0.17 in |
| Maximum Wire Size | 14 AWG |
| Maximum Wire Size AWG | 14AWG |
| Mfr | 3M |
| Minimum Conductor Leg D. | 16 AWG |
| Minimum Wire Size | 16 AWG |
| Minimum Wire Size AWG | 16AWG |
| Mounting Type | Free Hanging (In-Line) |
| Number Of Terminals: | 25 per bag |
| Overall Length | 0.88 ", 22.35mm, 0.88 i. |
| Overall Width | 0.3 in |
| Package | Bulk |
| Package Quantity | 25 per bag, 10 bags per. |
| Packaging | 25 per Package |
| Product Status | Active |
| Seam | Butted |
| Series | Scotchlok Series, LFV, . |
| Shape | Butted Seam |
| Shrouded/Unshrouded | Unshrouded |
| Standard: | UL and CSA |
| Standards | CSA Certified, UL Listed |
| Stud Size | #8, M4 (#8) |
| Stud/Tab Size | 8 Stud |
| Sub Brand: | Highland |
| Terminal Connection | Crimp |
| Terminal Size: | 8 |
| Terminal Type | Locking, Spring, Snap |
| Termination | Crimp |
| Thickness | 0.76mm |
| Tongue Inside Opening | - |
| Tongue Width - Wire Con. | 0.3 in |
| Trade Name | Highland |
| Type | Locking, Fork, Fork Ter. |
| Type: | Locking |
| UNSPSC | 39121432 |
| UPC | 051128600191 |
| UPC Code | 51128600191 |
| Width | 7.62mm |
| Width - Outer Edges | 0.300" (7.62mm) |
| Wire Gauge | 14-16 AWG |
| Wire Range | 16 to 14 AWG |
| Wire Size | 14-16 AWG |
| Wire Size: | 16-14 Awg |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | RS Delivers | 842-0247 | 0.4128 | 25 | 25 | | 3M | | 0.4128 @ 25 |
| Digi-Key | 5129041 | 0.5704 | 1 | 25 | | 3M | | 0.5704 @ 25 |
 | rshughes.com | 051128-60019 | 7.06 | 25 | 25 | | 3M | | 7.06 @ 25 |
 | Zoro | G6079141 | 9.39 | 1 | 65 | | 3M | 0.05 | 9.39 @ 25 |
 | Platt.com | 0911775 | 10.57 | 1 | 57 | | 3M | | 10.57 @ 25 |
| Graybar | 25438196 | 10.5952 | 1 | 25 | | 3M | | 10.5952 @ 25 |
 | electricalparts.com | LFV14-8Q | 11.8384 | 1 | 31 | | 3M | | 11.8384 @ 25 |
| us.rs-online.com | 70233889 | 12.17 | 1 | 25 | | 3M | | 12.17 @ 25 |
| Newark | 94T2817 | 13.93 | 10 | 25 | | 3M | | 13.93 @ 25 |
 | Raptor Supplies | AF8DZU | 18.7156125 | 1 | 25 | | 3M | | 18.7156125 @ 25 |
 | gordonelectricsupply.com | LFV14-8Q | 73.9 | 1 | 25 | 455 | 3-M | | 73.9 @ 25 |
| Dale-Electric | LFV14-8Q | 80.62 | 1 | 25 | | 3M | | 80.62 @ 25 |
