- mpnMNG10-55PX-A
- brandname: 3-M
- manufacturername: 3-M

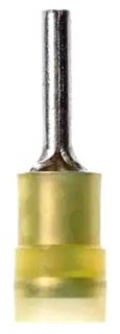

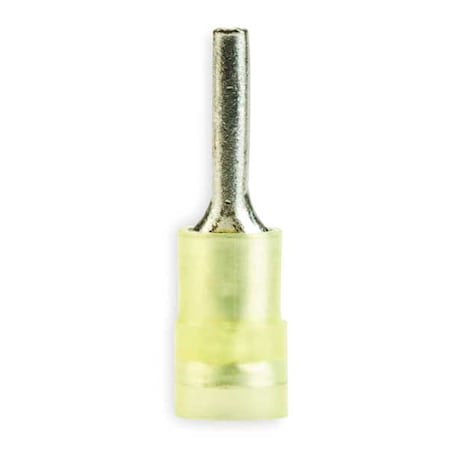

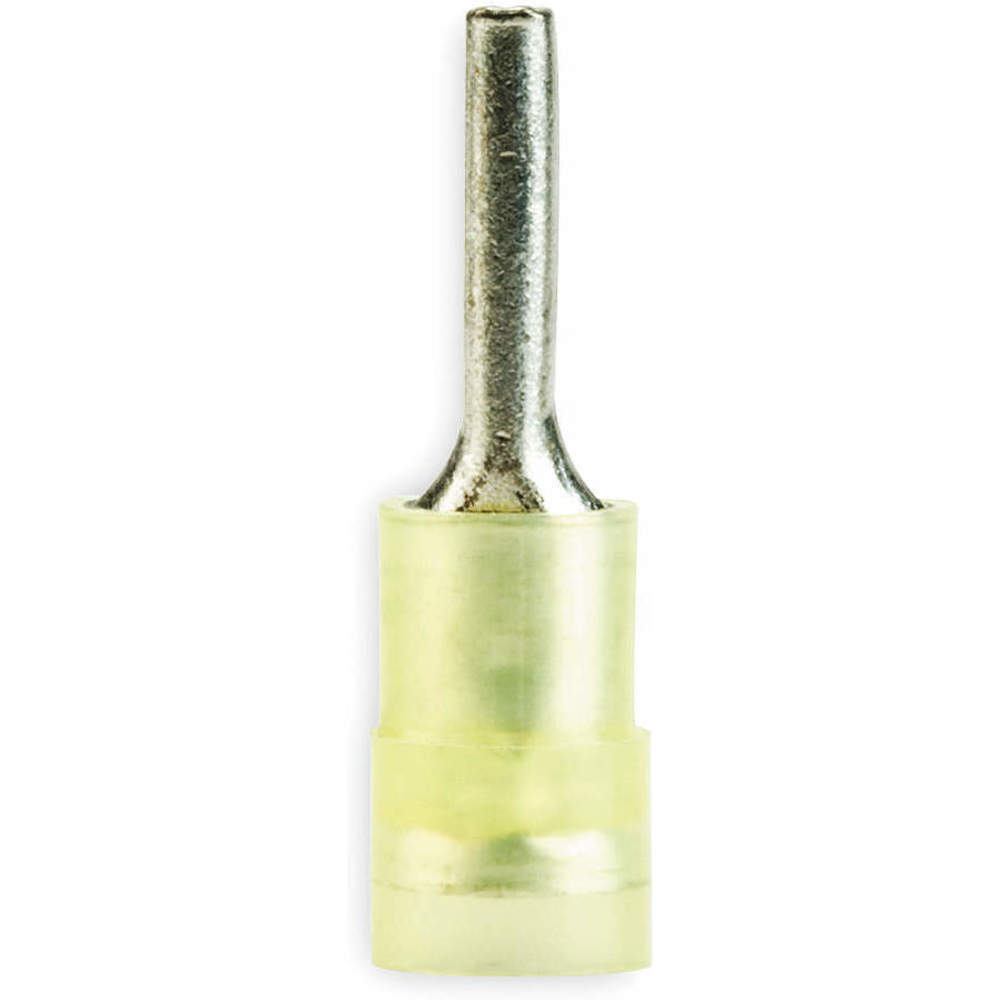

Scotchlok Pin Nylon Insulated, MNG10-55PX-A (Pack of 50)
- Brand: Scotchlok
- PartNumber: MNG10-55PX-A
- Model: MNG10 55PX A
- PackageQuantity: 50
- Binding: Misc.
- Manufacturer: 3M
- Label: 3M
Attributes
| Key | Value |
|---|
| 3M Number | MNG10-55PX-A |
| Allowable Gauge Range | 12 - 10 |
| Barrel Inside Dia. | 0.11 in |
| Barrel Inside Diameter | 0.11 in |
| Barrel Length | 0.25 in |
| Barrel Length Type | Butted Seam |
| Barrel Outside Diameter | 0.27 in |
| Brand | Scotchlok, 3M |
| Category | Electrical Terminals |
| Color | Yellow |
| Color Family | Yellow |
| Connection Material | Copper |
| Connection Type | Crimp |
| Contact Material | Copper |
| Country of Origin | TWN, TW - Taiwan |
| Current Stock | 57 |
| Diameter | 0.110 in |
| ECCN | EAR99 |
| For Wire Size | 10 AWG, 12 AWG |
| Inside Diameter | 0.09 in |
| Insulation Color | Yellow |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| International Shipping | No |
| Item | Pin Terminal |
| Manufacturer | 3M |
| Material | Nylon, Plastic |
| Max. Temp. | 221 Degrees F |
| Max. Voltage | 600 V |
| Maximum Insulation Outs. | 0.270 in |
| Maximum Operating Tempe. | 221 ?F |
| Maximum Wire Size | 10 AWG |
| Minimum Conductor Leg D. | 12 AWG |
| Minimum Wire Size | 12 AWG |
| Mpn | MNG10-55PX-A |

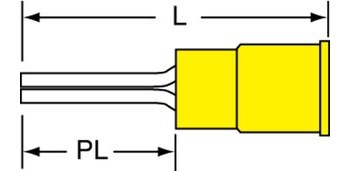

| Overall Length | 1.1 in, 1.06 in |
| Package Quantity | 50 per bottle, 500 per . |
| Pin Diameter | 0.11 in |
| Pin Length | 0.55 in |
| Pin Length (In.) | 0.55000000000000004 |
| Seam | Brazed |
| SKU | ZO-G0931917 |
| Standards | CSA Certified, UL Listed |
| SubCategory | Electrical |
| Terminal Connection | Crimp |
| Terminal Type | Pin |
| Trade Name | Scotchlok |
| Type | Insulation Grip, Pin, I. |
| UNSPSC | 39121432 |
| UPC | 0051128588649, 05112858. |
| Wire Range | 12 to 10 AWG |
| Wire Size Range | 12 AWG - 10 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | MNG10-55PX-A | 1.1 | 10 | 500 | | 3M | | 1.1 @ 500 |
| Mouser | 517-MNG10-55PX-A | 1.46 | 1 | 500 | | 3M | | 1.46 @ 500 |
 | Platt.com | 0154052 | 2.04 | 1 | 500 | | 3M | | 2.04 @ 500 |
 | sustainablesupply.com | C1195322 | 45.2 | 1 | 500 | | 3M | 0.26 | 45.2 @ 500 |
| Dale-Electric | MNG10-55PX-A | 50.53 | 1 | 500 | | 3M | | 50.53 @ 500 |
 | gordonelectricsupply.com | MNG10-55PX-A | 67.3 | 1 | 500 | 455 | 3-M | | 67.3 @ 500 |
 | Zoro | G0931917 | 87.95 | 1 | 500 | | 3M | 0.26 | 87.95 @ 500 |
 | simsupply.com | ZO-G0931917 | 94.54 | 1 | 500 | | 3M | | 94.54 @ 500 |
 | electricalparts.com | MNG10-55PX-A | 114.1392 | 1 | 500 | | 3M | | 114.1392 @ 500 |
 | Raptor Supplies | AD2NDF | 185.0666805 | 1 | 500 | | 3M | | 185.0666805 @ 500 |
| Graybar | 25362171 | 207.7824 | 1 | 500 | | 3M | | 207.7824 @ 500 |
 | rshughes.com | 051128-58864 | 650.0 | 50 | 500 | | 3M | | 650.0 @ 500 |
