Baldor Electric VL1205A

B07FN4B1K9

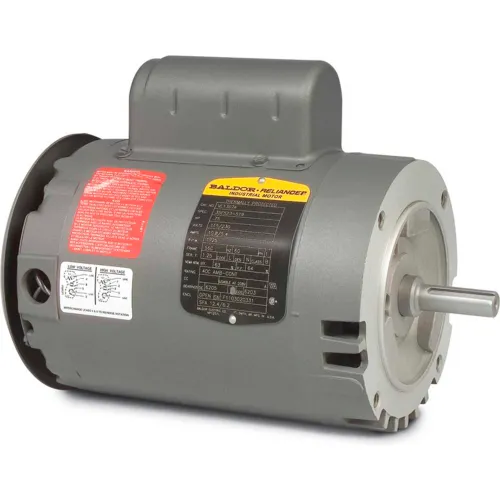

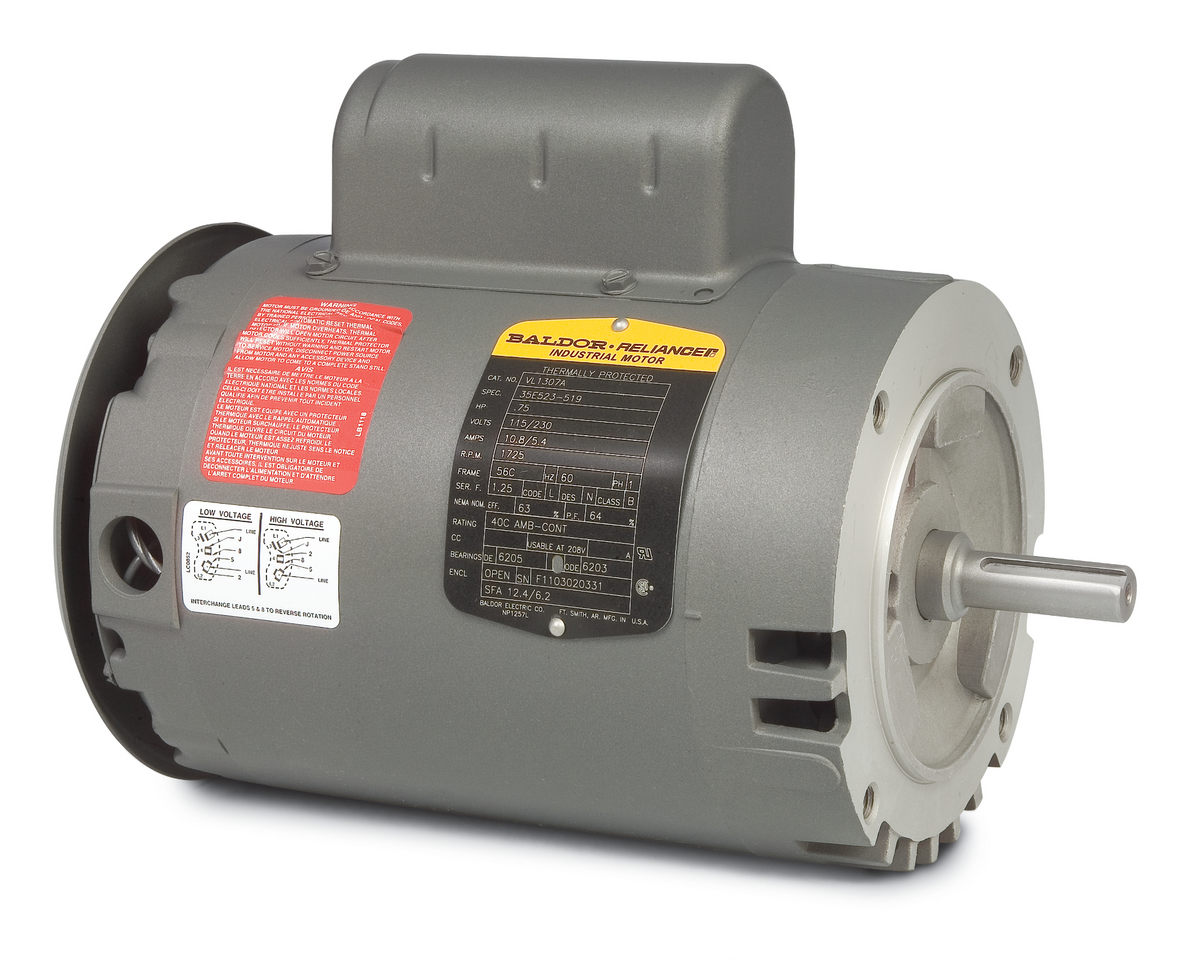

Baldor Electric, VL1205A.33HP, 3450RPM, 1PH, 230V;115V, 56C Frame, C-Face Flange, Footless, Open, Jet Pump Motor

Baldor Electric, VL1205A.33HP, 3450RPM, 1PH, 230V;115V, 56C Frame, C-Face Flange, Footless, Open, Jet Pump Motorzoom

Attributes

Key Value
Amps3.5/7
ApplicationPump Motor
BearingsBall
ConstructionRolled Steel
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency54.0%
EnclosureOPEN
Enclosure MaterialSteel
Enclosure TypeOPEN
Estimated Weight23.00
Family NameSingle Phase Open Family
FL Amps7/3.5
FL Efficiency54
Frame56C
Frame Type56C
Hertz60
Horsepower Rating0.33 HP
HP1/3, 0.33
Hz60
Insulation ClassB
ManufacturerBaldor Reliance
Manufacturer Model #34F037-0652G1
Maximum Ambient Tempera.40? C
MountingC-Face, Footless
Mounting TypeFlange Mount
Number of Speeds1
Overall Length11.32"
Part NumberVL1205A
Phase1, 1 Phase
Product TypeGeneral Purpose
RotationReversible
RPM3450 RPM, 3450, 3400 - .
SeriesGO1 Series
Service Factor1.75
Shaft Diameter0.625"
Ship Weight23 lbs.
Special FeaturesAutomatic Thermal Overl.
Speed (RPM)3450
Supply Voltage115/230 VAC
Thermal ProtectionAutomatic
Voltage110-120V, 230V, 115-230
Volts115/230
