Bonomi North America S800-1/4

B083X4LJ1T

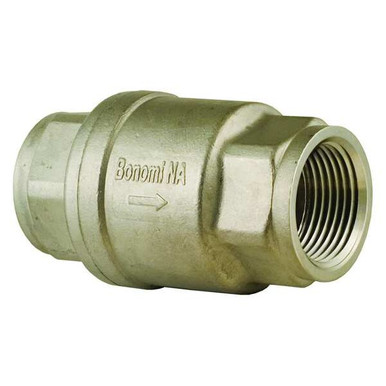

Bonomi North America S800-1/4 High Capacity Spring Loaded Stainless Steel Check Valve, 800 WOG, FNPT Threaded with P.T.F.E. Seat

Bonomi North America S800-1/4 High Capacity Spring Loaded Stainless Steel Check Valve, 800 WOG, FNPT Threaded with P.T.F.E. Seatzoom

Attributes

Key Value
Application - ValvesGeneral Purpose
Body MaterialCF8M 316 Stainless Steel
Body Material - Valves316 Stainless Steel
BrandBonomi
Connection TypeFNPT x FNPT
Connection Type - Check.FNPT x FNPT
Cracking Pressure - Che.0.5 psi
Current Stock97
Flow3.5 gpm
Flow - Valves3.5 gpm
Flow DesignSingle
International ShippingNo
Lead TimeExpected to ship in 1-2.
Length2 5/16 in
Material of ConstructionCF8M 316 Stainless Steel
Max. Pressure800 psi WOG
Max. Temp. - Valves352 Degrees F
Mounting Orientation - .Horizontal, Vertical
Mounting PositionAny
MpnS800-1/4
Overall Height1 11/32 in
Pipe or Tube Size1/4 in
Pipe or Tube Size - Che.1/4 in
Pipe Size1/4"
Seat Material - Check V.PTFE
Size1/4"
SKUZO-G3769258
Spring Material - Check.Stainless Steel
Sub-CategoryStainless Steel
SubCategoryPlumbing
Width1 11/32 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG376925848.251163Bonomi0.448.25 @ 1
thumbzoomsimsupply.comZO-G376925860.05197Bonomi60.05 @ 1
