Dayton Audio MX10-22

B096YBK67C

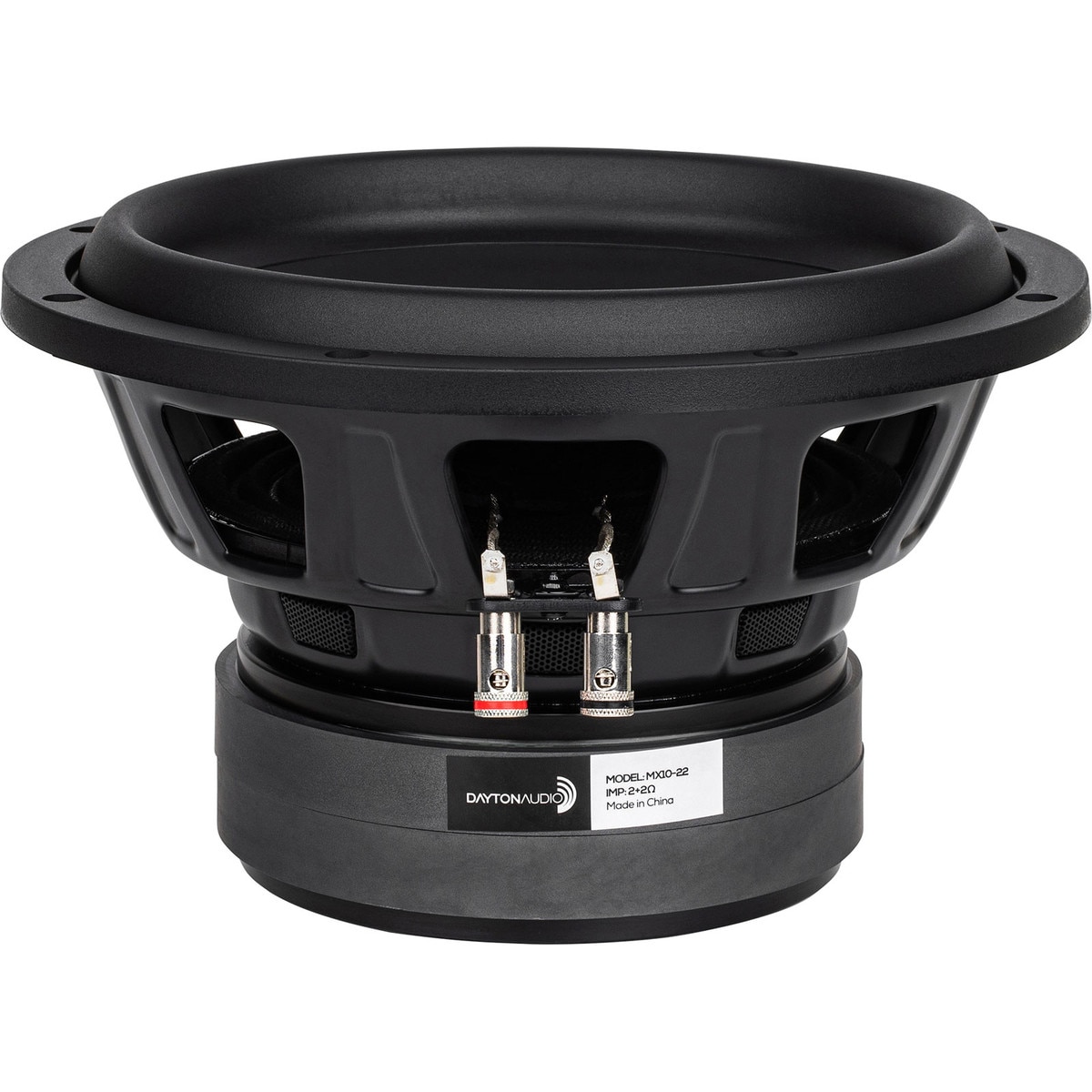

Dayton Audio MX10-22 10" Max-X High Excursion DVC Subwoofer 2 Ohms Per Coil 3200 Watt Max Car Audio Subwoofer

Dayton Audio MX10-22 10" Max-X High Excursion DVC Subwoofer 2 Ohms Per Coil 3200 Watt Max Car Audio Subwooferzoom

Attributes

Key Value
# Mounting Holes8
Baffle Cutout Diameter9.05"
Basket / Frame MaterialSteel
BL Product (BL)18.2T?m
Bolt Circle Diameter9.65
BrandDayton Audio
Compliance Equivalent V.0.84ft?
Cone MaterialPaper / Glass Fiber
DC Resistance (Re)4.76?
Depth6.27"
Diaphragm Mass Inc. Air.179g
Electromagnetic Q (Qes)0.53
Frequency Response25 to 500Hz
Impedance4?
Magnet MaterialFerrite
Maximum Linear Excursio.11.6mm
Mechanical Compliance o.0.13mm/N
Mechanical Q (Qms)3.59
ModelMX10-22
Nominal Diameter10"
Overall Outside Diameter10.33"
Part Number295-164
Power Handling (MAX)800 Watts
Power Handling (RMS)400 Watts
Resonant Frequency (Fs)32.6Hz
Sealed F356Hz
Sealed Volume0.55ft?
Sensitivity86.1dB 2.83V/1m
Surface Area of Cone (S.356.7cm?
Surround MaterialRubber
Total Q (Qts)0.46
Unit of MeasureEach
UPC848791006418
Vented F327Hz
Vented Volume1.8ft?
Voice Coil Diameter2.5"
Voice Coil Inductance (.4.33mH
Weight17.65

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomparts-express.com295-16499.981In StockDayton Audio17.6599.98 @ 1
