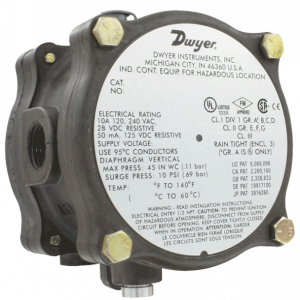

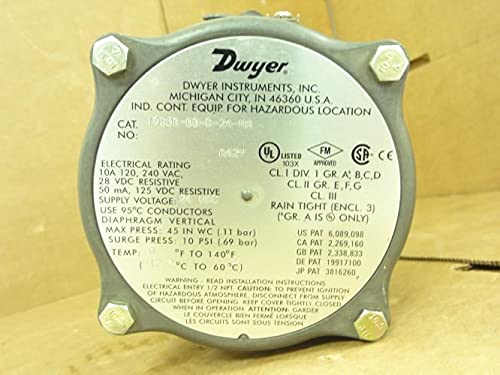

Dwyer 1950G-00-B-24-NA

B07PMYDNDR

Switch Range 07-15 Wc

Switch Range 07-15 Wczoom

Attributes

Key Value
Agency ApprovalsCSA, FM, UL
ApprovalsCE, CSA, FM, IECEx, UL
Comments-0.07-0.15 W.C
Contact TypeSPDT
Country of Origin (subj.United States
Current Rating10 A @ 120 VAC, 10 A @ .
Electrical ConnectionTerminal Block
Electrical ConnectionsInternal terminal block
Electrical Rating10A, 120/240 VAC, 28 VD.
Enclosure RatingNEMA 3 (IP54), NEMA 7 a.
Family SeriesDwyer Instruments Press.
Gauge Proof Pressure500 psig
Gross Weight3.335 lbs
Housing MaterialAluminum
ItemDifferential Pressure S.
Item Number1950G-00-B-24-NA
ManufacturerDwyer Instruments
Manufacturer Part Number1950G-00-B-24-NA
Mounting OrientationDiaphragm in vertical p.
Net Weight3.075 lbs
Operating FluidAir ; Gases
Port Size0.125 in
Power Requirements24 VDC ?10%
Power Supply24 VDC
Primary TypePressure Switch
Process Connection1/8 NPT Female
Process Connections1/8" female NPT
Product Series1950G
Product TypeDifferential Pressure S.
Range7 to 15 in H2O, 0.07 - .
Series1950G Series
ServiceAir and compatible comb.
Set Point AdjustmentScrew type on top of ho.
Switch Type1 Form C relay (SPDT)
Temperature Limits0 to 140?F. Note: Set p.
Weight2 lbs 15.7 oz

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRadwell1950G-00-B-24-NA420.01In StockDWYER420.0 @ 1
thumbzoomZoroG3268539447.01In Stock10Dwyer Instruments4.0447.0 @ 1
us.rs-online.com71314358475.831In StockDwyer Instruments475.83 @ 1
thumbzoomMegadepot1950G-00-B-24-NA505.01In StockDwyer2.0505.0 @ 1
thumbzoomheavydutydepot.com1950G-00-B-24-NA505.01In StockDwyer Instruments505.0 @ 1
thumbzoomGalco1950G-00-B-24-NA-DWYR510.01In StockDwyer Instruments3.335510.0 @ 1
thumbzoomusmegastore.com1950G-00-B-24-NA526.01In StockDwyer2.0526.0 @ 1
thumbzoomNewark82AK7548530.411DWYER530.4 @ 1
thumbzoommidwestapplianceparts.com1950G-00-B-24-NA-DW-P532.251In StockDwyer532.25 @ 1
thumbzoomcappusa.com3002623555.011In StockDwyer555.01 @ 1
Kele1950G-00-B-24-NA570.441In StockDwyer Instruments570.44 @ 1
thumbzoomindustrialstores.com1950G-00-B-24-NA573.911In Stock10Dwyer573.91 @ 1
alliedcontrols.com1950G-00-B-24-NA618.751In StockDwyer618.75 @ 1
thumbzoomNex Instrument1950G-00-B-24-NA679.01In StockDwyer679.0 @ 1
