ZORO SELECT 4FMD3

mpn4FMD3
brandname: GRAINGER APPROVED
manufacturername: GRAINGER APPROVED

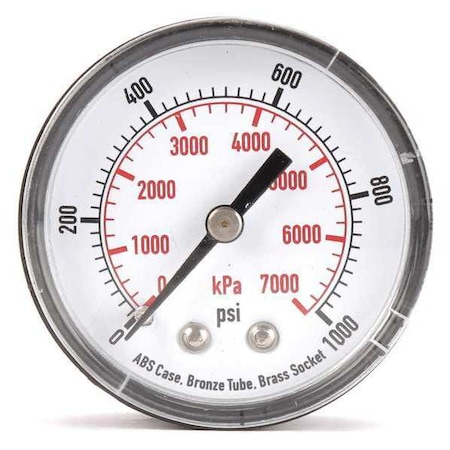

Pressure Gauge, Test, 2 in

Brand: ZORO SELECT
PartNumber: 4FMD3
Manufacturer: ZORO SELECT
Label: ZORO SELECT

Attributes

Key	Value
Accuracy	+/-3-2-3%
Accuracy Scale	Mid-Scale
Ambient Operating Tempe.	-40 Degrees to 150 Deg.
Basic Gauge Case Materi.	Plastic
Basic Gauge Lens Materi.	Plastic
Basic Gauge Sensor Mate.	Bronze
Basic Gauge Socket Mate.	Brass
Basic Gauge Wetted Parts	Brass / Bronze
Bezel Material	Crimped Stainless Steel
Blowout Safety Back	No
Calibration Certificate.	No
Case Color	Black
Case Material - Gauge	Plastic
Cleaned for Oxygen Serv.	No
Color	Black
Connection Location	Center Back
Connection Size	1/4 in NPT
Country of Origin (subj.	China
Dial Color	White
Dial Size (In.)	2
Dry Dampening Feature	None
Field Fillable	No
For Use With	Air and Noncorrosive Fl.
Freeze Resistant Moveme.	No
Gauge Accuracy	+/-3-2-3%
Gauge Application	Test
Gauge Case Color	Black
Gauge Case Liquid	None
Gauge Case Material	ABS plastic
Gauge Connection Locati.	Center Back
Gauge Connection Size	1/4 in
Gauge Connection Type	MNPT
Gauge Lens Material	Acrylic
Gauge Nominal Dial Size	2 in
Gauge Panel Mountable	No
Gauge Primary Range Sma.	20
Gauge Primary Range Uni.	psi
Gauge Primary Range Val.	0 to 1000
Gauge Secondary Range U.	kPa
Gauge Secondary Range V.	0 to 7000
Gauge Sensor Material	Bronze
Gauge Socket Material	Brass
Gauge Wetted Parts	Brass / Bronze
Hazardous Location Rati.	Not Rated
Includes Calibration Ce.	No
Includes Mounting Hardw.	No
Includes Vent Plug	No
IP/NEMA Rating	Not Rated
Item	Commercial Pressure Gau.
Lens Material	Acrylic
Lens Material - Gauge	Plastic
Liquid Filled	No
Liquid-Filled Case	No
Material	ABS plastic
Max. Pressure (PSI)	1000
Nominal Dial Size	2 in
Non-Sparking	No
Operating Temp. Range	-40 Degrees to 150 Deg.
Panel-Mountable	No
Pressure and Vacuum Gau.	Pressure Gauge
Pressure Gauge Type	General Purpose Dial Pr.
Pressure Range Type	Pressure
Primary Graduations	1
Primary Pressure Range	0 to 1,000
Primary Scale Minor Gra.	1, 2
Primary Scale Units	psi
Process Connection Gend.	Male
Process Connection Loca.	Center Back
Process Connection Size	1/4 in
Process Connection Type	NPT
Range	0 to 1000 psi, 0 to 700.
Removable Bezel	No
Scale Type	Dual
Secondary Pressure Range	0 to 7,000
Secondary Range	0 to 7,000 kPa
Secondary Scale Units	kPa
Sensor Material	Bronze
Smallest Graduation	20 psi
Socket Material	Brass
Vibration Resistance	None

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G0045613	7.85	1	In Stock		Zoro Select	0.18	7.85 @ 1
