GRAINGER APPROVED 4FMY9

B0763K3M5F

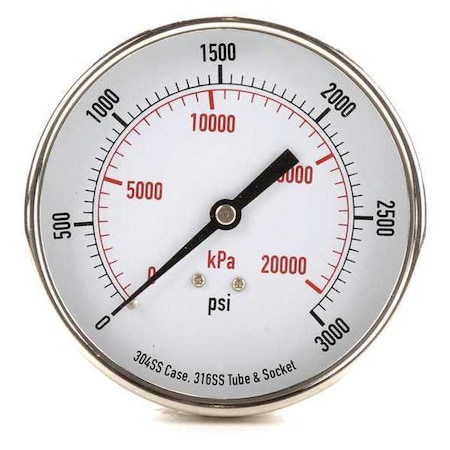

Pressure Gauge, Test, 3-1/2 in

Pressure Gauge, Test, 3-1/2 inzoom

Attributes

Key Value
Accuracy+/-3-2-3%
Accuracy ScaleMid-Scale
Ambient Operating Tempe.-40 Degrees to 150 Degr.
ApplicationTest and Measurement
Basic Gauge Case Materi.Stainless Steel
Basic Gauge Socket Mate.Stainless Steel
Bezel MaterialCrimped Stainless Steel
Blowout Safety BackNo
Case ColorSilver
Case ColourSilver
Cleaned for Oxygen Serv.No
ColorStainless Steel
Connection LocationCenter Back
Connection Size1/4 in NPT
Dial ColourWhite
Dial Size (In.)3-1/2
Dry Dampening FeatureNone
Field FillableNo
For Use WithAir, Water, and Oils in.
Freeze Resistant Moveme.No
Gauge ApplicationTest
Gauge Case LiquidNone
Gauge Case Material304 Stainless steel
Gauge Connection Size1/4 in
Gauge Connection TypeMNPT
Gauge Nominal Dial Size3 1/2 in
Gauge Primary Range Sma.50
Gauge Primary Range Uni.psi
Gauge Primary Range Val.0 to 3000
Hazardous Location Rati.Not Rated
Includes Calibration Ce.No
Includes Mounting Hardw.No
Includes Vent PlugNo
IP/NEMA RatingNot Rated
ItemCommercial Pressure Gau.
Lens MaterialAcrylic
Liquid FilledNo
Liquid-Filled CaseNo
Material304 Stainless steel
Mounting TypeStem-Mount
Nominal Dial Size3 1/2 in
Non-SparkingNo
Operating Temp. Range-40 Degrees to 150 Deg.
Panel-MountableNo
Pressure and Vacuum Gau.Pressure Gauge
Pressure Gauge TypeGeneral Purpose Dial Pr.
Pressure Range TypePressure
Primary Pressure Range0 to 3,000
Primary Scale Minor Gra.50
Primary Scale Unitspsi
Process Connection Gend.Male
Process Connection Loca.Center Back
Process Connection Size1/4 in
Process Connection TypeNPT
Range0 to 20,000 kPa, 0 to 3.
Removable BezelNo
Scale TypeDual
Secondary Pressure Range0 to 20,000
Secondary Scale UnitskPa
Sensor Material316 Stainless Steel
Socket Material316 Stainless Steel
Vibration ResistanceNone
