Hammond Manufacturing 1418H6

B005T6QKB8

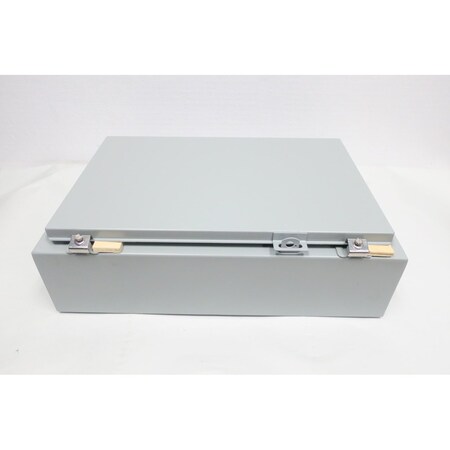

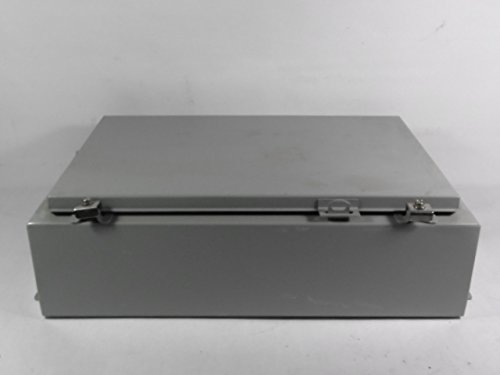

Hammond Manufacturing 1418H6 NEMA12 PNL ENCL 24X16X6

Hammond Manufacturing 1418H6 NEMA12 PNL ENCL 24X16X6zoom

Attributes

Key Value
Alternate Part No.546-1418H6
ApplicationDesigned to house elect.
ApprovalsCE, CSA, UL
Area (L x W)384in? (2477cm?)
Back Panel NumberIncluded
Base Product Number1418
BrandHammond Mfg., Hammond M.
Capacity2304 cu-in
Catalog Number1418H6
CategoryBoxes, Enclosures, Racks
ColorGray
CompositionMetallic
Container TypeBox
Country of OriginCanada
Cover DesignHinged
Cover TypeContinuous Hinged
Cubic Capacity2304 Cubic in
Delivery RestrictionsDue to size or weight o.
Depth6 in
Depth (In)6.00
DescriptionBOX STEEL GRAY 24"L X 1.
Description:N12 Wallmount Encl w/pa.
DesignHinged Door, Lid
Detailed DescriptionBox Metal, Steel Gray H.
Digi-Key Part Number1418H6-ND
Dimensions (H x W x D)24 x 16 x 6"
Door DesignHinged (Single Door)
Enclosure MountingWall Mount
Enclosure Series1418
Estimated Weight46
Family SeriesHammond Manufacturing E.
FeaturesInterior Panels, Mounti.
FinishANSI 61 Gray, Powder Co.
Gross Weight46 lbs
Height24 in, 6.000" (152.40mm)
Height (In)24.00
IEC RatingIP54
Inner PanelIncluded
IP RatingIP54
Item Number1418H6
Item TypeN12 Wallmount Encl w/pa.
Latching MechanismClamps
LockPadlock
Locking FeatureClamp
Made in USANo
ManufacturerHammond Manufacturing C.
Manufacturer Part No.1418H6
Manufacturer Part Number1418H6
Manufacturer Product Nu.1418H6
Manufacturer Standard L.4 Weeks
MaterialSteel, Metal, Mild Stee.
Material Flammability R.-
MFG Part #:1418H6
MfrHammond Manufacturing
MountingFeet, Wall
Mounting TypeWall
Nema Rating12
NEMA RatingNEMA 12, 12, 13
NEMA Type12 and 13
Net Weight46 lbs
Nominal Depth6 "
Nominal Height24 "
Nominal Width16 "
Number of Doors1
Options IncludedGasketed Cover, Ground .
Outside Depth152 mm
Outside Height610 mm
Outside Width406 mm
PackageBox
Panel Height533 mm
Panel IncludedYes
Panel Size13 in W x 21 in H
Panel Width330 mm
Part Number1418H6
ProductWall Mount Enclosures
Product CategoryElectrical Enclosures
Product Series1418
Product StatusActive
RatingsIP54, JIC EGP-1-1967, N.
RoHSYes
Series1418, 1418 Series
Shipping InfoShipped from Digi-Key
Size24 in x 16 in x 6 in
Size / Dimension24.000" L x 16.000" W (.
Special FeaturesFormed 14 gauge steel b.
Standardcsa, ul, ccsaus, ce
StandardsUL, CSA, IEC, RoHS
Sub Brand1418 Series
Supplier:Hammond Manufacturing
Thickness14 Gauge
TypeSingle Door, Junction B.
Unit Weight20.865 kg
UPC623980367002, 062398036.
UPC Code623980367002
UPC:623980367002
VentilationNot Available
Weight46 lbs (20.9 kg)
Width16 in
Width (In)16.00
Window/Clear CoverNo

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com1418H6295.561In StockHAMMOND MFG295.56 @ 1
thumbzoomCarlton Bates Company62398036700357.261In StockHAMMOND MANUFACTURING357.26 @ 1
LCOMP62398036700357.261In StockHammond357.26 @ 1
thumbzoomSolutions Direct1418H6418.951In StockHammond Manufacturing418.95 @ 1
thumbzoomDigi-Key2359499423.681In StockHammond Manufacturing46.0423.68 @ 1
Hawk Electronics1418H6428.21In StockHammond Mfg.428.2 @ 1
thumbzoomWalker Industrial1418H6429.251In Stock17Hammond Manufacturing429.25 @ 1
thumbzoomNewark24B6113434.8117HAMMOND434.81 @ 1
us.rs-online.com70305865436.711In StockHammond Manufacturing436.71 @ 1
thumbzoomturtle.comHMC 1418H6469.121In StockHammond Manufacturing469.12 @ 1
Dale-Electric1418H6475.571In StockHammond Manufacturing Co., Inc.475.57 @ 1
thumbzoommotorsandcontrol.com1418H6490.581In StockHammond Manufacturing46.0490.58 @ 1
thumbzoomGalco1418H6-HMND491.21In StockHammond Manufacturing46.0491.2 @ 1
thumbzoomgordonelectricsupply.com1418H6492.01In StockHAMMOND MFG492.0 @ 1
thumbzoomAutomation Direct1418H6499.0115Hammond46.0499.0 @ 1
kscdirect.comHAM 1418H6515.051In StockHammond Manufacturing515.05 @ 1
thumbzoomswatee.com1418H6547.2715Hammond547.27 @ 1
thumbzoomZoroG007455251673.9911Hammond673.99 @ 1
thumbzoomcrescentelectric.com1248660721.431In StockHammond Mfg.721.43 @ 1
