- mpnGX240UT2QA2
- brandname: Honda Engines
- manufacturername: Honda Engines

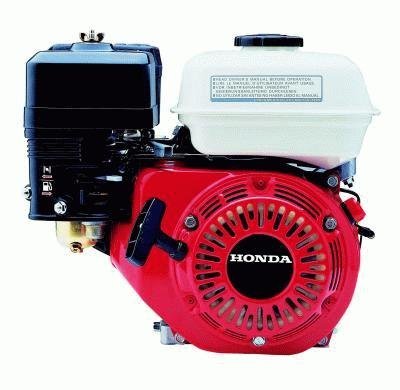

Honda Standard Horizontal Type Engine GX240-QA2, 7.9 Net HP


- Brand: Honda
- PartNumber: GX240UT2QA2
- Model: GX240-QA2
- PackageQuantity: 1
- Manufacturer: Honda
- Label: Honda
Attributes
Key | Value |
---|
Air Cleaner | Dual element |
Air Cleaner Type | Dual element |
Application | Chipper, shredder, pres. |
Auto Compression Release | Yes |
Bolt Circle (in.) | 5, 6 1/2 |
Bore | 77 mm |
Bore x Stroke (in.) | 2.9 x 2.3 |
Brand | Honda, <a href="categor. |
Carburetor | Float, external vent, B. |
Choke Control | Manual |
Compression Ratio | 8.5:1 |
Cooling System | Air cooled |
Crankshaft | Q-type |
Cylinder Bore | Cast iron |
Cylinders (qty.) | 1 |
Dimensions L x W x H (i. | 15 x 16 7/8 x 16 1/8 |
Displacement | 270 cm3 |
Engine Displacement (cc) | 270 |
Engine Series | Honda GX 240 |
Engine Type | Air Cooled 4 Stroke OHV. |
EPA/CARB Approval (Cali. | Yes |
Fuel | Unleaded 86 Octane or H. |
Fuel Filter | Fuel tank filler neck s. |
Fuel Tank | Standard (White) |
Fuel Tank Capacity | 5.6 US qts (5.3 liters) |
Fuel Tank Capacity (qt.) | 5.6 |
Fuel Type | Gasoline |
Governor System | Centrifugal Mass Type, . |
Ignition System | Digital CDI with Variab. |
Item# | 6086 |
Low Oil Alert | Yes |
Low Oil Shutdown | Yes |
Lubrication System | Splash, Forced splash |
Manufacturer's Warranty | 3 year limited warranty |
Max. RPM | 3,600 |
Mounting Base L x W (in. | 7 11/16 x 3 3/16?3 11/16 |
Muffler Included | Standard, exhaust pipe . |
Net Power Output | 7.9 HP (5.9 kW) @ 3,600. |
Net Power Output (HP) | 7.9 (5.9 kW) at 3,600 . |
Net Torque | 13.5 lb ft (18.3 Nm) @ . |
Net Torque (lbs./ft.) | 13.5 (18.3 Nm) at 2,50. |
Oil Capacity | 1.16 US qt (1.1 L) |
Oil Capacity (qt.) | 1.16 |
PTO Height (in.) | 5 1/4 |
PTO Shaft Rotation | Counterclockwise (from . |
Shaft Diameter (in.) | 1 |
Shaft End Tapped (Diame. | 7/16?20 |
Shaft Keyway (in.) | 1/4 |
Shaft Length (in.) | 3 31/64 |
Shaft Output | Horizontal |
Shaft Rotation (From PT. | Counterclockwise |
Ship Weight | 65.0 lbs |
Start | Pull Start |
Start Type | Recoil |
Stroke | 58 mm |
Throttle Control | Remote (wire) |
All Prices
Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
---|
  | propartsdirect.net | GX240UT2QA2 | 659.0 | 1 | In Stock | | Honda Parts | | 659.0 @ 1 |
| sceclean.com | GX240UT2QA2 | 841.6 | 1 | In Stock | | Honda | | 841.6 @ 1 |
