CAI - JOHNSON CONTROLS T-4506-201

B07HLVCYHD

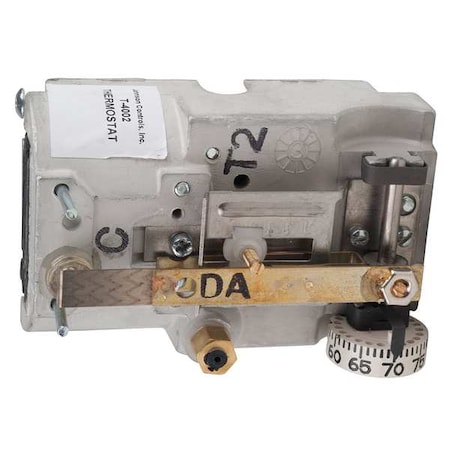

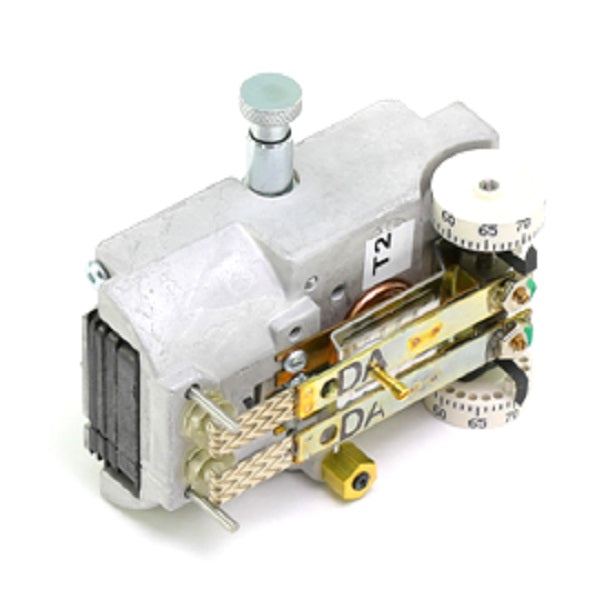

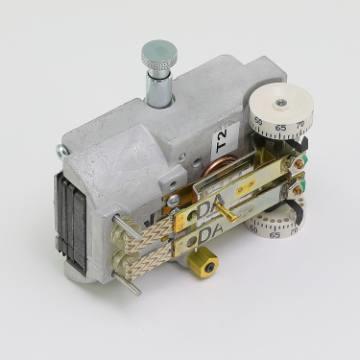

Johnson Controls Pneumatic Thermostat, DA, 55 to 85F

Johnson Controls Pneumatic Thermostat, DA, 55 to 85Fzoom

Attributes

Key Value
1 Pipe / 2 Pipe2 Pipe
ActionDirect
Action Type - Pneumatic.Direct Acting
Air Connection Outside .1/8 in
Air Connections5/32 in Barb
Air Consumption20 scim
Air Flow Capacity400 scim
Air Flow OutputHigh Volume
ApplicationHeat or Cool
Best Sellers RankSee Top 100 in Tools & .
BrandJohnson Controls
CommentsHorizontal Mounting
Control Air Pressure3 to 15 psi
Control Air Pressure Se.13 psig (Day)/ 25 psig .
Control TypeExposed Dial
Country of OriginMEXICO
Cover IncludedNo
Current Stock3
Date First AvailableJuly 5, 2012
Depth1 3/4 in
Differential TypeAdjustable
Family SeriesJohnson Controls Thermo.
Fitting ConnectionBarbed 5/32 in
Gross Weight0.45 lbs
GTIN645220279333
Heating / CoolingHeating and Cooling
Height3.900, 2 3/32 in
Includes CoverNo
International ShippingNo
ItemPneumatic Thermostat
Item model numberT-4506-201
Item NumberT-4506-201
Key FeaturesElement Identification .
Lead TimeExpected to ship in 1-2.
Length2.850
Manual Indexing SwitchYes
ManufacturerJohnson Controls, Johns.
Manufacturer Part NumberT-4506-201
Max. Air Pressure25 psi
Max. Ambient Temp.135 Degrees F
Maximum Air Pressure25 psig
Maximum Control Tempera.85 Degrees F
Minimum Control Tempera.55 Degrees F
Mounting DirectionHorizontal
Mounting LocationWall
Mounting StyleHorizontal
MpnT-4506-201
Net Weight0.0624 lbs
No. of Pipes2 Pipe
Number of DialsDual
Number of Pipes2
Overall Depth1 3/4 in
Overall Height2 1/8 in
Overall Width3 1/8 in
Package Quantity1
Pneumatic Thermostat Ty.Day/Night
Product Dimensions4.2 x 3.8 x 2.9 inches;.
Product SeriesT-4506 Dual Temperature.
Product with faster shi.true
Reverse Acting / Direct.Direct Acting
Sensor TypeBi-Metallic Spring
SetpointsDay/Night
Shippingundefined (Fixed Shippi.
Single Temp. / Dual Tem.Dual Temperature
Size MeasureIN
SKUZO-G5083863
Temp Setting Range (F)55-85 ?F
Temp. Control Range55 Degrees to 85 Degre.
Temperature Output Sett.Dual Temperature
Temperature ScaleCelsius/Fahrenheit
Temperature Sensitivity0.75 to 4.0 psig/ Degre.
Temperature SettingsDual Temperature
Thermostat ActionDirect - 15 psig (Day),.
Thermostat ApplicationHeating and Cooling
Throttling Range1 to 5 psi
UNSPSC41112209
Weight0.50, 0.480
Weight MeasureLB
Width3 1/8 in, 4.300

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB004H32P2W215.521In Stock2Johnson Controls Inc215.52 @ 1
thumbzoomsustainablesupply.comC1135083231.581In StockJohnson Controls0.35231.58 @ 1
hvacdiscountstore.comJOH--T-4506-201239.81159JOHNSON CONTROLS239.81 @ 1
thumbzoomRadwellT-4506-201260.011JOHNSON CONTROLS260.0 @ 1
thumbzoommidwestapplianceparts.comT-4506-201-JO-P266.731In StockJohnson Controls266.73 @ 1
thumbzoomZoroG5083863269.99119Johnson Controls0.35269.99 @ 1
thumbzoomcappusa.com97477270.62114Johnson Controls270.62 @ 1
thumbzoomgsistore.comT-4506-201271.33125Johnson Controls271.33 @ 1
thumbzoomwaterpumpsnow.comT-4506-201278.31In StockJohnson2.0278.3 @ 1
alliedcontrols.comT-4506-201294.171In StockJohnson Controls294.17 @ 1
thumbzoomhomeessentialsdirect.comT-4506-201298.571In StockJohnson Controls Inc298.57 @ 1
grainger.caJHCT4506201304.33045581In StockJOHNSON CONTROLS0.35304.3304558 @ 1
thumbzoomHD Supply233293311.991In StockJohnson Controls0.48311.99 @ 1
thumbzoomblackhawksupply.comT-4506-201317.451In StockJohnson Controls317.45 @ 1
thumbzoomfurnacepartsource.comT-4506-201319.05123Johnson Controls319.05 @ 1
thumbzoomVoomi SupplyT-4506-201321.61In StockJohnson Controls321.6 @ 1
thumbzoomindustrialstores.comT-4506-201324.15130Johnson Controls324.15 @ 1
thumbzoomsimsupply.comZO-G5083863327.8913Johnson Controls327.89 @ 1
thumbzoomState SupplyJC1271375.35129Johnson Controls0.5375.35 @ 1
thumbzoomGalcoT-4506-201-JHSN402.9111Johnson Controls0.45402.91 @ 1
