Johnson Controls T-4506-203

mpnT-4506-203
brandname: Johnson Controls
manufacturername: Johnson Controls

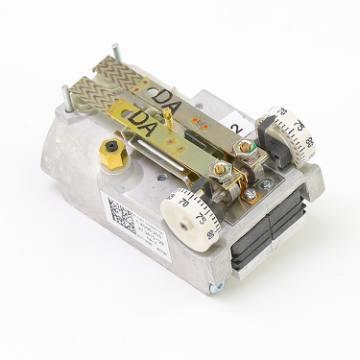

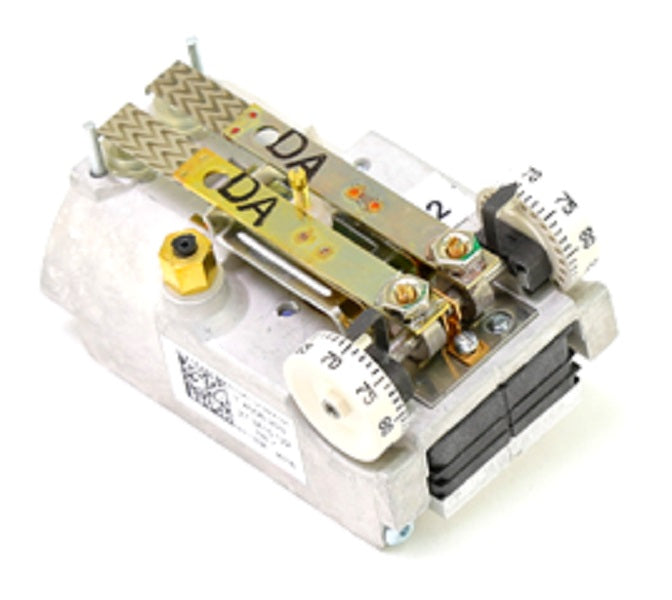

Johnson Controls T-4506-203 Dual Temperature Thermostat Without Indexing Switch, Direct Acting, Horizontal Mounting

Brand: Johnson Controls
PartNumber: T-4506-203
Model: T-4506-203
PackageQuantity: 1
Binding: Misc.
Manufacturer: Johnson Controls
Label: Johnson Controls

Attributes

Key	Value
1 Pipe / 2 Pipe	2 Pipe
Action	Direct
Action Type - Pneumatic.	Direct Acting
Air Connection Outside .	1/8 in
Air Connections	5/32 in Barb
Air Consumption	20 scim
Air Flow Capacity	400 scim
Air Flow Output	High Volume
Application	Heat or Cool
Best Sellers Rank	See Top 100 in Industri.
Brand	Johnson Controls
Comments	Horizontal Mounting
Control Air Pressure	3 to 15 psi
Control Air Pressure Se.	13 psig (Day)/ 25 psig .
Control Type	Exposed Dial
Country of Origin	MEXICO
Cover Included	No
Current Stock	3
Date First Available	January 23, 2014
Depth	1 3/4 in
Differential Type	Adjustable
Family Series	Johnson Controls Thermo.
Fitting Connection	Barbed 5/32 in
Gross Weight	0.4 lbs
GTIN	645220279326
Heating / Cooling	Heating and Cooling
Height	3.700, 2 3/32 in, 7.00
Includes Cover	No
International Shipping	No
Is Discontinued By Manu.	No
Item	Pneumatic Thermostat
Item Dimensions LxWxH	4.3 x 2.9 x 3.8 inches
Item model number	T-4506-203
Item Number	T-4506-203
Item Weight	0.3 Pounds
Key Features	Element Identification .
Lead Time	Expected to ship in 1-2.
Length	2.900
Manual Indexing Switch	No
Manufacturer	Johnson Controls
Manufacturer Part Number	T-4506-203
Material	HAWA
Max. Air Pressure	25 psi
Max. Ambient Temp.	135 Degrees F
Maximum Air Pressure	25 psig
Maximum Control Tempera.	85 Degrees F
Minimum Control Tempera.	55 Degrees F
Mounting Direction	Horizontal
Mounting Location	Wall
Mounting Style	Horizontal
Mpn	T-4506-203
Net Weight	0.0624 lbs
No. of Pipes	2 Pipe
Number of Dials	Dual
Number of Pipes	2
Overall Depth	1 3/4 in
Overall Height	2 1/8 in
Overall Width	3 1/8 in
Package Quantity	1
Pneumatic Thermostat Ty.	Day/Night
Product Dimensions	4.3 x 2.9 x 3.8 inches;.
Product Series	T-4506 Dual Temperature.
Product with faster shi.	true
Reverse Acting / Direct.	Direct Acting
Sensor Type	Bi-Metallic Spring
Setpoints	Day/Night
Shipping	undefined (Fixed Shippi.
Single Temp. / Dual Tem.	Dual Temperature
Size Measure	IN
SKU	ZO-G5063983
Temp Setting Range (F)	55-85 ?F
Temp. Control Range	55 Degrees to 85 Degre.
Temperature Output Sett.	Dual Temperature
Temperature Scale	Celsius/Fahrenheit
Temperature Sensitivity	0.75 to 4.0 psig/ Degre.
Temperature Settings	Dual Temperature
Thermostat Action	Direct - 15 psig (Day),.
Thermostat Application	Heating and Cooling
Thermostat Type	HVAC
Throttling Range	1 to 5 psi
UNSPSC	41112209
Weight	0.430, 0.40
Weight Measure	LB
Width	3 1/8 in, 4.250
