Leeson Electric 110041.00

B0773VKFPV

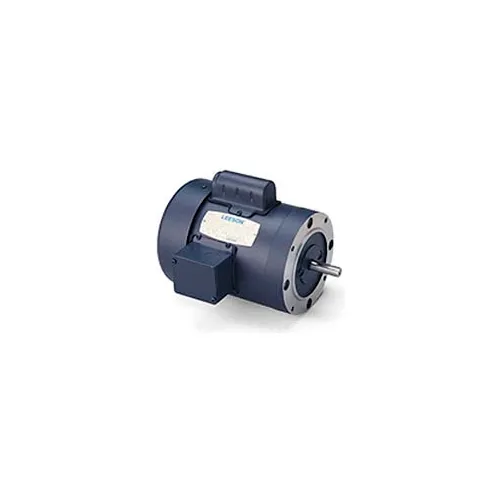

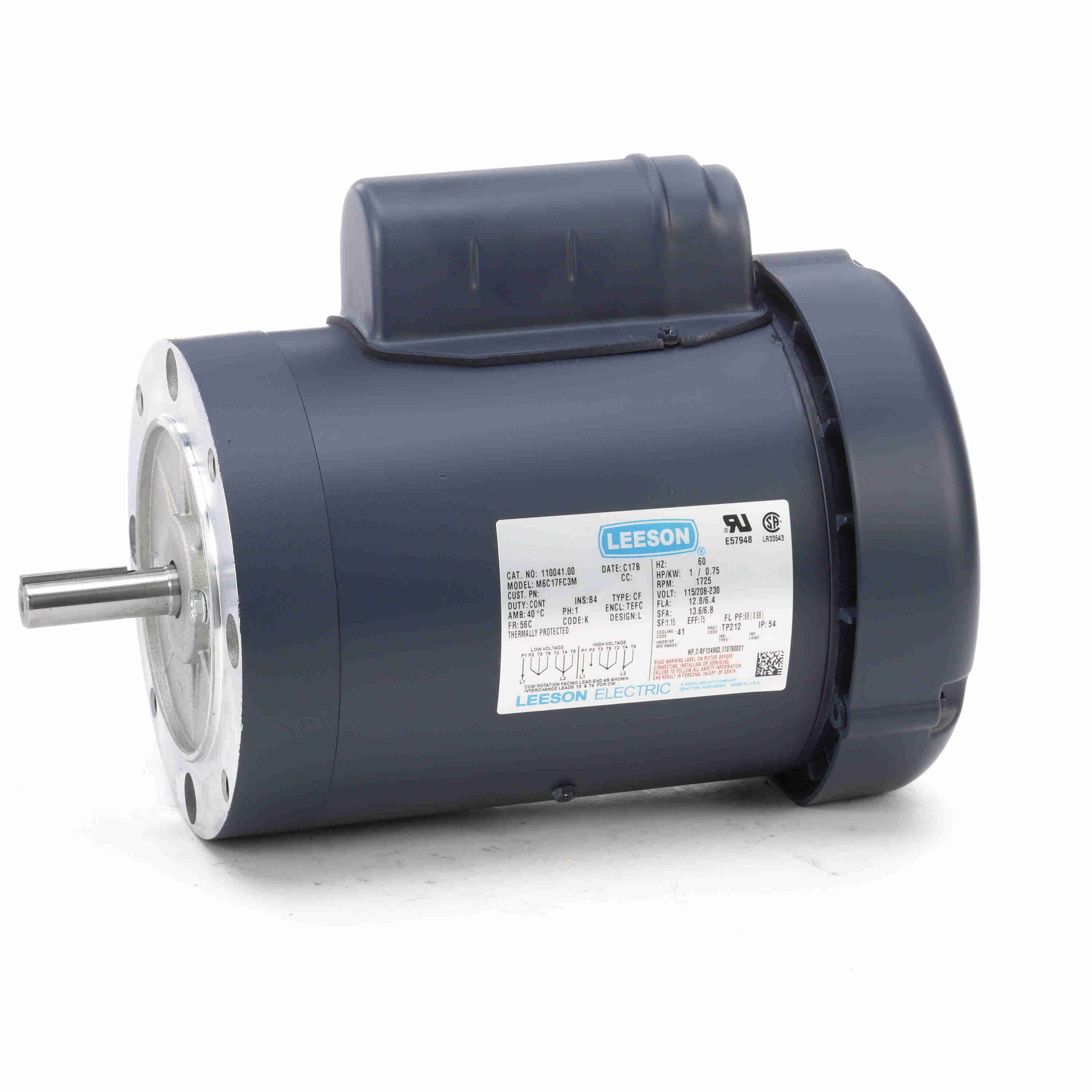

Leeson Electric, 110041.00, 1HP, 1725RPM, 1PH, 115V;208V;230V, 56C Frame, C-Face Flange, Footless, TEFC, General Purpose Motor

Leeson Electric, 110041.00, 1HP, 1725RPM, 1PH, 115V;208V;230V, 56C Frame, C-Face Flange, Footless, TEFC, General Purpose Motorzoom

Attributes

Key Value
Amperage Rating12.8/6.4 A
Amps12.8/6.4
Application TypeCompressor Motors, Fan .
ApprovalsCSA, UL
Bearing TypeBall
BearingsBall
CategoryElectric Motor
Class/GroupM6C17FC3
CompositionSteel
ConstructionRolled Steel
Country of Origin (subj.United States
Description:1HP..1725RPM.56.TEFC./V.
Dimensions11.98 in L
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency75, 75.0%
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialRolled Steel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight29.00
Family SeriesLeeson Motors, General .
FL Amps12.8/6.4
FL Efficiency75
Frame56C
Frame MaterialRolled Steel
Frame RemarksFOOTLESS
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower1 hp
HP1
Hz60
Insulation ClassB, Class B
Item ConditionFACTORY NEW
Item Number110041.00
KW0.75
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number110041.00
MaterialRolled Steel
Maximum Ambient Tempera.40? C
MFG Part #:110041.00
Model NumberM6C17FC3
Motor Shell Length6.50"
Motor TypeCapacitor Start
MountingRound, FOOTLESS
mountingC-face (NO base)
Mounting TypeC-Face Less Base, Round.
NEMA Frame56C
Net Weight29 lbs
Nominal Voltage208 VAC, 240 VAC
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length11.81 ", 11.98"
Overload ProtectionManual
Part Number110041.00
Phase1, 1 ph
Product SeriesGeneral Purpose
Product TypeGeneral Purpose, Capaci.
RotationSelective CCW, Reversib.
RPM1,800 RPM, 1700 - 1800,.
Service Factor1.15
Shaft Diameter0.625", 0.625, UL;CSA
Shaft Length1.88", 1.88
Shaft Size0.63 in Dia x 1.88 in L
Ship Weight32 lbs.
Special FeaturesCapacitor Start Motors
Speed (RPM)1725
Supplier:LEESON ELECTRIC CORPORA.
Thermal ProtectionManual
UPC:691720007600
Voltage110-120V, 208V, 230V, 1.
Volts115/208/230, 115/208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com110041371.01In StockLEESON371.0 @ 1
AmazonTPB00EP2PR9S419.161In Stock2Leeson419.16 @ 1
thumbzoomMRO Supply2525408513.731In StockLeeson513.73 @ 1
thumbzoomemotorpro.com110041.00579.241In StockLeeson32.0579.24 @ 1
thumbzoomDealers Electric110041.00662.91In StockLeeson32.0662.9 @ 1
thumbzoomZoroG2489469666.931In Stock5Leeson666.93 @ 1
thumbzoomGlobal IndustrialWBB221777675.01In StockLeeson675.0 @ 1
thumbzoomPurvis110041LEE704.221In StockLEESON704.22 @ 1
us.rs-online.com73397281714.381In StockLeeson714.38 @ 1
thumbzoommotorsandcontrol.comLE-110041.00728.14185Leeson Electric29.0728.14 @ 1
thumbzoomGalco110041.00-LEES733.691In StockLeeson29.0733.69 @ 1
kscdirect.comLEE 110041.00760.971In StockLEESON ELECTRIC CORPORATION760.97 @ 1
thumbzoomcbtcompany.com110041.00776.941In StockLeeson Electric776.94 @ 1
kirbyrisk.com2929017786.781In StockLeeson786.78 @ 1
thumbzoomWalker Industrial110041-00825.231In Stock17Leeson825.23 @ 1
thumbzoompumpproducts.com110041.00987.761In StockLeeson987.76 @ 1
thumbzoomRaptor SuppliesAJ2PZU1005.2127541In StockLEESON1005.212754 @ 1
