Leeson 110144.00

B00EPKL3T8

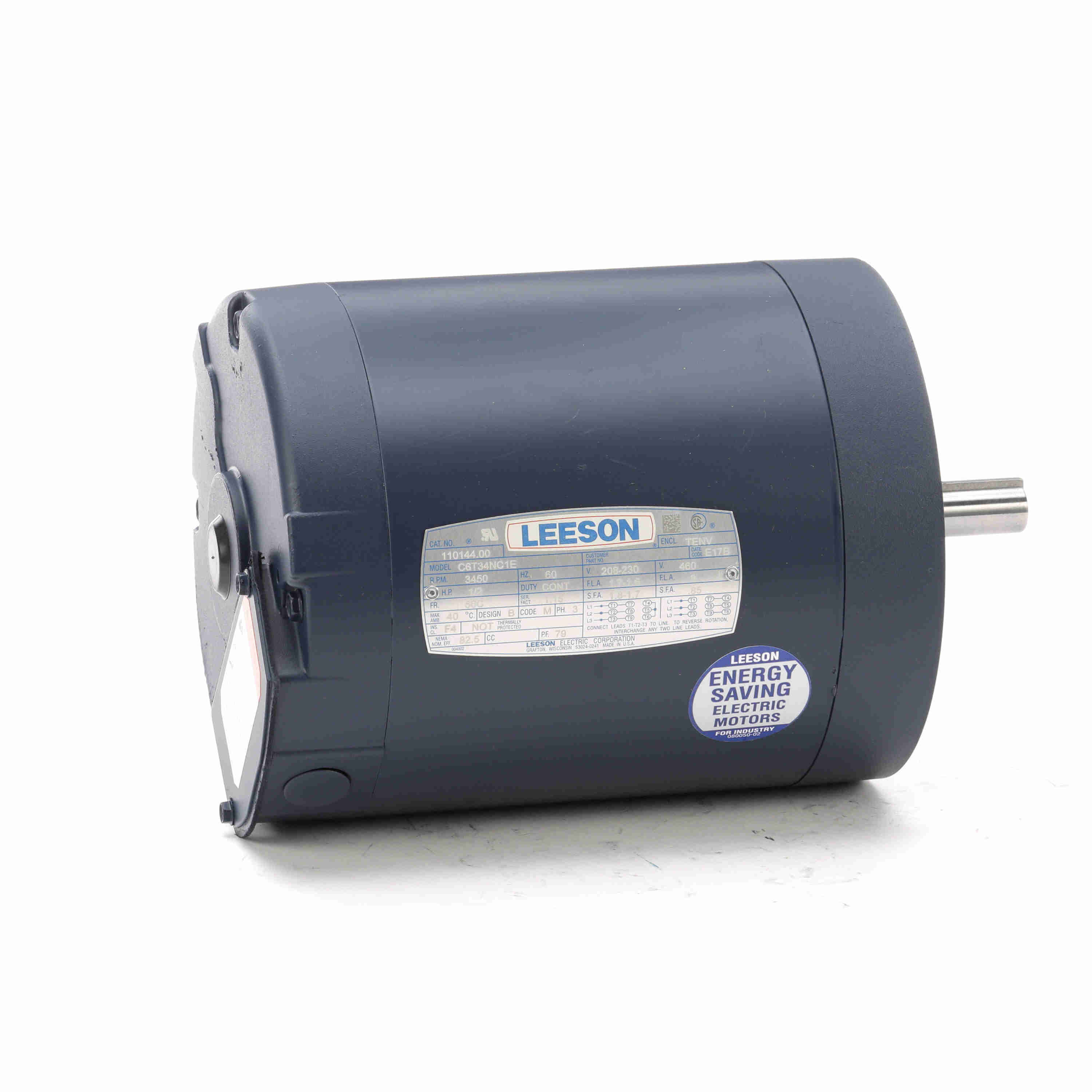

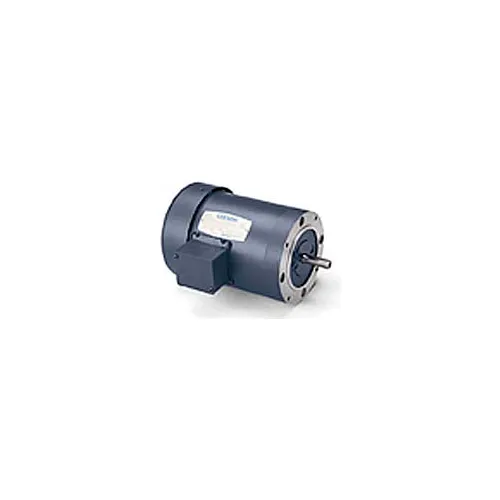

Leeson 110144.00 General Purpose C Face Motor, 3 Phase, 56C Frame, Round Mounting, 1/2HP, 3600 RPM, 208-230/460V Voltage, 60Hz Fequency

Leeson 110144.00 General Purpose C Face Motor, 3 Phase, 56C Frame, Round Mounting, 1/2HP, 3600 RPM, 208-230/460V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Alternate Mfr Part Numb.C6T34NC1E
Amperage Rating1.7 to 1.6/0.8 A
Amps1.7-1.6/0.80
Application TypeCompressor Motors, Fan .
ApprovalsCSA, UL
Bearing TypeBall
BearingsBall
CategoryElectric Motor
Class/GroupC6T34NC1
CompositionSteel
ConstructionRolled Steel
Country of Origin (subj.United States
CT Speed Range2:1
Current Rating1.7 to 1.6 ; 0.80 A
Description:NLA as stock model, rep.
Dimensions10.4 in L
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency82.5, 82.5 %, 82.5%
Efficiency %82.5 %
EnclosureTENV, Totally Enclosed .
Enclosure MaterialRolled Steel
Enclosure TypeTENV (Totally Enclosed .
Estimated Weight25.00
Family SeriesLeeson Motors, Three Ph.
FL Amps1.7-1.6/.8
FL Efficiency82.5
Frame56C
Frame MaterialRolled Steel
Frame RemarksFOOTLESS
Frequency60, 60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower0.5 hp, 1/2 hp
Horsepower Rating0.50 HP
HP0.50, 0.5, 1/2
Hz60
Insulation ClassClass F, F
Insulation TypeClass F
Item ConditionFACTORY NEW
Item Number110144.00
KW0.37
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number110144.00
MaterialRolled Steel
Maximum Ambient Tempera.40? C
MFG Part #:110144.00
Model NumberC6T34NC1
Motor Shell Length5.50"
MountingRound, FOOTLESS
mountingC-face (NO base)
Mounting TypeC-Face Less Base, Round.
NEMA Frame56C
Net Weight25 lbs
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Poles2
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length10.40", 10.4 "
Part Number110144.00
Phase3, 3 Phase, 3 ph
Product SeriesThree Phase C Face
Product TypeGeneral Purpose, Three .
RotationReversible
RPM3450 RPM, 3450, 3600, 3.
Service Factor1.15
Shaft Diameter0.625", 0.625, UL;CSA
Shaft Length1.88", 1.88
Shaft Size0.63 in Dia x 1.88 in L
Ship Weight28 lbs.
Special FeaturesService Factor - 1.15
Speed3450 RPM
Speed (RPM)3450
StandardsUL Recognized
Supplier:LEESON ELECTRIC CORPORA.
Supply Voltage208-230/460 VAC
TypeSquirrel Cage Induction.
UPC Code691720007945
UPC:691720007945
Voltage208-230/460, 208V, 230V.
Volts208/230/460, 208-230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com110144228.01In StockLEESON228.0 @ 1
AmazonTPB0773QZKB9295.321In Stock3Leeson Electric295.32 @ 1
thumbzoomMRO Supply2525437344.261In StockLeeson344.26 @ 1
thumbzoomapexindustrialautomation.com110144.00357.5152Leeson357.5 @ 1
thumbzoomemotorpro.com110144.00413.01In StockLeeson28.0413.0 @ 1
thumbzoomDealers Electric110144.00429.891In StockLeeson28.0429.89 @ 1
thumbzoomGlobal IndustrialWBB222496442.951In StockLeeson442.95 @ 1
us.rs-online.com72239377470.61In StockLeeson470.6 @ 1
thumbzoommotorsandcontrol.comLE-110144.00472.219Leeson Electric25.0472.2 @ 1
thumbzoomGalco110144.00-LEES475.881In StockLeeson25.0475.88 @ 1
kscdirect.comLEE 110144.00493.491In StockLEESON ELECTRIC CORPORATION493.49 @ 1
thumbzoomZoroG2493389517.741In Stock10Leeson517.74 @ 1
thumbzoomcbtcompany.com110144.00523.121In StockLeeson Electric523.12 @ 1
thumbzoomWalker Industrial110144-00535.171In Stock10Leeson535.17 @ 1
thumbzoomRaptor SuppliesAJ2QAR608.3300341In StockLEESON608.330034 @ 1
thumbzoompumpproducts.com110144.00640.561In StockLeeson640.56 @ 1
