Leeson 117130.00

B00EP2WI8Q

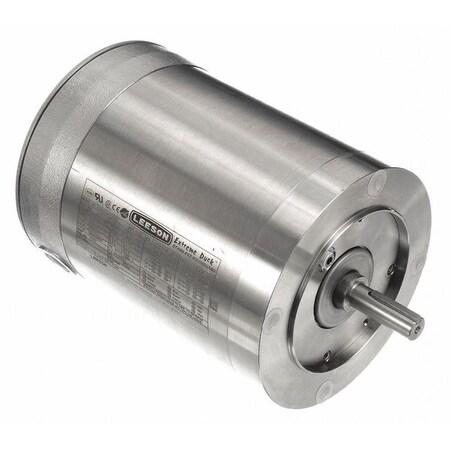

Leeson 117130.00 Extreme Duck Washguard Motor, 3 Phase, 56C Frame, Round Mounting, 1HP, 3600 RPM, 208-230/460V Voltage, 60/50Hz Fequency

Leeson 117130.00 Extreme Duck Washguard Motor, 3 Phase, 56C Frame, Round Mounting, 1HP, 3600 RPM, 208-230/460V Voltage, 60/50Hz Fequencyzoom

Attributes

Key Value
Amperage Rating2.6/1.3 A
Amps2.6/1.3
ApplicationChemical Processing
ApprovalsCSA, UL
Bearing TypeDouble Sealed, Ball
BearingsBall
Body Dia.6 9/16 in
CategoryElectric Motor
Class/GroupCZ6T34VC21
CompositionSteel
Conduit BoxOversized Stainless Ste.
ConstructionRolled Steel
Country of Origin (subj.United States
Description:..1HP..3450RPM.56.TENV..
Dimensions11.22 in L
Drain PlugsNone
Drive End Bearing Size6205
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
DutyContinuous
Duty CycleContinuous
Efficiency77, 77.0%
Efficiency %85.5 %
EnclosureTotally Enclosed Non-Ve.
Enclosure MaterialStainless Steel
Enclosure TypeTENV (Totally Enclosed .
EndshieldsStainless Steel
Estimated Weight47.00
Family SeriesLeeson Motors, Extreme .
FL Amps2.8-2.6/1.3&2.4/1.2
FL Efficiency85.5
Footnotes8, 11
Frame56C
Frame MaterialStainless Steel
Frame RemarksWashdown, Footless
Frequency60
Frequency Rating60 Hz
Full Load Amps2.8-2.6/1.3
Gross Weight0 lbs
Hertz60
Horsepower1 hp
HP1
Hz60, 60/50
IncludesFrame, Base, Conduit Bo.
Ins. ClassF
Insulation ClassClass F, F
Inverter RatedYes
ItemWashdown Motor
Item ConditionFACTORY NEW
Item Number117130.00
KW0.75
Length Less Shaft9 1/8 in
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number117130.00
MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
MFG Part #:117130.00
Model NumberCZ6T34VC21
Motor ApplicationWashdown
Motor BearingsBall
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Nonven.
Motor Frame MaterialStainless Steel
Motor Mounting TypeFace
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Shell Length6.00"
Motor Thermal ProtectionNone
MountingRound, Footless
mountingC-face (NO base)
Mounting TypeRound/C-Face/Footless, .
Nameplate RPM3,450
NEMA DesignB
NEMA Frame56C
Net Weight47 lbs
Nominal Efficiency77.0%
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Poles2
Number of Speeds1
Opp. Drive End Bearing .6205
Opp. Drive End Bearing .Ball
Overall Length11.22", 11 in, 10.97 "
Part Number117130.00
Phase3, 3 ph, Three
Product SeriesExtreme Duck
Product TypeWashdown Duty, Three Ph.
RotationReversible
RPM3450, 3600, 3400 - 3600.
RPM Range3,001-3,600
Service Factor1.15
Shaft Dia.5/8 in
Shaft Diameter0.625", 0.625, UL;CSA
Shaft Length1.88", 1.88, 1 7/8 in
Shaft Material303 Stainless Steel
Shaft Size0.63 in Dia x 1.88 in L
Ship Weight46 lbs.
Speed3450 rpm
Speed (RPM)3450
StandardsUL Recognized (E57948),.
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
UPC:691720367537
Voltage208V, 230V, 460V, 208-2.
Voltage Compatibility200-230V AC, 208-230V A.
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomemotorpro.com117130.00353.241In StockLeeson46.0353.24 @ 1
kscdirect.comLEE 117130.00399.81In StockLEESON ELECTRIC CORPORATION399.8 @ 1
thumbzoommotorsandcontrol.comLE-117130.00402.691In StockLeeson Electric47.0402.69 @ 1
thumbzoomGalco117130.00-LEES421.281In StockLeeson47.0421.28 @ 1
thumbzoomWalker Industrial117130-00456.3824In Stock17Leeson456.38 @ 24
thumbzoomcbtcompany.com117130.00487.131In StockLeeson Electric487.13 @ 1
thumbzoomZoroG2793305939.441In Stock20Leeson45.78939.44 @ 1
thumbzoomDealers Electric117130.00988.971In StockLeeson46.0988.97 @ 1
thumbzoomRaptor SuppliesAE2MBW2053.4881771In StockLEESON2053.488177 @ 1
