Lovejoy 68514424517

B013T0P6B0

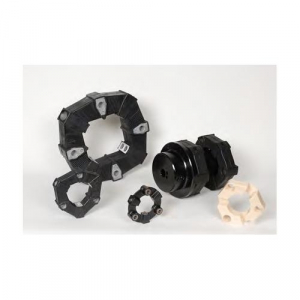

Lovejoy 68514424517 LF Series LF 250 Flange Hub, 1.57" Rough Stock Bore, 3.94" Length Through Bore, 6.3" OD

Lovejoy 68514424517 LF Series LF 250 Flange Hub, 1.57" Rough Stock Bore, 3.94" Length Through Bore, 6.3" ODzoom

Attributes

Key Value
Allowable Continuous Vi.11000.00 in ?lb
Bore TypeRough Stock Bore
ColorMetallic
Coupling SizeLF250
Cubic in ches705.35614 in ^3
DescriptionLF250 HUB FLNG 1.57 RSB
Description:LF250-HUB FLNG-1.57 RSB;
Dimension FD6.300 in 160.02 mm
Dimension FOD13.380 in
Dynamic Torsional Stiff.592900.00 in ?lb /rad
Hub Diameter6.300 in 160.00 mm
Length thru Bore3.940 in 100.00 mm
ManufacturerLOVEJOY INC
Max. Angular Misalignme.2.00 ?
Max. Bore (Dimensions I.5.000 in 127.00 mm
Max. Parallel Misalignm.0.080 in 2.00 mm
Max. Speed3000 rpm
MFG Part #:68514424517
Min. Bore (Dimensions I.1.630 in 40.00 mm
Nominal Torque26500.00 in ?lb
Operating Temperature R.-40 to 194 ?F
Rough Stock Bore Size1.570 in
Securing Torque for Mou.77400.00 in ?lb
Shore Hardness60A
Speed3000.00 rpm
Static Angular Stiffness600.00 in ?lb /deg
Static Axial Stiffness6570.00 lb/in
Static Radial Stiffness23400.00 lb/in
StyleFlange
Supplier:LOVEJOY INC
Thread (Dimension T)M20
TypeTorsional
UPC:685144245175
Weight72.00 lb
Wind-Up Angle at Max. T.7.50 ?
Wind-Up Angle at Nomina.3.00 ?

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMegadepot685144245171582.01In StockLovejoy72.01582.0 @ 1
thumbzoomusmegastore.com685144245171582.01In StockLovejoy72.01582.0 @ 1
thumbzoomheavydutydepot.com685144245171582.01In StockLovejoy1582.0 @ 1
AmazonSCB013T0P6B01691.871In StockLovejoy1691.87 @ 1
kscdirect.comLOV 685144245172143.341In StockLOVEJOY INC2143.34 @ 1
thumbzoommidwestapplianceparts.com68514424517-LJ-P2421.11In StockLovejoy2421.1 @ 1
Airline HydraulicsLOVEJOY 685144245173349.951In StockLOVEJOY3349.95 @ 1
