Marathon Electric B200

B007ZQLB50

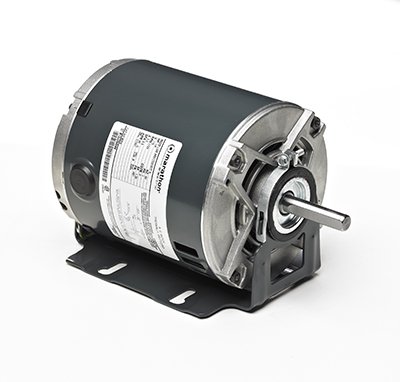

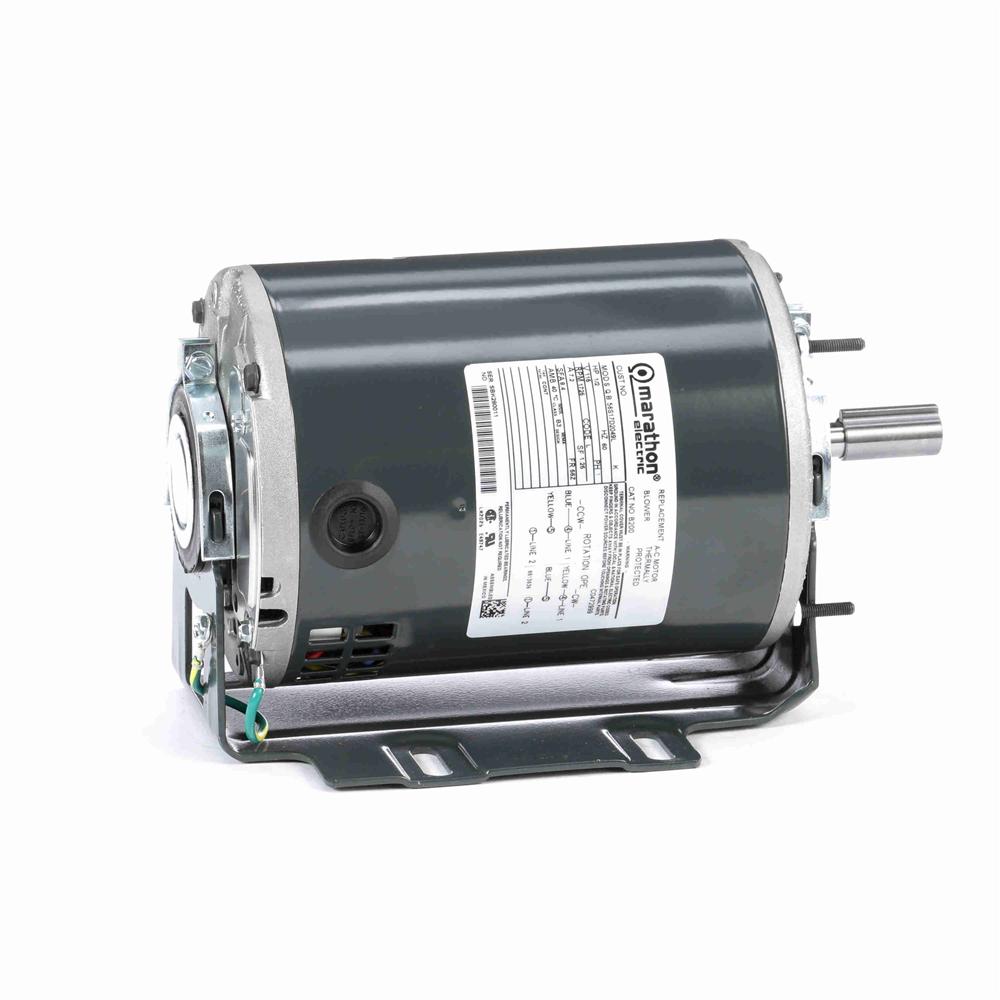

Marathon B200 56Z Frame Open Drip Proof 56S17D2049 Belt Drive Motor, 1/2 hp, 1725 RPM, 115 VAC, 1 Split Phase, 1 Speed, Ball Bearing, Resilient Ring Mount

Marathon B200 56Z Frame Open Drip Proof 56S17D2049 Belt Drive Motor, 1/2 hp, 1725 RPM, 115 VAC, 1 Split Phase, 1 Speed, Ball Bearing, Resilient Ring Mountzoom

Attributes

Key Value
Alternate Mfr Part Numb.056S17D2049
Amps7.2
ApprovalsCSA, UR
Bearing TypeBall
BearingsBall
CompositionRolled Steel
Duty CycleContinuous
Efficiency0.66
Efficiency %66 %
EnclosureDrip Proof
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof)
Family SeriesMarathon Electric Motors
Frame56Z
Frequency60 Hz
Gross Weight0 lbs
Horsepower1/2 hp
HP1/2
Hz60
Insulation ClassB
Item NumberB200
Kilowatts0.37 kW
ManufacturerMarathon Electric
Manufacturer Model #056S17D2049
Manufacturer Part Number056S17D2049
Maximum Ambient Tempera.40? C
Motor Diameter6-1/2"
Motor Shell Length6.5"
MountingBase/Stud
Mounting OrientationHorizontal
Mounting TypeResilient Base - Extend.
NEMA Frame56Z
Net Weight18 lbs
Number of Poles4
Number of Speeds1
Overall Length10.47", 10.47 "
Phase1
Product TypeSplit Phase
RotationReversible
RPM1725, 1,725 RPM
Service Factor1.25
Shaft Diameter0.63 ", 5/8"
Shaft Length1.97"
Ship Weight19 lbs.
Thermal ProtectionAutomatic
Voltage (AC)115 VAC
Volts115

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalcoB200-MARA274.090In StockMarathon Electric18.0274.0 @ 90
thumbzoomemotorpro.comB200298.131In StockMarathon19.0298.13 @ 1
us.rs-online.com72650128311.941In StockMarathon Motors311.94 @ 1
thumbzoomGuardianMARSB200379.021In StockMarathon379.02 @ 1
