Marathon Electric Y543A

B088BFL9NL

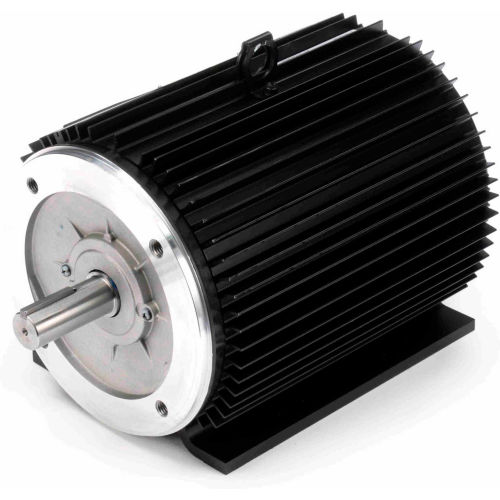

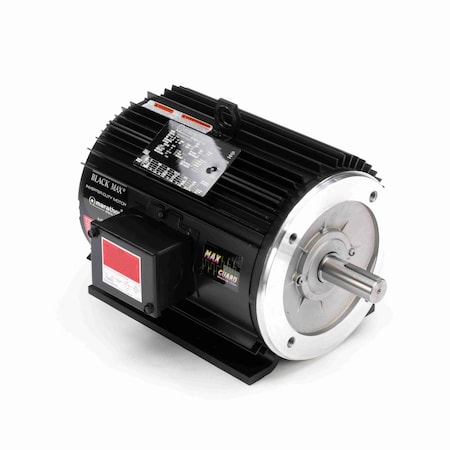

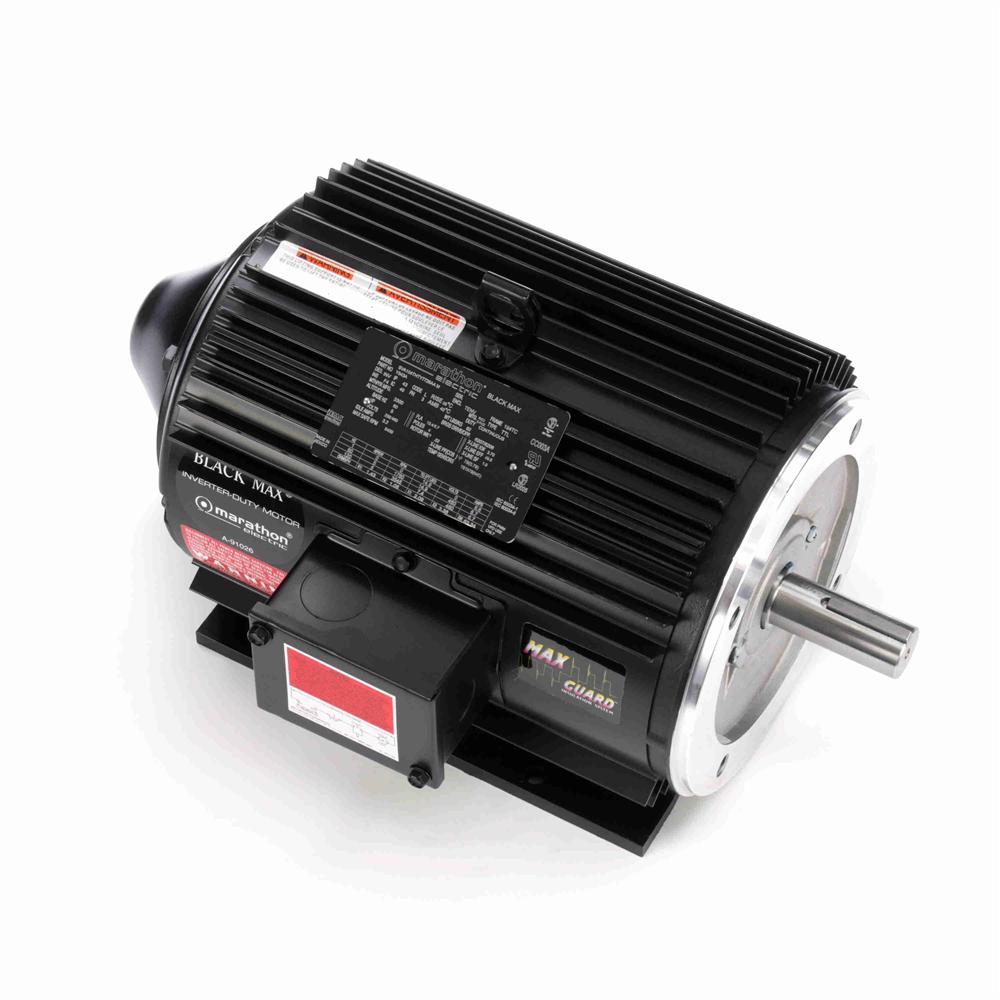

Marathon,5 HP Variable Speed Motor, 3 Phase, 1800 RPM, 230/460 V, 184TC Frame, TENV

Marathon,5 HP Variable Speed Motor, 3 Phase, 1800 RPM, 230/460 V, 184TC Frame, TENVzoom

Attributes

Key Value
Alternate Mfr Part Numb.184THTY7726
Amps13.4/6.7
ApprovalsCE, CSA, UR
Bearing TypeBall
BearingsBall
CompositionAluminum
Current Rating13.4 ; 6.7 A
Duty CycleContinuous
Efficiency0.895, 89.5
Efficiency %89.5 %
EnclosureTotally Enclosed Non-Ve.
Enclosure MaterialAluminum
Enclosure TypeTENV (Totally Enclosed .
Family SeriesMarathon Electric Motor.
Frame184TC
Frequency60 Hz
Gross Weight0 lbs
Horsepower5 hp
Horsepower Rating5 hp
HP5
Hz60
Insulation ClassF
Insulation TypeClass F
Item NumberY543A
Kilowatts3.7 kW
ManufacturerMarathon Electric
Manufacturer Model #184THTY7726
Manufacturer Part Number184THTY7726
Maximum Ambient Tempera.40? C
Motor Shell Length11"
MountingBase
Mounting OrientationHorizontal
Mounting TypeRigid, Rigid Base
NEMA Frame184TC
Net Weight0 lbs
Nominal Voltage240 VAC, 480 VAC
Number of Poles4
Number of Speeds1
Overall Length17.69 ", 17.69"
Phase3, 3 Phase
Product SeriesNEMA Motors;Variable Sp.
Product TypeThree Phase
RotationReversible
RPM1760 RPM, 1760, 1700 - .
Service Factor1
Shaft Diameter1-1/8", 1.13 "
Shaft Length2.62"
Ship Weight92 lbs.
Special FeaturesService Factor - 1
StandardsUL Recognized
Supply Voltage230 VAC ; 460 VAC
TypeSquirrel Cage Inverter .
UPC Code722856132451
Voltage230/460
Voltage (AC)230 VAC, 460 VAC
Volts230, 460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comY543A1079.01In StockMARATHON1079.0 @ 1
AmazonTPB088BFL9NL1241.571In Stock2Marathon1241.57 @ 1
thumbzoomMRO Supply23035111301.871In StockMarathon Electric1301.87 @ 1
thumbzoomapexindustrialautomation.comY543A1418.711524Marathon1418.71 @ 1
thumbzoomktool.netY543A1470.331In StockMarathon Motors1470.33 @ 1
thumbzoomGalcoY543A-MARA1475.451In StockMarathon Electric1475.45 @ 1
thumbzoomAutomation DirectY543A1768.013Marathon92.11768.0 @ 1
thumbzoomZoroG25308481773.3911Marathon1773.39 @ 1
us.rs-online.com722412661791.6512Marathon Motors1791.65 @ 1
thumbzoomemotorpro.comY543A1798.211In StockMarathon92.01798.21 @ 1
thumbzoomcbtcompany.comY543A1945.271In StockMarathon Electric Motors1945.27 @ 1
thumbzoomNational Supply NetworkB27768131970.11In StockMARATHON MOTORS1970.1 @ 1
thumbzoomGlobal IndustrialWBB27768131972.01In StockMarathon1972.0 @ 1
industrialmotors.comY543A2107.8126MARATHON ELECTRIC2107.8 @ 1
kirbyrisk.com31392402116.491In StockMarathon2116.49 @ 1
