Martin 3 5V 1500 E

B004BJ2DQ0

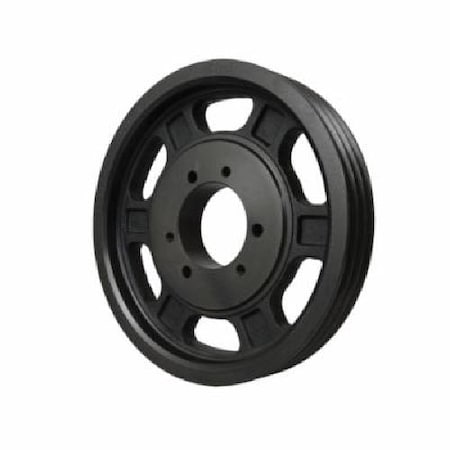

Martin 3 5V 1500 E Hi-Cap QD Sheave, 5V Belt Section, 3 Grooves, E Bushing required, Class 30 Gray Cast Iron, 15" OD, 1654 max rpm, 14.9" Pitch Diameter

Martin 3 5V 1500 E Hi-Cap QD Sheave, 5V Belt Section, 3 Grooves, E Bushing required, Class 30 Gray Cast Iron, 15" OD, 1654 max rpm, 14.9" Pitch Diameterzoom

Attributes

Key Value
Belt Cross Section5V
belt section size:5V
Bore TypeBushed
bore type:QD Bushed
Bushed ForE
bushing bore range:0.8750 to 3.3125 in
Bushing Maximum Bore Si.2.875 "
Bushing MountReverse
bushing series:E
Bushing StyleQD
Length Through Bore2.625 "
manufacturer upc number:697950113999
MaterialCast Iron
material:Cast Iron
mounting type:Reversible
Number of Grooves3
Outer Diameter15 in
Outside Dia15.000"
overall width:2-3/8 in
Pitch Diameter14.9 "
pitch diameter:14.9000 in
pulley construction:Arm / Spoke
Sheave ConstructionArm / Spoke
sheave drawing type:C
Sheave Face Width2.375 "
Sheave TypeHigh Capacity
UPC Code697950113999
Weight32 lbs
weight:44 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonB004BJ2DQ0313.571In StockMartin313.57 @ 1
thumbzoomindustrialzone.com3 5V 1500 E378.781In StockMartin1.0378.78 @ 1
thumbzoommotionindustries.com00706834415.461In StockMartin415.46 @ 1
us.rs-online.com72479566420.121In StockMartin Sprocket & Gear32.0420.12 @ 1
thumbzoomMRO Supply254859438.591In StockMartin Sprocket438.59 @ 1
factorysupplyoutlet.comYO92MC453.721In Stock25MARTIN453.72 @ 1
thumbzoomPurvis3 5V 1500 E458.121In StockMartin458.12 @ 1
thumbzoomapexindustrialautomation.com3 5V 1500 E476.721In StockMartin Sprocket476.72 @ 1
cbtcompany.com3 5V 1500 E506.071In StockMartin Sprocket & Gear506.07 @ 1
thumbzoomZoroG3379121554.991In StockMartin Sprocket & Gear554.99 @ 1
