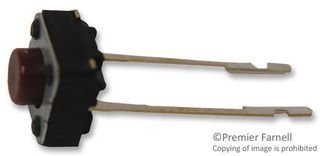

PANASONIC EVQ-21405R SWITCH, TACTILE, SPST-NO, 20mA, 15VDC (10 pieces)

mpnEVQ-21405R
brandname: Panasonic
manufacturername: Panasonic

PANASONIC EVQ-21405R SWITCH, TACTILE, SPST-NO, 20mA, 15VDC (10 pieces)

PANASONIC EVQ-21405R SWITCH, TACTILE, SPST-NO, 20mA, 15VDC (10 pieces)

zoom

PackageQuantity: 10
Manufacturer: PANASONIC
Label: PANASONIC

Attributes

Key	Value
Above PC Board Height	5.0 mm
Actuator Color	Red
Actuator Colour	Red
Actuator Height	5 mm
Actuator Length	1.6mm
Actuator Operating Angle	Top Actuated
Actuator Travel Distance	0.25 mm
Actuator Type	Button, Standard
Brand	Panasonic
Contact Configuration	Single Pole Single Thro.
Contact Current Rating	20 mA @ 15 V dc
Contact Form	SPST-NO
Contact Rating	0.02 A
Current Rating	20 mA
Height	5mm
Illumination	Non-Illuminated
Maximum Operating Tempe.	+70?C
Mechanical Life	100000Cycles
Minimum Operating Tempe.	-20?C
Mounting Dimension	6.0 x 6.0 mm
Mounting Type	Through Hole
Operating Force	130 gf, 1.3 N
Operating Temperature R.	-20 ? +70?C
Operation	1.3 N Vertical force
Outline	6.00mm x 6.00mm
Packaging	Tape & Reel
Series	EVQ2 Series
Switch Function	Off-Mom
Switch Operation	Momentary
Terminal Type	Solder, Through Hole
Termination	PCB Pins
Type	Tactile
Voltage Rating	15 VDC

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	RS Delivers	811-3573	0.1908	100	100		Panasonic		0.1908 @ 100
	us.rs-online.com	70270515	0.2668	100	100		Panasonic Electronic Components		0.2668 @ 100
	MCM Electronics	P-EVQ21405R	2.15	1	100		Panasonic		2.15 @ 100
