- mpnPV10-10LF-D
- brandname: Panduit Corp
- manufacturername: Panduit Corp

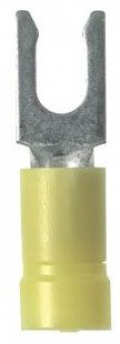

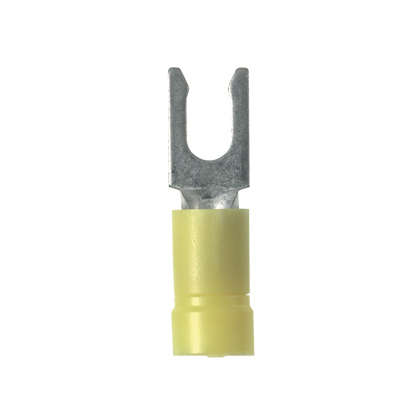

Panduit PV10-10LF-D Locking Fork Terminal, Vinyl Insulated, Funnel Entry, Butted Seam, 12 - 10 AWG, #10 Stud (500-Pack)
- Brand: Panduit
- PartNumber: PV10-10LF-D
- Model: PV10-10LF-D
- Size: 500-Pack
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| accessory type | Panduit?? |
| Allowable Gauge Range | 12 - 10 |
| amperage rating | 1 1/4 |
| Application | Panduit??? |
| Approvals | CSA, UL |
| Base Product Number | PV10 |
| Brand | PANDUIT |
| Carton | 500 |
| Category | Connectors, Interconnec. |
| Category Description | Terminals |
| class | 1 1/4 |
| Classification | Terminals |
| Color | Yellow |
| Conductor Material | Copper |
| connection | Funnel Entry |
| Contact Finish | Tin |
| Contact Material | Copper |
| Country of Origin (subj. | Unknown |
| Description | Locking Term Bulk, CONN. |
| Detailed Description | Yellow 10 Stud Spade Te. |
| Digi-Key Part Number | 298-15598-ND |
| dimensions | 8.66 |
| Enclosure | Fork shape |
| extra long description | PAN PV10-10LF-D Pan-Ter. |
| Family Series | Panduit Terminals, Pan-. |
| Features | Serrated Termination |
| Finish | Tin Plated |
| Gross Weight | 2.15 lbs |
| GTIN | 00074983808175 |
| Insulated | Insulated |
| Insulation | Insulated |
| insulation | PVC |
| Insulation Color | Yellow |
| Insulation Diameter | 0.225" (5.72mm) |
| Insulation Material | Vinyl |
| Item Number | PV10-10LF-D |
| Length - Overall | 1.040" (26.42mm) |
| Length - Ring Center to. | - |
| Length - Termination | - |
| Long Description | Fork Terminal, Vinyl In. |
| Made in USA | yes |
| Manufacturer | Panduit Corp, PANDUIT |
| Manufacturer Part Number | PV10-10LF-D |
| Manufacturer Product Nu. | PV10-10LF-D |
| Manufacturer Standard L. | 2 Weeks |
| Manufacturers Part Numb. | PV1010LFD |
| Material | Pan-Steel??, Vinyl, Cop. |
| Material - Insulation | Vinyl |
| Max Temp | 221 ?F |
| Maximum Operating Tempe. | +221 ?F |
| Mfr | Panduit Corp |
| Mounting | 0.31 |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Package | Bulk |
| Package Quantity | 500 |
| package quantity | 500 CT;3000 PK |
| Plating Material | Tin |
| Product Series | Pan-Term Terminals |
| Product Status | Active |
| Product Type | Fork Terminal |
| RoHS Compliant | yes |
| Series | Pan-Term? |
| Short Description | type pv-lf Fork Terminal |
| Size | #10 |
| standard | C22.2 No.65; UL486A-486. |
| Stud/Tab Size | 10 Stud |
| sub brand | Panduit??? |
| Temperature Rating | 221 |
| Terminal Material | Copper |
| Terminal Type | Spade/Fork - Locking, S. |
| Termination | Crimp |
| Tongue Inside Opening | 0.190" (4.83mm) |
| Type | Locking, Fork Terminal,. |
| UNSPSC | 39121409 - Wire connect. |
| UPC | 074983808175 |
| UPC Code | 074983808175 |
| Voltage Rating | 600 |
| Volts | 600 V |
| Volts AC | 600 |
| Weight | 2.15 lb |
| Weight per each | 2.15 |
| Width - Outer Edges | 0.340" (8.64mm) |
| Wire Gauge | 10-12 AWG |
| Wire Size | #10, 12-10 AWG |
| Wire Size (AWG) | 10 AWG, 11 AWG, 12 AWG |
| Wire Strip Length | 0.313 " |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | PV10-10LF-D | 0.217 | 1 | 500 | | PANDUIT | | 0.217 @ 500 |
 | French Gerleman | PANDPV1010LFD | 0.32 | 1 | 500 | | Panduit | | 0.32 @ 500 |
 | Galco | PV10-10LF-D-PNDT | 0.33 | 500 | 500 | | Panduit | 2.15 | 0.33 @ 500 |
 | Elliott Electric | PV1010LFD | 0.34193 | 1 | 500 | | Panduit | 2.15 | 0.34193 @ 500 |
| us.rs-online.com | 71263957 | 0.37987 | 10 | 500 | | Panduit | | 0.37987 @ 500 |
 | Platt.com | 0615940 | 0.39 | 1 | 500 | | Panduit | | 0.39 @ 500 |
| Airline Hydraulics | PANDUIT PV10-10LF-D | 0.4 | 1 | 500 | | Panduit Corp | | 0.4 @ 500 |
 | Newark | 48AC9763 | 0.465 | 500 | 500 | | PANDUIT | | 0.465 @ 500 |
 | Digi-Key | 452031 | 0.46988 | 1 | 10237 | | Panduit Corp | | 0.46988 @ 500 |
 | Zoro | G5722404 | 95.25 | 5 | 500 | 35 | Panduit | | 95.25 @ 500 |
| amerisponse.com | 786252 | 133.38 | 1 | 500 | | Panduit | | 133.38 @ 500 |
 | Carlton Bates Company | 07498380817 | 135.0 | 1 | 500 | | PANDUIT | | 135.0 @ 500 |
 | alldataresource.com | PAN-PV10-10LF-D | 158.98 | 1 | 500 | | Panduit | | 158.98 @ 500 |
 | gordonelectricsupply.com | PV10-10LF-D | 175.5 | 1 | 500 | 12 | PANDUIT | | 175.5 @ 500 |
| steinerelectric.com | 6876 | 327.07 | 1 | 500 | | Panduit | | 327.07 @ 500 |
 | turtle.com | PAN PV10-10LF-D | 391.56 | 1 | 500 | | Panduit | | 391.56 @ 500 |
