1719341

B00M1WCRYW

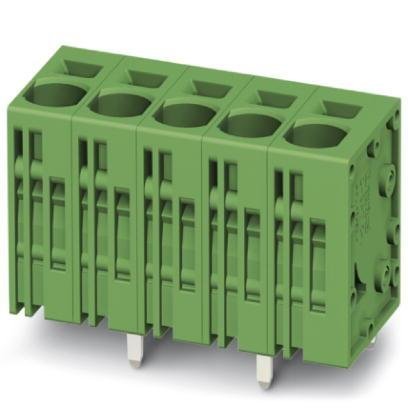

Fixed Terminal Blocks 41 A 800 V 5-pos GRN PC terminal block (1 piece)

Fixed Terminal Blocks 41 A 800 V 5-pos GRN PC terminal block (1 piece)zoom

Attributes

Key Value
Alternate Mfr Part Numb.SPT 5/ 5-V-7 5-ZB
Alternate Part No.651-1719341
ApprovalsUL Recognized ; SEV ; c.
BrandPhoenix Contact
CategoryConnectors, Interconnec.
Clamp Material - Plating-
ColorGreen
ColourGreen
Contact Material - Plat.-
Current35 A
Current Rating41 A, 41A
Features-
GenderFemale
Hole Diameter2.1 mm
Housing MaterialPolyamide (PA), Nylon
Insulating Material Gro.I
ManufacturerPhoenix Contact
Manufacturer Part No.1719341
MaterialPolyamide
Mating OrientationVertical with Board
Maximum Load Current41 A
MfrPhoenix Contact
Mounting TypeThrough Hole
Number of Contacts5
Number Of Contacts5
Number of Levels1
Number of Positions5
Operating Temperature-
PackageBulk
Part # AliasesSPT_5/_5-V-7,5-ZB SPT55.
Pin Dimensions1.7 x 0.8 mm
Pin Spacing14 mm (0.55 in)
Pitch7.5 mm, 7.5mm, 0.295" (.
Positions Per Level5
Product CategoryFixed Terminal Blocks
Product StatusActive
Screw Material - Plating-
Screw Thread-
SeriesSPT 5/ 5-V-7.5-ZB, COMB.
Stripping Length15 mm
TerminationPush-In
Termination MethodSpring Cage
Termination StyleThrough Hole
Torque - Screw-
TradenameCOMBICON Power
TypeTerminal, PCB Terminal .
Unit Weight450 g
UPC Code4046356141444
Voltage600 V
Voltage Rating1000 V, 1 kV
Wire Gauge8-24 AWG
Wire Gauge Max8
Wire Gauge Min24
Wire Gauge Range24-8
Wire Size8 AWG
Wire TerminationScrewless - Spring Cage.
Wire Termination TypePush-In

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
electricautomationnetwork.comSPT 5/ 5-V-7,5-ZB5.741In StockPHOENIX_CONTACT5.74 @ 1
Sager Electronics17193418.2350In StockPhoenix Contact8.23 @ 50
Onlinecomponents.com17193418.381In StockPhoenix Contact8.38 @ 1
Radwell17193418.5750In StockPHOENIX CONTACT8.57 @ 50
Mouser651-17193419.21155Phoenix Contact9.21 @ 1
MRO Stop75303453010.91In StockPhoenix Contact10.9 @ 1
Airline HydraulicsPHOENIX 171934111.671In StockPhoenix Contact11.67 @ 1
us.rs-online.com7107294812.2150In StockPhoenix Contact12.21 @ 50
Digi-Key360620314.161In StockPhoenix Contact14.16 @ 1
thumbzoomswatee.com171934115.0816Phoenix Contact15.08 @ 1
thumbzoomRS Delivers854-3094570.9241In StockPhoenix Contact570.924 @ 1
