- mpnDP7650 OHP
- brandname: Reelcraft
- manufacturername: Reelcraft

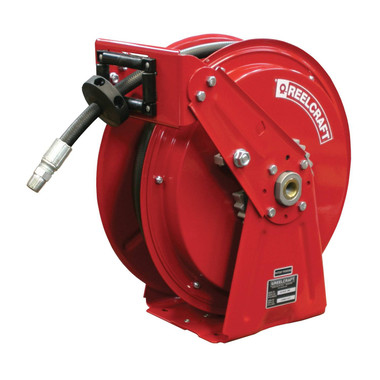

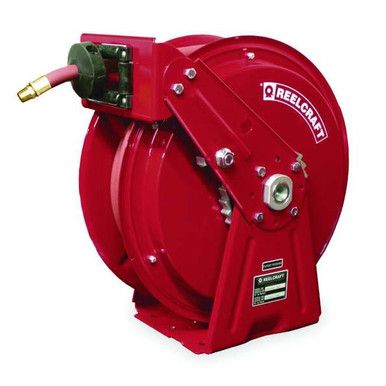

Spring Return Hose Reel,1/4" MNPT,50 ft
- Brand: Reelcraft
- PartNumber: DP7650 OHP
- Model: DP7650 OHP1
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Reelcraft
- Label: Reelcraft
Attributes
| Key | Value |
|---|
| Application | Grease |
| application: | Grease |
| Base Motion Type | Stationary |
| Bearing Construction | Permanently Lubricated |
| Bearings | Permanently Lubricated |
| Brand | Reelcraft Industries, R. |
| Color | Red |
| Corrosion-Resistant | Yes |
| Country of Origin (subj. | United States |
| Current Stock | 9 |
| Drive Type | Spring, Spring Return |
| Drive Type - Hose Reels | Spring Return |
| drive type: | Spring Retractable |
| Duty Rating | Heavy Duty |
| Enclosed | No |
| Enclosed Reel | No |
| Fasteners Included | No |
| Features | Interlocking Base, Non-. |
| Finish - Hose Reels | Powder Coated |
| Fitting Size | 1/4 in x 1/4 in |
| Fitting Type | NPT x NPT |
| For Dual Hose | No |
| Ft | 50' |
| Hose Capacity | 50 ft (3/8 in I.D.) |
| Hose Color | Black |
| Hose Cover Material | Synthetic Rubber |
| Hose End Configuration | 1/4 in MNPT |
| Hose End Size | 1/4" NPT (M) |
| Hose Ends | 1/4 in (M)NPT |
| Hose Fitting A Gender | Male |
| Hose Fitting A Material | Steel |
| Hose Fitting A Size | 1/4 in |
| Hose Fitting A Type | NPT |
| Hose Fitting B Gender | Male |
| Hose Fitting B Material | Steel |
| Hose Fitting B Size | 1/4 in |
| Hose Fitting B Type | NPT |
| Hose Included | Yes, Hose Included |
| Hose Inside Dia. | 3/8 in |
| Hose Inside Diameter | 3/8 in |
| hose inside diameter: | 3/8 in |
| Hose Length | 50 ft |
| hose length: | 50 ft |
| Hose Material | SAE 100 R2 T |
| Hose Outlet | 1/4 in (M)NPT |
| hose outlet: | 1/4 NPT - Male |
| Hose Outside Dia. | 3/4 in |
| Hose Outside Diameter | 0.73 in |
| Hose Reel Outlet | 3/8 in NPT(F) |
| Hose Reel Primary Appli. | Grease |
| Hose Reel Type | Ceiling, Floor, Vehicle. |
| Hose Tube Material | Synthetic Rubber |
| hose type: | SAE 100R2T two wire bra. |
| Hose/Cable? | Yes |
| Housing Material | Steel |
| I.D. | 3/8" |
| Includes | Hose; Bumper |
| Includes Hose | Yes |
| Includes Hose Stop | Yes |
| Includes Leader Hose | No |
| Inlet | 1/2 in (F)NPTF, 1/2" NP. |
| Inlet / Outlet | 1/2" NPT (F) / 3/8" NPT. |
| International Shipping | No |
| Item | Spring Return Hose Reel |
| Latch | Locking |
| Latch Type | Spring Loaded |
| Length | 50' |
| Material | Steel |
| Max Temp (?F) | 210 |
| Max. Pressure | 4,800 psi |
| Max. Temp. | 210 Degrees F |
| Maximum Operating Press. | 4,800 psi |
| Maximum Operating Tempe. | 210 Degrees F |
| maximum temperature: | 210 |
| Maximum Working Pressure | 4000 PSI |
| Media - Hose Reels | Grease |
| Minimum Operating Tempe. | 32 Degrees F |
| Mount Base Height | 9 in |
| Mount Base Width | 6 63/64 in |
| Mount Hole Diameter | 7/16 in |
| Mounting | Bench and Truck, Ceilin. |
| Mounting Hole Center to. | 7 in |
| Mounting Hole Center to. | 4 in |
| Mpn | DP7650 OHP |
| MPN | DP7650 OHP |
| Number of Guide Arms | Double Arm |
| Number of Mount Holes | 4 |
| O.D. | 0.73, 0.73" |
| Outlet | 3/8" NPT(F), 1/4 in (M). |
| Overall Dimensions | 16 1/2 in L x 8 in W x . |
| Overall Height | 17 in |
| Overall Length | 16 1/2 in |
| Overall Width | 8 in |
| Pedestal Type | Dual Pedestal |
| Pressure | 4800 psi |
| pressure / application: | High Pressure Grease |
| Product | Compact Dual Pedestal H. |
| Product Type | Simple product |
| Promotion Restriction | Not eligible for promot. |
| PSI | 4000 PSI |
| rated pressure: | 4800 psi |
| Reel Color | Red |
| reel color: | Red |
| Reel Diameter | 7 in |
| Reel Finish | Powder Coated |
| Reel Inlet | 1/2 in (F)NPT |
| reel inlet: | 1/2 NPT - Female |
| Reel Material | Carbon Steel |
| Reel Width | 8 in |
| Seal Type | Neoprene |
| Series | DP7000 |
| SKU | ZO-G2587356 |
| Speed Limited Retraction | No |
| Spiral Hose Guard | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 1/2 in |
| Swivel Inlet Thread Size | 1/2 in - 14 |
| Swivel Inlet Type | NPT |
| Swivel Material | Nickel Plated Steel |
| Swivel Outlet Gender | Male |
| Swivel Outlet Size | 1/2 in |
| Swivel Outlet Thread Si. | 1/2 in - 14 |
| Swivel Outlet Type | NPT |
| Twin Hose Compatible | No |
| Type | Compact Dual Pedestal |
| UPC | 699567005940, 699567009. |
| Weight | 55.000000, 65 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Amazon | B002E86RSU | 602.87 | 1 | In Stock | 85 | Reelcraft | | 602.87 @ 1 |
| Global Industrial | B250794 | 642.0 | 1 | In Stock | | Reelcraft | | 642.0 @ 1 |
| AmazonTP | B002E86RSU | 665.0 | 1 | In Stock | 5 | Reelcraft | | 665.0 @ 1 |
 | unbeatablesale.com | RLCRF2787 | 678.6 | 1 | In Stock | | REELCRAFT | | 678.6 @ 1 |
 | andersonprocess.com | DP7650 OHP | 744.0 | 1 | In Stock | 26 | Reelcraft | 55.0 | 744.0 @ 1 |
 | MRO Supply | 2208096 | 781.86 | 1 | In Stock | | Reelcraft | | 781.86 @ 1 |
 | rshughes.com | 699567-00594 | 867.0 | 1 | In Stock | 14 | Reelcraft Industries | | 867.0 @ 1 |
 | intlairtool.com | DP7650 OHP | 879.73 | 1 | In Stock | 49 | Reelcraft | 65.0 | 879.73 @ 1 |
 | Zoro | G2587356 | 886.73 | 1 | In Stock | | Reelcraft | 65.05 | 886.73 @ 1 |
 | simsupply.com | ZO-G2587356 | 962.15 | 1 | 9 | | Reelcraft | | 962.15 @ 1 |
 | motionindustries.com | 03516964 | 1045.17 | 1 | In Stock | | Reelcraft | | 1045.17 @ 1 |
 | National Supply Network | 66574039 | 1065.72 | 1 | In Stock | | Reelcraft | | 1065.72 @ 1 |
 | sustainablesupply.com | C1672953 | 1144.23 | 1 | In Stock | | Reelcraft | 65.05 | 1144.23 @ 1 |
| toolschest.com | RLCRF2787 | 1204.35 | 1 | In Stock | | Reelcraft | | 1204.35 @ 1 |
 | bscsource.com | DP7650OHP | 1433.69 | 1 | In Stock | | Reelcraft | | 1433.69 @ 1 |
