Renesas Electronics America R5F104EEANA#U0

B00AZV5Q9E

R5F104EEANA#U0

R5F104EEANA#U0zoom

Attributes

Key Value
ADC ChannelsADC Channels
ADC Resolution8 bit, 10 bit
ADCs1 (9 x 8 bit/9 x 10 bit)
Base Part NumberR5F104
BrandBrand
CategoryIntegrated Circuits (IC.
ConnectivityCSI, I?C, LINbus, UART/.
Core ProcessorRL78
Core Size16-Bit
Data Bus Width16bit
Data ConvertersA/D 9x8/10b
Device CoreDevice Core
Dimensions6.05 x 6.05 x 0.8mm
EEPROM Size4K x 8
Family NameFamily Name
Height0.8mm
Instruction Set Archite.CISC
Lead Free Status / RoHS.RoHS Compliant
LengthLength
Manufacturer Part NumberR5F104EEANA#U0
Manufacturer Standard L.20 Weeks
Maximum FrequencyMaximum Frequency
Maximum Number of Ether.0
Maximum Operating Tempe.+85 ?C
MfrRenesas Electronics Ame.
Minimum Operating Tempe.Minimum Operating Tempe.
Mounting TypeSurface Mount
Number of ADC Units1
Number of I/O28
Number of PWM Units0
Number of TimersNumber of Timers
Operating Temperature-40, -40?C ~ 85?C (TA)
Oscillator TypeInternal
PackageBulk
Package / Case40-WFQFN Exposed Pad
Package TypeHWQFN
PackagingTray
Part StatusActive
PeripheralsDMA, LVD, POR, PWM, WDT
Pin CountPin Count
Program Memory Size64KB (64K x 8), Program.
Program Memory TypeFlash
RAM Size5.5K x 8, RAM Size
SeriesRL78/G14
Speed32MHz
Standard Package490
StockStock
Supplier Device Package40-HWQFN (6x6)
Timer Resolution16bit
TimersTimers
Typical Operating Suppl.Typical Operating Suppl.
USB ChannelsUSB Channels
Voltage - Supply (Vcc/V.1.6V ~ 5.5V
Width6.05mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Digi-Key134606491.5494059405920267Renesas Electronics America Inc1.54940594059 @ 202
iodPartsR5F104EEANA#U02.0194901470Renesas2.019 @ 490

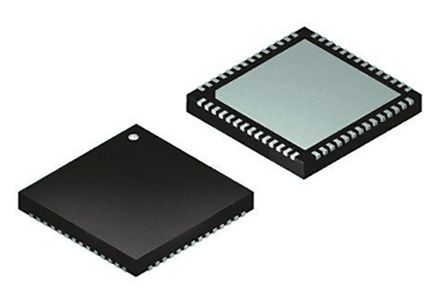

thumbzoomRS Delivers122-56733.816267Renesas Electronics3.816 @ 2
HotendaH23198434.2161Renesas Electronics America4.2 @ 1
